ASRock Z97 EXTREME6 Motherboard
Scan code: LN58404
Manufacturer code: Z97 EXTREME6
End Of Life
ASRock Z97 EXTREME6 Motherboard
ASRock Z97 EXTREME6 Intel Z97, S1150, DDR3, PCIe 3.0 (x16), Quad SLi / Quad CrossFireX, DisplayPort, DVI-I, HDMI, ATX
Scan code:
LN58404
Manufacturer code:
Z97 EXTREME6
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Product Overview
XXL Aluminum Alloy Heatsink Design
The extra large aluminum alloy heatsinks take away heat dramatically. As the MOSFETs and chipsets areas are well covered by these heatsinks to protect them from overheating, MOSFET and chipsets can perform with lower temperature, and your motherboard and system will be more stable and reliable.
Premium Alloy Choke
The new generation alloy chokes effectively increase up to 90% saturation current and feature a highly magnetic and heat resistant design, making the motherboard more efficient, stable and reliable.
Dual-Stack MOSFET for CPU Power
Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 m?, so the power supply for the CPU Vcore is more efficient.
Nichicon 12K Platinum Caps
Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Platinum Caps that offer 20% longer lifespans and provide more stability and reliability. Features • ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Dual-Stack MOSFET (DSM)
- NexFET™ MOSFET
- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB
• Supports 5th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
• Supports New 4th and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
• Digi Power, 12 Power Phase design
• Supports Dual Channel DDR3 3200+(OC), 15? Gold Contact in DIMM Slots
• 2 PCIe 3.0 x16, 1 PCIe 2.0 x16, 2 PCIe 2.0 x1, 1 mini-PCIe, 15? Gold Contact in VGA PCIe Slot (PCIE2)
• Supports AMD Quad CrossFireX™ and NVIDIA® Quad SLI™
• Graphics Output Options: DVI-I, HDMI, DisplayPort
• 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports Purity Sound™ 2 & DTS Connect
• Dual LAN: 1 Intel® Gigabit LAN, 1 Realtek Gigabit LAN
• 1 SATA Express, 10 SATA3, 1 eSATA, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen2 x2 & SATA, Supports 30mm, 42mm, 60mm, 80mm, 110mm M.2 devices), 10 USB 3.0 (4 Front, 6 Rear), 5 USB 2.0 (4 Front, 1 Vertical Type A)
• 1 COM Port Header, 1 Thunderbolt™ AIC Connector
• Supports ASRock HDD Saver Technology, Full Spike Protection, ASRock Cloud, APP Shop, Full HD UEFI
The extra large aluminum alloy heatsinks take away heat dramatically. As the MOSFETs and chipsets areas are well covered by these heatsinks to protect them from overheating, MOSFET and chipsets can perform with lower temperature, and your motherboard and system will be more stable and reliable.
Premium Alloy Choke
The new generation alloy chokes effectively increase up to 90% saturation current and feature a highly magnetic and heat resistant design, making the motherboard more efficient, stable and reliable.
Dual-Stack MOSFET for CPU Power
Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 m?, so the power supply for the CPU Vcore is more efficient.
Nichicon 12K Platinum Caps
Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Platinum Caps that offer 20% longer lifespans and provide more stability and reliability. Features • ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Dual-Stack MOSFET (DSM)
- NexFET™ MOSFET
- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB
• Supports 5th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
• Supports New 4th and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
• Digi Power, 12 Power Phase design
• Supports Dual Channel DDR3 3200+(OC), 15? Gold Contact in DIMM Slots
• 2 PCIe 3.0 x16, 1 PCIe 2.0 x16, 2 PCIe 2.0 x1, 1 mini-PCIe, 15? Gold Contact in VGA PCIe Slot (PCIE2)
• Supports AMD Quad CrossFireX™ and NVIDIA® Quad SLI™
• Graphics Output Options: DVI-I, HDMI, DisplayPort
• 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports Purity Sound™ 2 & DTS Connect
• Dual LAN: 1 Intel® Gigabit LAN, 1 Realtek Gigabit LAN
• 1 SATA Express, 10 SATA3, 1 eSATA, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen2 x2 & SATA, Supports 30mm, 42mm, 60mm, 80mm, 110mm M.2 devices), 10 USB 3.0 (4 Front, 6 Rear), 5 USB 2.0 (4 Front, 1 Vertical Type A)
• 1 COM Port Header, 1 Thunderbolt™ AIC Connector
• Supports ASRock HDD Saver Technology, Full Spike Protection, ASRock Cloud, APP Shop, Full HD UEFI

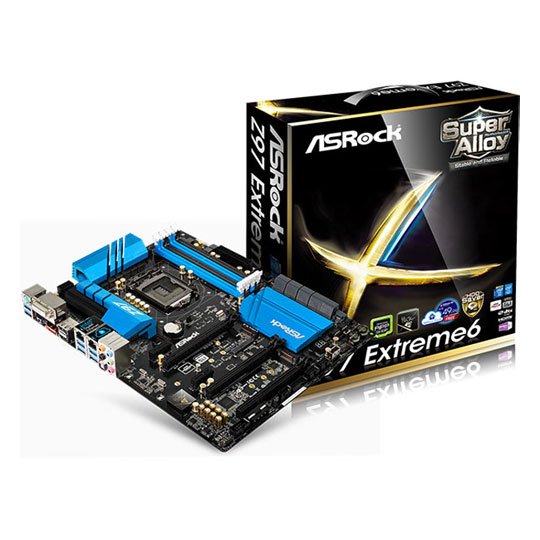

ASRock Z97 EXTREME6 Motherboard
