Scan code: LN93359 Manufacturer code: 90-MXB920-A0UAYZ

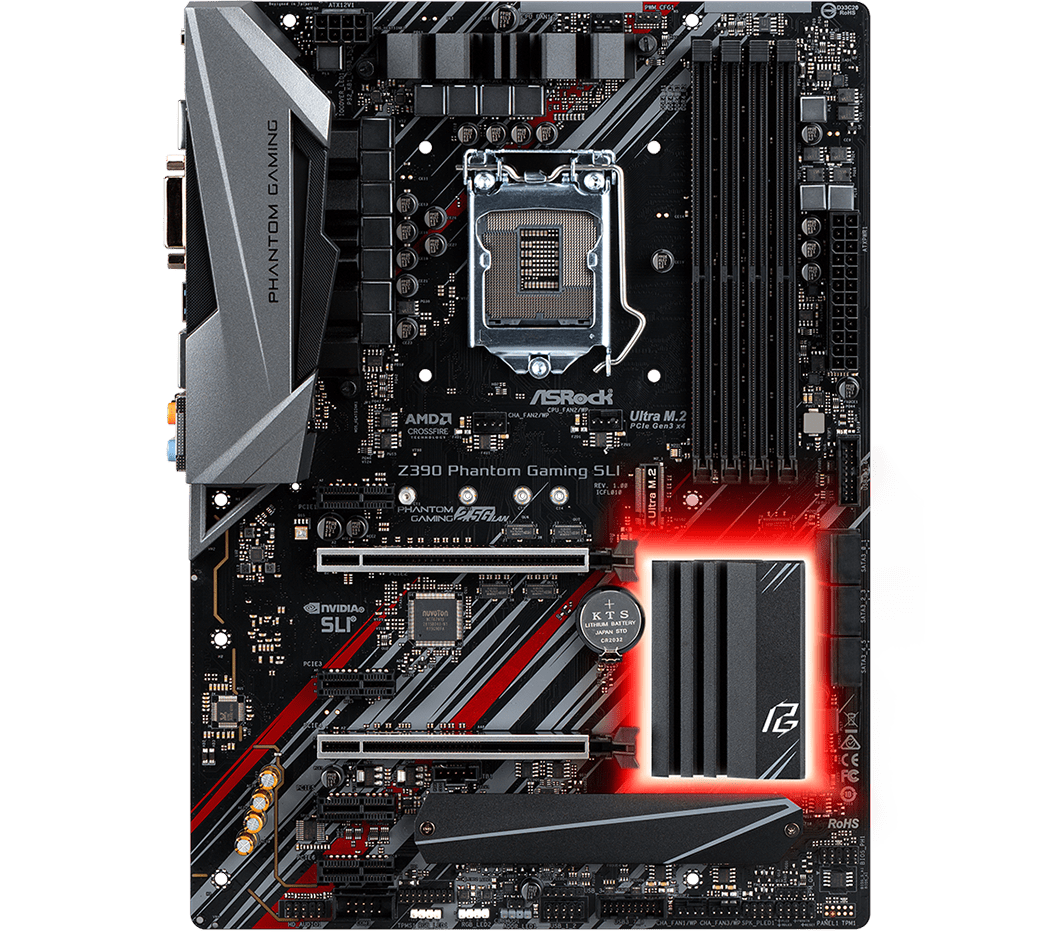

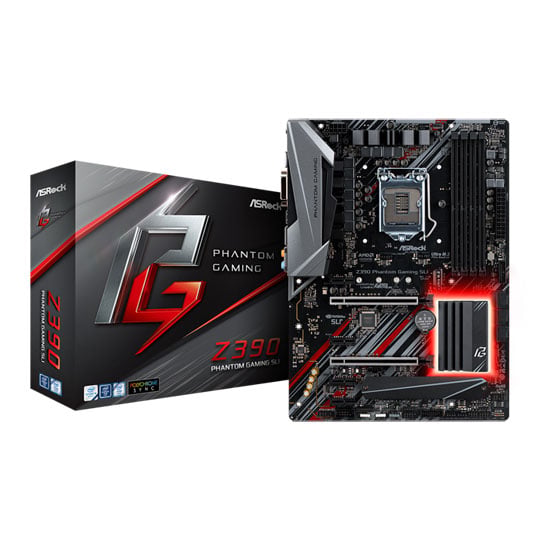

ASRock Intel Z390 Phantom Gaming SLI ATX Motherboard

ASRock Z390 Phantom Gaming SLI, Intel Z390, S 1151, DDR4, SATA3, 2x M.2, USB 3.1 Gen2 A+C, 2.5GbE, ATX

Thumbnail 1 : ASRock Intel Z390 Phantom Gaming SLI ATX Motherboard Thumbnail 2 : ASRock Intel Z390 Phantom Gaming SLI ATX Motherboard Thumbnail 3 : ASRock Intel Z390 Phantom Gaming SLI ATX Motherboard Thumbnail 4 : ASRock Intel Z390 Phantom Gaming SLI ATX Motherboard
Scan code: LN93359 Manufacturer code: 90-MXB920-A0UAYZ
£151.08
From £12.59 / month (APR 0%)
Monthly Payment: £25.18
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £151.08
Total inc. interest: £151.08
Monthly Payment: £12.59
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £151.08
Total inc. interest: £151.08
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th May 2019 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

Z390 PHANTOM Gaming SLI - Intel 9th Gen Motherboard

ASRock Z390 PHANTOM Gaming SLI

An unmatched Performance with ASRockASRock Z390 motherboards are the supreme motherboard for gamers who need superior components. The Z390 PHANTOM Gaming SLI motherboard is armed with 2.5Gb/s LAN, Dual M.2 and PCI-e steel slots that prevent signal interference. The quality alloy design improves your setup, whilst intelligent ASRock hardware and software thrives in providing an extreme performance. Personalise your setup with ASRock Polychrome SYNC, create different lighting effects with the built-in LED illumination. Featuring on-board RGB headers for compatible LED devices enabling full synchronization.

Intel Z390Chipset

1151CPU Socket

8th & 9th Gen IntelCompatible CPUs

ATXForm Factor

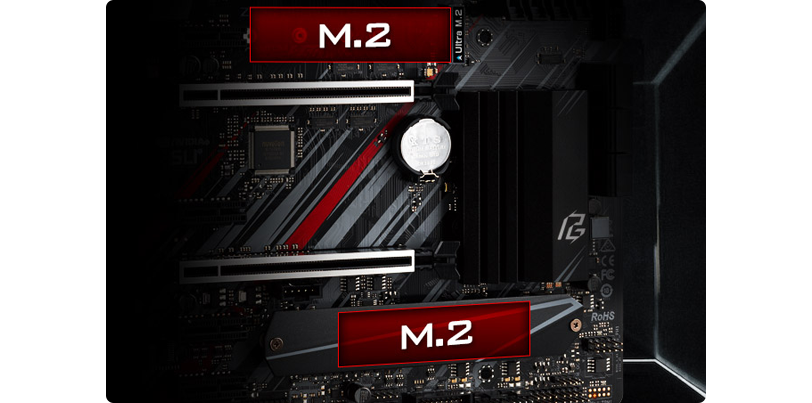

Dual M.2 Slots

dual m.2 slot

Boosts data transfer speeds up to 32Gb/s Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.

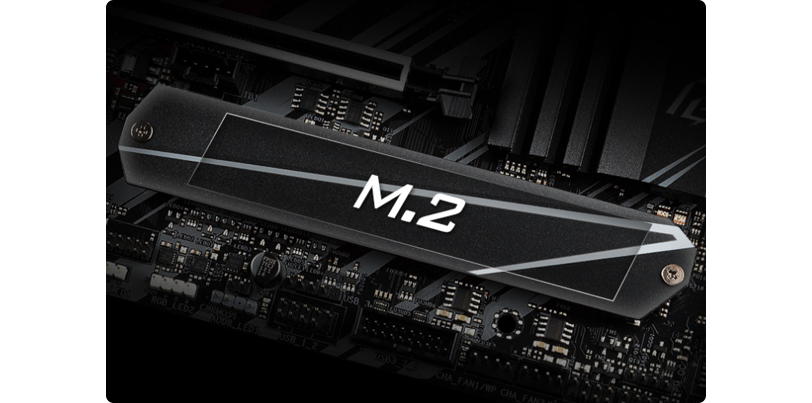

M.2 Heatsink

back

Maintaining Fast Speeds of the M.2 SSD The Z390 PHANTOM Gaming SLI motherboard features a massive full coverage M.2 heatsink that is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.

Boost Your Networking Performance

dual m.2 slot

Phantom Gaming 2.5Gb/s LAN The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

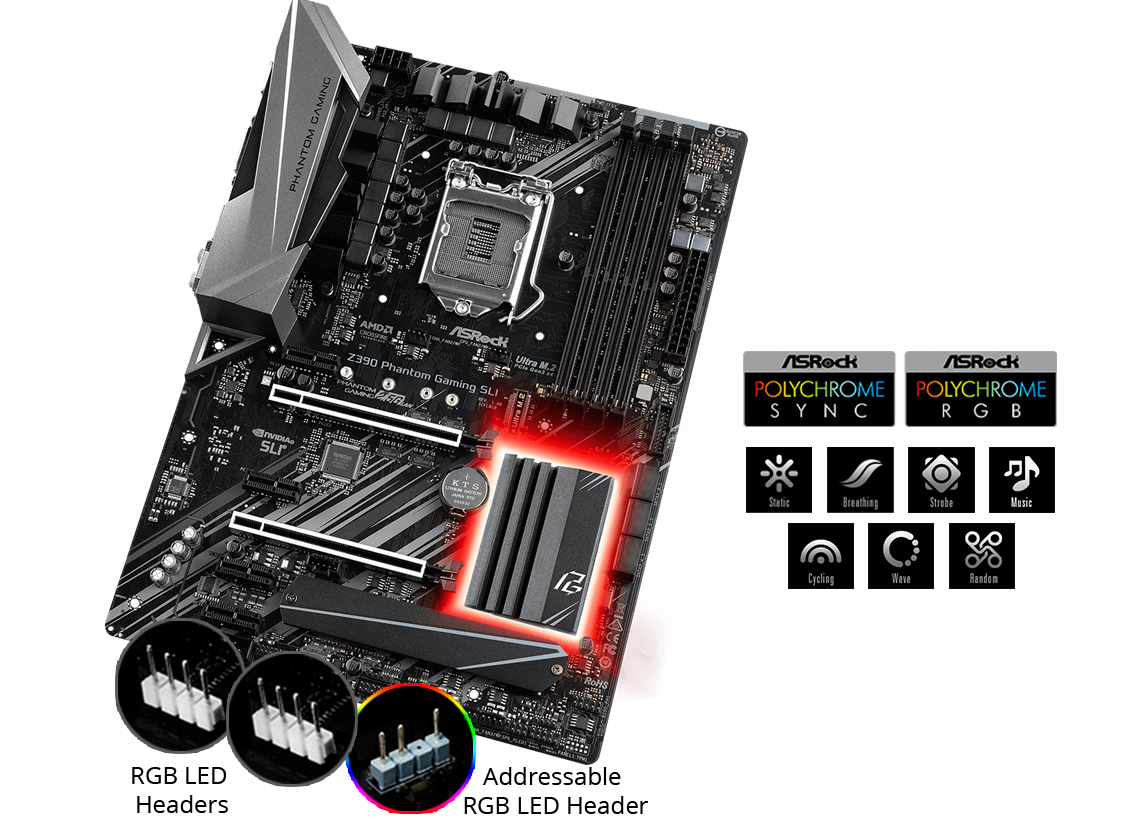

Create Stunning Lighting with Polychrome RGB

rgb rgb

ON-BOARD RGB LED HEADERS In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

On-board Dual USB 3.1 Gen2

vr

up to 10 Gbps data transfer rates The Z390 PHANTOM Gaming SLI motherboard features a pair of on-board Type-A and Type-C USB 3.1 Gen2 ports, built on the rear i/o for supporting next generation USB 3.1 Gen2 devices, which delivers up to 10 Gbps data transfer rates.

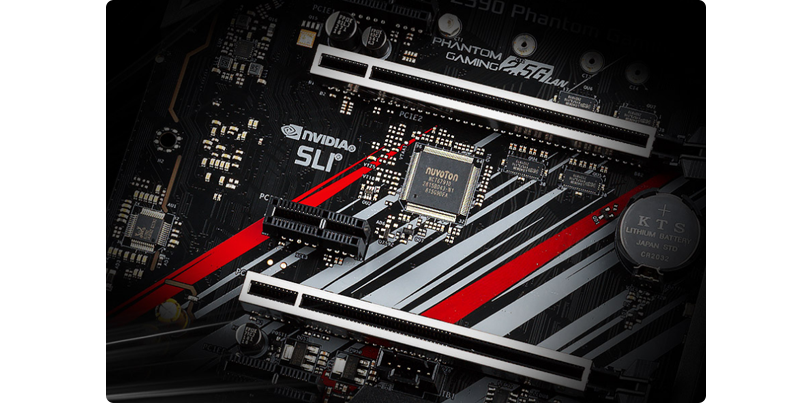

Advanced PCI-e Steel Slots

PCIe steel slot

PREVENT SIGNAL INTERFERENCE WITH GRAPHICS CARDS The advanced PCI-e Steel Slots are packed with solid protection that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-e slots safely.

Intel® Technology

Intel Optane Memory

Optane™ Memory Ready Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.

Intel 4 POOL Tech

Powerful POOL Technology POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.

Superior Motherboard Alloy

power choke

PREMIUM 45A POWER CHOKE Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

fabric density

HIGH DENSITY GLASS FABRIC PCB ASRock features the High Density Glass Fabric PCB design, which reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

pcb

SAPPHIRE BLACK PCB Witness the new mysterious Sapphire black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

12K Black Caps

Nichicon 12K Black Caps Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

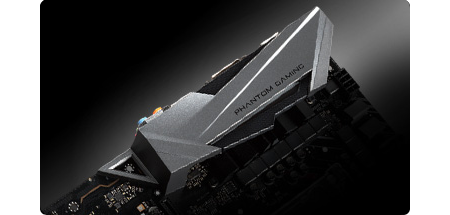

i/o armor

I/O Armor A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

Support Software and Premium Components

up

WATER PUMP HEADERThis is not only a standard CPU fan header, but also supports water pumps. This header provides a maximum of 2A power for supporting the most popular water pumps. Users can also adjust the voltage of the water pump to get a higher cooling performance with lower noise.

down

DIGI POWERUnlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

up

FULL SPIKE PROTECTIONSome sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with the:
ASRock Live Update & APP Shop.

Specifications
Core Specifications
Edition Phantom Gaming SLI
Form Factor ATX
CPU Socket 1151
Chipset Intel Z390
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
Max. Memory Capacity 64GB
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi/NVLink
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2230/2242/2260/2280, PCIe/SATA
  • 1 x M.2, 2230/2242/2260/2280/22110, PCIe/SATA
  • 4 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • Intel Rapid Storage Technology Support
  • NCQ
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 3 x Chassis Water Pump/Fan Connector
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 2 x RGB Header
  • 1 x Serial (COM) Header
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Header
External Connectivity
Network Interface Type 2.5 Gigabit LAN
Network Chip/Modules 1 x Realtek RTL8125AG
Rear I/O Connectors
  • 1 x Bass Speaker Out
  • 1 x Central Speaker Out
  • 1 x DVI-D
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 4 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
Additional Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 30.5 x 22.4 mm
Note
Additional Information
Scan Code LN93359
Model Number 90-MXB920-A0UAYZ
GTIN 4717677337112
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
