Scan code: LN84563 Manufacturer code: 90-MXB660-A0UAYZ

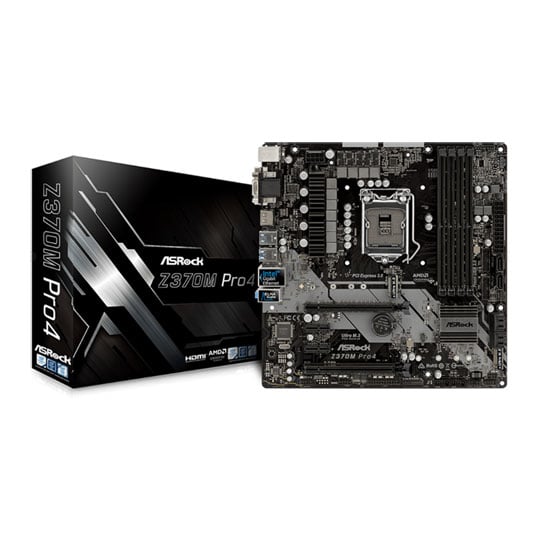

ASRock Intel Z370M Pro 4 Coffee Lake Micro ATX Motherboard

ASRock Z370M Pro4, Intel Z370, S 1151, DDR4, SATA3, Dual M.2, 2-Way CrossFire, Intel GbE, USB 3.1 Gen1 A+C, MicroATX

Scan code: LN84563 Manufacturer code: 90-MXB660-A0UAYZ
£100.99
From £8.42 / month (APR 0%)
Monthly Payment: £16.84
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £100.99
Total inc. interest: £100.99
Monthly Payment: £8.42
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £100.99
Total inc. interest: £100.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 21st Sep 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview Armour Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems. Features • Supports 8th Generation Intel® Core™ Processors (Socket 1151).
• Supports DDR4 4300+(OC).
• 2 PCIe 3.0 x16, 2 PCIe 3.0 x1.
• AMD Quad CrossFireX™.
• Graphics Output Options: HDMI, DVI-D, D-Sub.
• Supports Triple Monitor.
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps.
• 6 SATA3, 2 Ultra M.2 (One supports PCIe Gen3 x4 & SATA3, the other one supports PCIe Gen3 x4 only).
• 9 USB 3.1 Gen1 (4 Rear, 1 Type-C, 4 Front).
• Intel® Gigabit LAN.
• Intel® Optane™ Memory Ready.

Please Note: Intel Z370 Motherboards are ONLY compatible with Intel 8th. Gen 'Coffee Lake' CPUs. Although these Intel Z370 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen. Intel CPUs.
Specifications
Core Specifications
Edition
Form Factor MicroATX
CPU Socket 1151
Chipset Intel Z370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2230/2242/2260/2280, PCIe
  • 1 x M.2, 2230/2242/2260/2280, PCIe 2.0/SATA
  • 2 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • Hot Plug
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology 15
  • NCQ
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 3-pin CPU Fan Connector
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin Fan
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Front Panel Audio Header
  • 1 x Parallel Port (LPT) Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x RJ-45
  • 1 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen1 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
