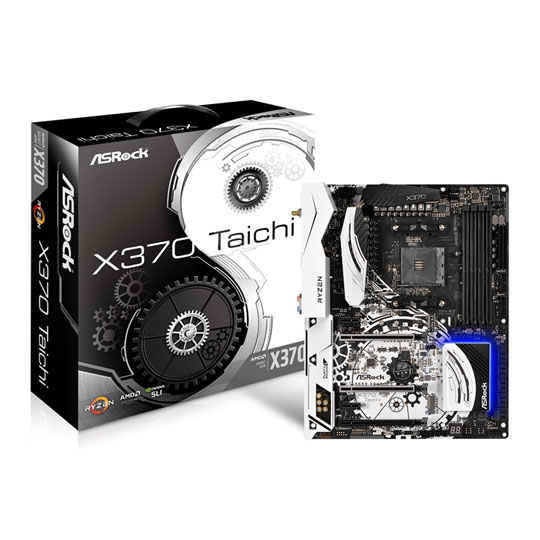

ASRock AMD AM4 Ryzen X370 Taichi ATX Motherboard

ASRock X370 Taichi, AMD X370, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), 2-Way SLi/CrossFire, Intel GbE, WiFi USB 3.1 A+C, ATX

Thumbnail 1 : ASRock AMD AM4 Ryzen X370 Taichi ATX Motherboard Thumbnail 2 : ASRock AMD AM4 Ryzen X370 Taichi ATX Motherboard Thumbnail 3 : ASRock AMD AM4 Ryzen X370 Taichi ATX Motherboard Thumbnail 4 : ASRock AMD AM4 Ryzen X370 Taichi ATX Motherboard ASRock AMD AM4 Ryzen X370 Taichi ATX Motherboard : video thumbnail 1
Scan code: LN79067 Manufacturer code: 90-MXB500-A0UAYZ
£194.99Item currently awaiting an ETA
Pre order
From £17.51 / month (APR 14.9%)
Monthly Payment: £33.84
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £194.99
Total inc. interest: £203.00
Monthly Payment: £17.51
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £194.99
Total inc. interest: £210.04
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

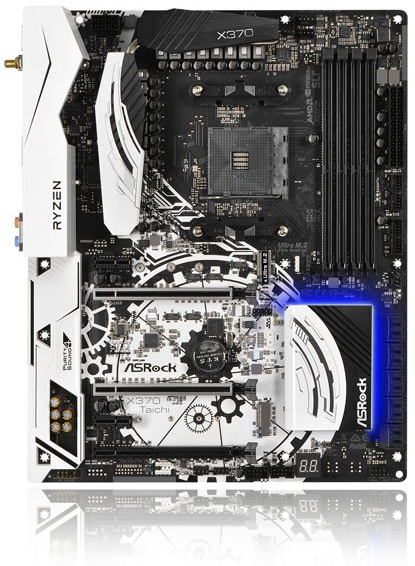

ASROCK ATX Motherboard. X370 Taichi AM4 Socket

AM4 Asrock Motherboard
ASROCK AM4 Socket motherboard, Taichi X370

The Taichi is a stylish ASROCK motherboard that also packs considerable power. It is capable of supporting AM4 socket Ryzen Series CPUs and DDR4 (2667) memory, features both USB 3.1 Type-C and Type-A, plus it even has boosted audio output through Purity Sound 4 and DTS Connect. Taichi is part of ASROCK’s X370 series, and boasts a variety of tools such as RGB LEDs and Steel Slot PCI-Es. Through the Super Alloy technology it features you can be sure the built-in components are reliable and will run your motherboard with stability.

AMD X370

CPU Socket

Form Factor

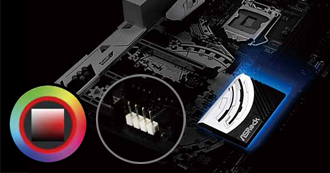

Motherboard Lighting

AM4 Asrock Motherboard Feature
Taichi adds a stylish glow to your pc

Build your own colourful lighting system! ASRock RGB LED allows users to connect LED strip and create their unique PC style easily.

Wireless Options

AM4 Asrock Motherboard Feature
Keeping your wires to a minimum

Besides the on-board LAN port, users may also choose 802.11ac wireless connections.

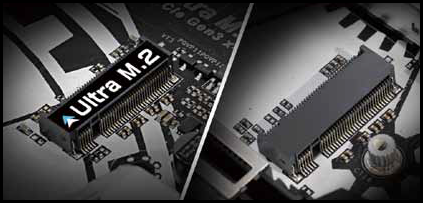

Dual M.2 Sockets

AM4 Asrock Motherboard Feature
Ultra M.2 for your SSD

One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. The other one supports PCIe Gen2 x4 20Gb/s transfer speed.

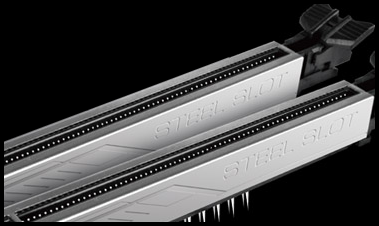

Protected Board Slots

AM4 Asrock Motherboard Feature
Stronger STEEL PCI-E Slots

The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

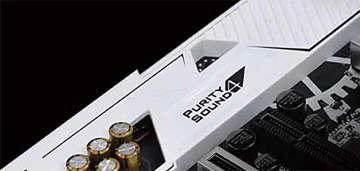

Purity Sound 4

AM4 Asrock Motherboard Feature
Technologies to enhance your audio

7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.

Super Alloy Motherboard

AM4 Asrock Motherboard Feature
X370 Taichi is Stable & Reliable

XXL Aluminium Alloy Heatsink / Premium 60A Power Choke / Premium Memory Alloy Choke / Dual-Stack MOSFET (DSM) / Nichicon 12K Black Caps / I/O Armour / Matte Black PCB / High Density Glass Fabric PCB / 12+4 Power Phase Design

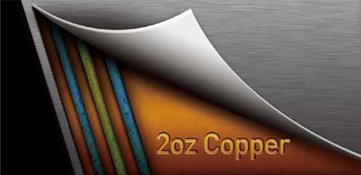

Copper Cooling PCB

AM4 Asrock Motherboard Feature
High-Energy Efficiency for OC with Lower Temps

It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.

AMD Taichi Optimization

AM4 Asrock Motherboard Feature
X370 IR Digital PWM Technology

The onboard IR Digital PWM controller delivers the most precise and stable power so that users may achieve optimal performance.

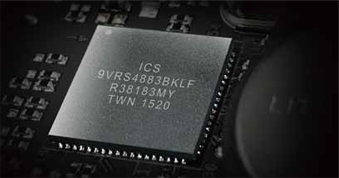

Hyper BCLK Engine II

AM4 Asrock Motherboard Feature
Expanding ranges and enhancing precision

An additional external base clock generator which provides a wider range of frequencies and more precise clock waveforms.

Intel Connecttion

AM4 Asrock Motherboard Feature
Intel LAN gives more, requires less

Better performance, lowered CPU utilization and enhanced stability are all part of the improvements that come with Intel's LAN port.


AM4 Asrock Motherboard Feature

DTS Connect is a blanket name for a two-part system, including DTS Interactive and DTS Neo:PC, it is used on the computer platform only, in order to convert PC audio into the DTS format.

Dual USB 3.1

AM4 Asrock Motherboard Feature
Experience both Type-A and Type-C

A pair of on-board Type-A and Type-C USB 3.1 ports built on the rear i/o for supporting next generation USB 3.1 devices.

Core Specifications
Form Factor ATX
CPU Socket AM4
Chipset AMD X370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 64GB (4x16GB)
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E Vertical (Supports WiFi Modules)
  • 1 x M.2, 2230/2242/2260/2280, PCIe
  • 1 x M.2, 2242/2260/2280, PCIe/SATA
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0 (SATA 0~7 ONLY)
  • RAID 1 (SATA 0~7 ONLY)
  • RAID 10 (SATA 0~7 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x AMD Fan LED Header
  • 1 x AMD LED Fan USB Header
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 2 x RGB LED connector
  • 10 x SATA III - 6Gb/s
  • 2 x USB 2.0 Header
  • 2 x USB 3.0 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel 802.11ac WiFi/ BT4.2 Module (433Mbps)
  • 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS switch
  • 1 x Front Speaker Out
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 6 x USB 3.0
  • 1 x USB 3.1 Type-A
  • 1 x USB 3.1 Type-C
  • 2 x WiFi Antenna connectors
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
0871 472 4747
Customers also bought
TekSpek Guides
AMD Ryzen Chipset
AMD Ryzen Chipset
Date Issued: 20th Nov 2017

AMD made waves in the premium consumer CPU market during March 2017 when it debuted Ryzen processors based on the Zen architecture that had been in development for the previous four years

Read More

ASRock X370 Taichi, AMD X370, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), 2-Way SLi/CrossFire, Intel GbE, WiFi USB 3.1 A+C, ATX is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from Probably the best AM4 board. Bought the board to pair with an 1800x, with corsair memory, i was able to get 3200mhz working just by enabling XMP, not to mention the overkill VRM and built in WIFI Very well featured for the price.
Date published: 2017-05-01
Rated 5 out of 5 by from Fantastic SLI Board. 2 NVMe, 10 SATA, Linux Compatible Fantastic SLI Board. Much more facilities than more expensive Boards!!! 2 NVMe slots so I can fastboot from Windows & Linux Also allows fast loading of Windows games and lightening fast VM load times using VirtualBox. 10 SATA3 connectors for my 8 disc Storage & BackUp RAIDS Didn't have to worry about Linux compatibility. Wireless, LAN & Sound worked out of the Box in Linux!!!
Date published: 2017-04-24
Rated 5 out of 5 by from best value for the top end x370 board ok so its been up and running for around one week now installation went flawlessly despite most am4 boards and early bios having widespread issues this was no problem for the taichi board shipped with stable bios version 1,50 allowing instant bios flash to version 1.6 (it is now on bios v2) right from the start my gskill 3200 ram works from xmp setting ( gskill trident f4-3200c15d-16gtz the 2x 8gb kit) this is paired with a 1700 cpu overclocked and stable at 3.9 ghtz all cores at 1,38 volts and the Samsung evo 960 nvme ssd all installed and set as designed now why buy this board ? heres the features it excels at : simply the best designed power phases 16 of them ! (allows you to overclock more stable and even with lower clocks allows you to have MUCH lower heat issues around this area) this board is one of the few that actually allow bclk adjustments this board comes complete with wifi built in simply put the best x370 power design to date , ability to use the bclk and added bonus of wifi installed on the motherboard add to this extremely good support from manufacturer (bear in mind two other BIG makers have released bios for their boards which have ruined the board and made you return to seller !) in my opinion at the £200-300 price range this is the best choice
Date published: 2017-04-12
