ASRock AMD AM4 Ryzen X370 Pro Gaming ATX Motherboard

ASRock X370 Professional Gaming, AMD X370, S AM4, DDR4, SATA3, M.2, 2-Way SLi/CrossFire, 5GbE/WiFi, USB 3.1, ATX

Scan code: LN79066 Manufacturer code: 90-MXB4L0-A0UAYZ Request call
Pay on Scan Finance with a 10% deposit from just £6.46 / month (APR 15.9%)
From £12.41 / month (APR 14.9%)
Monthly Payment: £44.86
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £258.49
Total inc. interest: £269.13
Monthly Payment: £23.21
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £258.49
Total inc. interest: £278.47
Monthly Payment: £16.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £258.49
Total inc. interest: £288.03
Monthly Payment: £12.41
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £258.49
Total inc. interest: £297.78
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
High End
Delivery options £5.48 By DPD On 23rd Feb 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

AM4 Professional Gaming. Asrock X370 Fatal1ty Gaming Gear

AM4 Asrock Motherboard
X370 High Powered Pro Gaming Motherboard from Asrock

This PCB from Asrock is part of their Fatal1ty Gaming Gear series and has been named X370 Professional Gaming – with good reason. The sound output features SoundBlaster Cinema3 for that cinematic audio, AQUANTIA 5 Gigabit LAN and Intel Gigabit LAN for rapid transfer rates, plus the X370 Pro boasts support of AM4 Ryzen CPUs (Summit Ridge), DDR4 2667 and quad GPU capabilities among other next-gen technologies.

AMD X370

CPU Socket

Form Factor

High-Performance Transfer Rates

AM4 Asrock Motherboard Feature

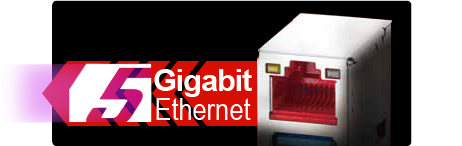

AQUANTIA 5G /s BASE-T Ethernet

The new 5Gb/s network standard was specially designed to satisfy users who are seeking immediate performance improvements, but can't afford the more expensive 10Gb/s networking products. AQUANTIA 5Gb/s BASE-T motherboards offer blazingly fast 5-gigabit/sec transfer speeds, for the best on-line gaming performance.

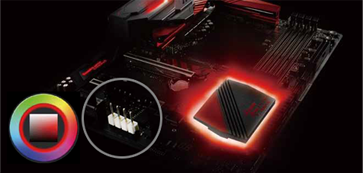

Motherboard RGB Lighting

AM4 Asrock Motherboard Feature
Customize your X370 with a personal touch

Build your own colourful lighting system! ASRock RGB LED allows users to connect LED strip and create their unique PC style easily.

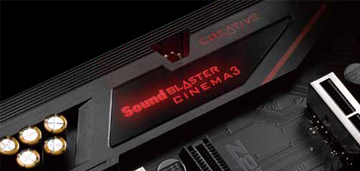

Creative Sound Blaster Cinema 3

AM4 Asrock Motherboard Feature
Experience Enhanced audio in-game and out

A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. 7.1 CH HD audio with Realtek ALC1220 audio codec that brings a truly immersive audio experience up to 120dB SNR.

Wireless Connectivity

AM4 Asrock Motherboard Feature
X370 boasts WiFi 802.11ac

Besides the on-board LAN port, users may also choose 802.11ac wireless connections.

Asrock PCI-E Steel Slots

AM4 Asrock Motherboard Feature
High-Quality Safe & Secure Slots

The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

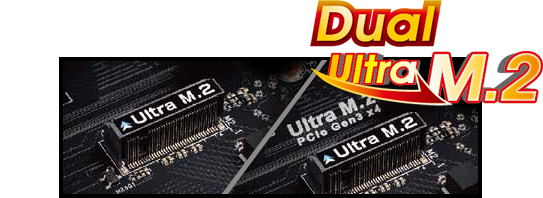

Dual M.2 Slot Speeds

AM4 Asrock Motherboard Feature
Rapid M.2 speeds for Solid State Drives

One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. The other one supports PCIe Gen2 x4 20 Gb/s.

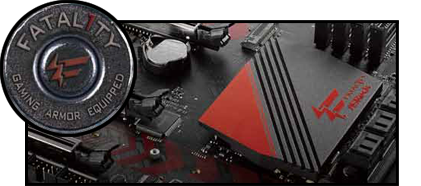

Gaming Armor Protection

AM4 Asrock Motherboard Feature
Motherboard Tech that's Stable & Reliable

CPU Power: Hi-Density Power Connectors / Memory: 15u Gold Contact in DIMM Slots / VGA Card: 15u Gold Contact in VGA PCIe Slot (PCIE2) / Internet: Intel LAN / Cooling: XXL Aluminium Alloy Heatsink, Heat Pipe Design / Audio: Creative SoundBlaster Cinema3

AMD Precision Technology

AM4 Asrock Motherboard Feature
Hyper BCLK Engine II

An additional external base clock generator which provides a wider range of frequencies and more precise clock waveforms.

2oz Copper Cooling

AM4 Asrock Motherboard Feature
Low-Temperature High-Power PCB

It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.

Optimizes User Performance

AM4 Asrock Motherboard Feature
IR Digital PWM Tech

The onboard IR Digital PWM controller delivers the most precise and stable power so that users may achieve optimal performance.

Advanced Gaming Techniques

AM4 Asrock Motherboard Feature
Level up your in-game skill with Key Master

Key Master consists of two major features, Sniper Key and Macro Key. It enhances your mouse and keyboard with customizable macros, sniper modes, key repeat rates and repeat delay.

X370 Other Features

AM4 Asrock Motherboard Feature
Get more from your motherboard

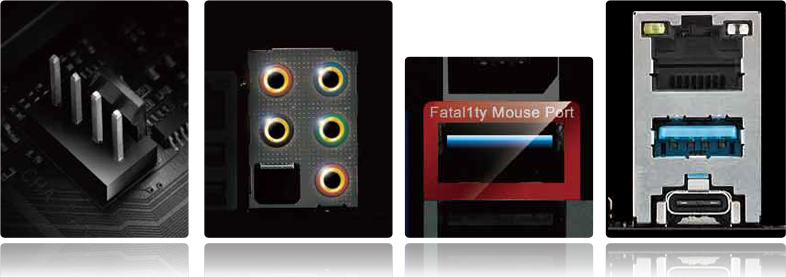

Above: Water Pump Header / Gold Audio Jacks / Fatal1ty Mouse Port / Dual USB 3.1 (Type-A + Type-C)

Other: AMD Quad CrossFireX / NVIDIA Quad SLI / Supports DDR4 2666 / Premium Memory Alloy Choke / Premium 60A Power Choke / Dual-Stack MOSFET (DSM) / Nichicon 12K Black Caps / Matte Black PCB / High Density Glass Fabric PCB / 12+4 Power Phase Design

Core Specifications
Form Factor ATX
CPU Socket AM4
Chipset AMD X370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 64GB (4x16GB)
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 2-Way CrossFire
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E Vertical (Supports WiFi Modules)
  • 1 x M.2, 2230/2242/2260/2280, PCIe
  • 1 x M.2, 2242/2260/2280, PCIe/SATA
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0 (SATA 0~7 ONLY)
  • RAID 1 (SATA 0~7 ONLY)
  • RAID 10 (SATA 0~7 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x AMD Fan LED Header
  • 1 x AMD LED Fan USB Header
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 1 x Power Switch with LED
  • 1 x Reset Switch with LED
  • 2 x RGB LED connector
  • 10 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.0 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired 5 Gigabit LAN (100/1000/2500/5000)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x AQUANTIA AQC108 (5GbE LAN)
  • 1 x Intel 802.11ac WiFi/ BT4.2 Module (433Mbps)
  • 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x 100/1000/2500/5000 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS switch
  • 1 x Fatal1ty Mouse Port (USB 3.0)
  • 1 x Front Speaker Out
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x SPDIF Out (Optical)
  • 5 x USB 3.0
  • 1 x USB 3.1 Type-A
  • 1 x USB 3.1 Type-C
  • 2 x WiFi Antenna connectors
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
0871 472 4747
Customers also bought
TekSpek Guides
AMD Ryzen Chipset
AMD Ryzen Chipset
Date Issued: 20th Nov 2017

AMD made waves in the premium consumer CPU market during March 2017 when it debuted Ryzen processors based on the Zen architecture that had been in development for the previous four years

Read More

Questions & Answers

Can you raid-0 the m.2 on this board?

Asked by: Sanchezding
Hello, This board should support the following RAID options: RAID 0 (SATA 0~7 ONLY) RAID 1 (SATA 0~7 ONLY) RAID 10 (SATA 0~7 ONLY) There is no default listed RAID support for M.2 drives on this board. Regards,
Answered by: JackB
Date published: 2017-07-26

Can this Overclock memory to 3200 MHz?

Some other high-end X370 motherboard (namely from MSI and Gigabyte) state that they support higher memory speeds, e.g. 3200 MHz (OC). This one doesn't state that, but does it also support overlocked memory speeds of 3200 MHz? I wanted to confirm this before I pre-order.
Asked by: ab12
It does. ASRock's website is now updated, with specs showing support for memory faster than 2666MHz (3200+ MHz). They have also updated the supported Memory list, which shows support for 3000 and 3200 MHZ memory.
Answered by: ab12
Date published: 2017-03-03
