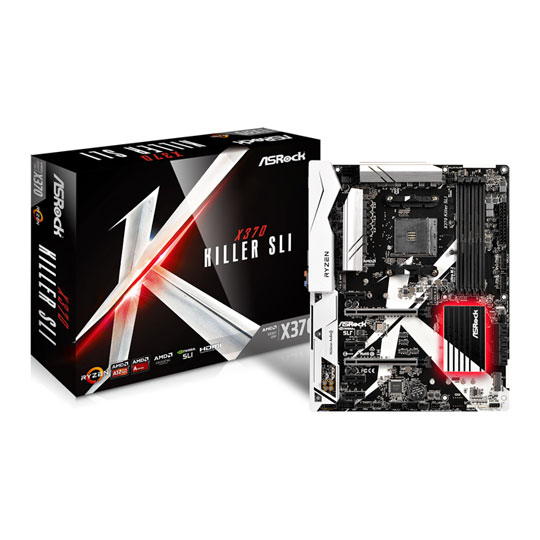

ASRock AMD AM4 Ryzen X370 Killer SLI ATX Motherboard

ASRock X370 Killer SLI, AMD X370, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), 2-Way SLi/CrossFire, Intel GbE, USB 3.0 A+C, ATX

ASRock
Scan code: LN79069 Manufacturer code: 90-MXB560-A0UAYZ Request call
£140.99
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 14th Dec 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

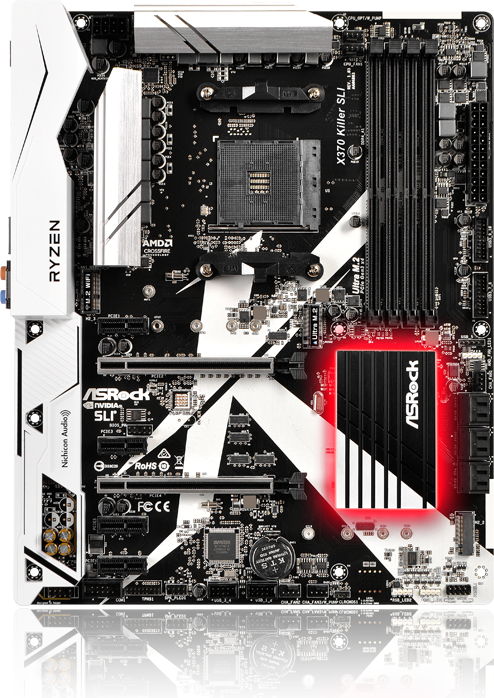

AMD Ryzen ATX Motherboard from ASROCK. X370 Killer SLI

AM4 Asrock Motherboard
X370 Power and Performance goes further

ASROCK’s X370 Killer SLI is a great all round motherboard, built with style, performance and reliability. With ports and connections like Intel LAN and USB Type-C you can be confident in connection speeds. Utilising DDR4 memory, AM4 A-Series APUs (Bristol Ridge) and Ryzen CPUs (Summit Ridge), SATA3 and more top-end technologies you can be sure ASROCK’s Killer SLI will boost your experience no matter the task.

AMD X370
Chipset

AM4
CPU Socket

ATX
Form Factor

Ultra M.2 Slot x2

AM4 Asrock Motherboard Feature

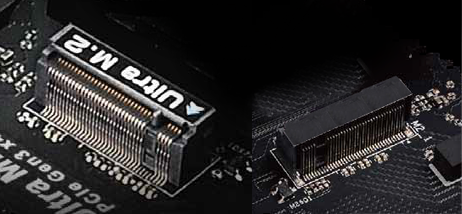

Rapid M.2 speeds for Solid State Drives

One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. The other one supports PCIe Gen2 x2 10Gb/s transfer speed. Both of them support SATA3 6Gb/s M.2 modules.

Steel Slot Protection

AM4 Asrock Motherboard Feature
ASROCK Advanced PCI-E Slots

The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

X370 RGB LEDs

AM4 Asrock Motherboard Feature

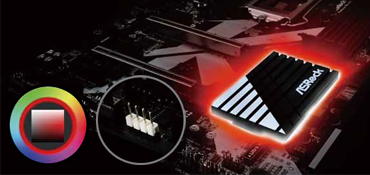

Light up the killer SLI & add style to your PC

Build your own colourful lighting system! ASRock RGB LED allows users to connect LED strip and create their unique PC style easily.

Enhanced LAN Performance

AM4 Asrock Motherboard Feature
Intel Local Area Network Connection

Better performance, lowered CPU utilization and enhanced stability all come with the power of Intel LAN, get more from your ports!

8+4 Power Phase Design

AM4 Asrock Motherboard Feature
X370 pushes your pc system further

Reinforced system stability for taking on all sorts of arduous computing tasks.

Wifi Availability

AM4 Asrock Motherboard Feature

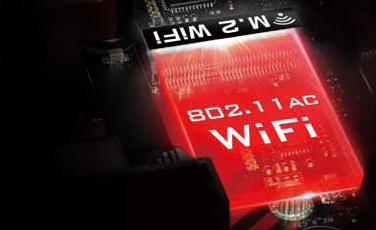

Killer SLI M.2 (KEY E) For WiFi

Besides the on-board LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*WiFi module is not included.

User Performance Optimized

AM4 Asrock Motherboard Feature
X370 IR Digital PWM Technology

The onboard IR Digital PWM controller delivers the most precise and stable power so that users may achieve optimal performance.

USB Type-C Speeds

AM4 Asrock Motherboard Feature

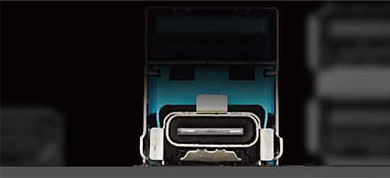

Experience rapid transfer rates through Type-C connection

A latest reversible USB Type-C design that fits the connector either way, connect quicker and easier with next-gen ports.

Super Alloy Technologies

X370 Super Alloy makes a stable and reliable motherboard

This technology features a variety of board enhacments such as:

  • XXL Aluminum Alloy Heatsink
  • Premium 60A Power Choke
  • Premium Memory Alloy Choke
  • Dual-Stack MOSFET (DSM)
  • Nichicon 12K Black Caps
  • I/O Armor
  • Matte Black PCB
  • High Density Glass Fabric PCB
  • 2oz Copper PCB

Technology versions can vary

Specifications
Core Specifications
Form Factor ATX
CPU Socket AM4
Chipset AMD X370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 2-Way SLi
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 2 x M.2, 2230/2242/2260/2280, PCIe/SATA
  • 4 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x AMD Fan LED Header
  • 1 x AMD LED Fan USB Header
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 2 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.0 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Rear Speaker Out
  • 1 x SPDIF Out (Optical)
  • 7 x USB 3.0
  • 1 x USB 3.0 Type-C
  • 2 x Wi-Fi antenna connector holes
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Customers also bought
TekSpek Guides
AMD Ryzen Chipset
AMD Ryzen Chipset
Date Issued: 20th Nov 2017

AMD made waves in the premium consumer CPU market during March 2017 when it debuted Ryzen processors based on the Zen architecture that had been in development for the previous four years

Read More

Reviews
ASRock X370 Killer SLI, AMD X370, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), 2-Way SLi/CrossFire, Intel GbE, USB 3.0 A+C, ATX is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Great quality mother board This reveiw is in the infancy of the ryzen platform so details might change as time goes on. Overall this is a great quality motherboard with the nice addition of an rgb chipset heatsink. Over the past few moths asrock has put out many bios updates each one improving the system after the other. Boot times are acceptable and the positioning of ports and pcie slots are sensible, with the caveat that chassis fan header 1 may be blocked by a large graphics card so install the fans before thr card when using this board. This board is very easy to overclock with I got 3.7ghz on an r7 1700 with just a small voltage boost. This is hands down the best motherboard I have owned.
