Scan code: LN106066 Manufacturer code: 90-MCA080-00UBNZ

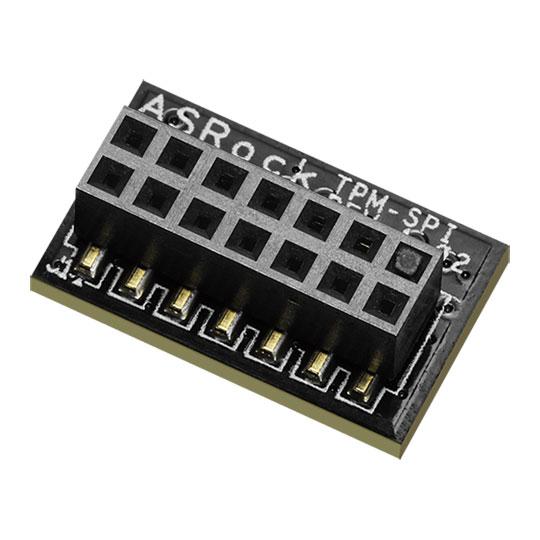

ASRock 14-1 Pin TPM-SPI Module

ASRock Trusted Platform Module TPM-SPI, 14.1 Pin, Family 2.0, Level 00, Revision 01.16

Thumbnail 1 : ASRock 14-1 Pin TPM-SPI Module Thumbnail 2 : ASRock 14-1 Pin TPM-SPI Module
Scan code: LN106066 Manufacturer code: 90-MCA080-00UBNZ
£11.99
Order now and get it tomorrow, Fri 14th Aug
Delivery Options
  • By DPD On 14th Aug to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Compliant to TPM Main Specification, Family "2.0", Level 00, Revision 01.16

Features

Compliant to TPM Main Specification, Family "2.0", Level 00, Revision 01.16
• SPI interface.
• Meeting Intel TXT, Microsoft Windows and Google Chromebook certification criteria for successful platform qualification.
• Random Number Generator (RNG) according to NIST SP800-90A.
• Full personalization with Endorsement Key (EK) and EK certificate.
• Standard (-20..+85°C) and Enhanced temperature range (-40..+85°C).
• PG-VQFN-32-13 or PG-UQFN-32-1 package.
• Pin compatible to OPTIGA™ TPM SLB 9670 TPM1.2 version.
• Optimized for battery operated devices: low standby power consumption (typ. 110µA).
• 24 PCRs (SHA-1 or SHA-256).
• 7206 Byte free NV memory.
• Up to 3 loaded sessions (TPM_PT_HR_LOADED_MIN).
• Up to 64 active sessions (TPM_PT_ACTIVE_SESSIONS_MAX).
• Up to 3 loaded transient Objects (TPM_PT_HR_TRANSIENT_MIN).
• Up to 7 loaded persistent Objects (TPM_PT_HR_PERSISTENT_MIN).
• Up to 8 NV counters.
• Up to 1 kByte for command parameters and response parameters.
• 1280 Byte I/O buffer.

System Requirements: Windows 10, UEFI OS.
Dimensions: 16.51 x 10.16mm


Pin Dimension: 14-1pin.
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Reviews
ASRock Trusted Platform Module TPM-SPI, 14.1 Pin, Family 2.0, Level 00, Revision 01.16 is rated 3.5 out of 5 by 2.
Rated 5 out of 5 by from It works! First TPM that works on my board. There are (at least) three different, incompatible kinds, and it's usually poorly documented which kind you need, because those are still a niche product. Note that you need to run a special program (EnableSPITPM.efi) from an EFI shell to make this work. The BIOS will not tell you this, it will just say "no TPM found" until you run this. This is described in the manual: https://download.asrock.com/Manual/TPM-SPI.pdf
Date published: 2020-05-02
