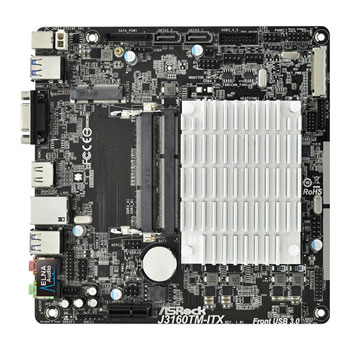

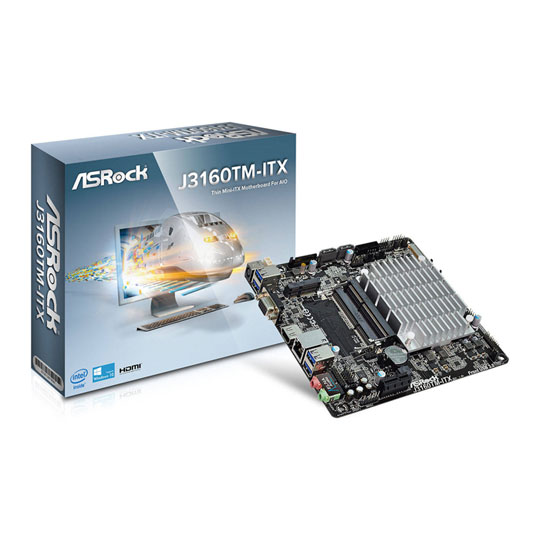

ASRock Intel J3160TM-ITX Thin Mini ITX AIO PC Motherboard

ASRock J3160TM-ITX, Quad Core Intel J3160 1.6GHz, DDR3/DDR3L, Intel HD Graphics 400, SATA3, GbE, USB 3.0, Thin Mini ITX

ASRock
Scan code: LN73417 Manufacturer code: J3160TM-ITX Request call
£109.99
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £5.48 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview Super Alloy Motherboard: Stable and Reliable

High Density Glass Fabric PCB
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

DC-In Jack and Supports DC Adapter
Allocate the internal space of your chassis more smartly! The DC-In jack is compatible with the free bundled 19V power adapter, so that your motherboard may fit in the most compact chassis.Supports DC Adapter
Please note: DC Adapter is not included.

Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

Intel® Quad-Core Processor J3160 (Up to 2.24 GHz)
Improved performance, lower power consumption, and new multimedia capabilities.

Supports Standard & Low Voltage SO-DIMMs
Capable of supporting both standard and low-voltage SO-DIMMs.

16GB Memory Support
Each slot supports 8GB memory modules, thus delivering a maximum capacity up to 16GB.

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

Half-size Mini PCIe
A compact and convenient PCIe interface on the motherboard that can be used for connecting WiFi cards or other add-on cards.

Power Gear
Toggle between three operational modes (Eco, Normal and Sport) to maximize performance or conserve energy. Use Eco mode for saving power during torrent downloads or other light activities, normal mode for regular tasks such as web surfing or word processing, and then shift to Sport mode to take on heavy jobs such as gaming or 4K video playback.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!

Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.

XFast RAM
ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.

XFast LAN
When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.

HDMI
This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds. Features • ASRock Super Alloy.
• Intel® Quad-Core Processor J3160.
• Solid Capacitor design.
• Supports Dual Channel DDR3/DDR3L SO-DIMM 1600.
• 1 PCIe 2.0 x1, 1 Half-Size Mini-PCIe.
• 1x TPM Header, 1 x COM Port Header.
• 1x DC Jack (Compatible with the 19V power adapter).
• Graphics Output Options :LVDS, D-Sub, HDMI.
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps.
• 2 SATA3.
• 6 USB 3.0 (2 Front, 4 Rear).
• Supports Full Spike Protection, ASRock Live Update & APP Shop.
Specifications
Specifications
Form Factor Thin Mini ITX
CPU Socket Integrated CPU
CPU Included Yes
CPU Fitting Integrated
CPU Type Intel Celeron
CPU Model J3160
Core Name Braswell
Core Size 14 nm
Cores Quad Core
No. of Threads 4
Clock Speed 1.6 GHz
Turbo Speed 2.24 GHz
Cache 2MB
Max. TDP 6W
Thermal Specification 90 °C
Heatsink Included Yes
Heatsink Type Passive (With Heat Sink NO Fan)
Chipset System-on-Chip
Memory Type DDR3/DDR3L SO-DIMM
Memory Channel Dual
Memory Type (ECC) Non-ECC
Memory Type (R/U) Unbuffered
Memory Speed (MHz)
  • DDR3 - 1066
  • DDR3 - 1600
  • DDR3L - 1066
  • DDR3L - 1600
Memory Capacity 16GB (2x8GB)
Graphics Interface On-board
Graphics Chip Intel HD Graphics 400
Base GPU Speed 320 MHz
Max. GPU Speed 700 MHz
Graphics Connectors
  • D-Sub (VGA)
  • HDMI
Expansion Slots
  • 1 x Half-size Mini-PCIe
  • 1 x PCIe 2.0 x1
Audio Chip Realtek ALC892 7.1 HD Audio
Network Interface Wired Gigabit LAN (10/100/1000)
Network Interface Chip 1 x Realtek RTL8111GR (Gigabit LAN)
SATA Interface SATA III 6Gb/s
RAID Support Not Supported
Storage Features
  • AHCI
  • Hot Plug
  • NCQ
Internal I/O
  • 1 x 3W Audio AMP Output Wafer Header
  • 1 x Analog Surround Audio Header
  • 1 x Backlight Control Header
  • 1 x Backlight Power Jumper
  • 1 x Chassis Fan Connector (4-pin)
  • 1 x CIR header
  • 1 x CPU Fan Header (4-pin)
  • 1 x Digital In/Out Pin Header
  • 1 x Digital In/Out Power Selection Jumper
  • 1 x Digital microphone header
  • 1 x FP Audio Header
  • 1 x HTPC Header
  • 1 x Internal Power Header
  • 1 x LVDS connector
  • 1 x Monitor Switch Header
  • 1 x Panel Power Jumper
  • 1 x Power LED Header
  • 2 x SATA III - 6Gb/s
  • 1 x SATA Power Connector
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 3 x USB 2.0 Header
  • 1 x USB 3.0 Header

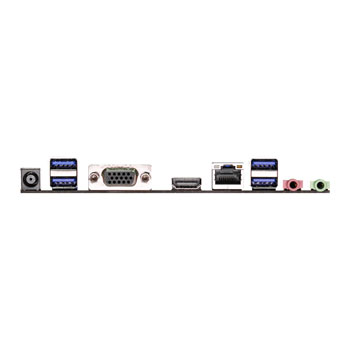

Back Panel I/O
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x DC-In Jack
  • 1 x Front Speaker (Supports SPDIF Optical)
  • 1 x HDMI
  • 1 x Mic-In
  • 4 x USB 3.0
