Scan code: LN114144 Manufacturer code: 90-MXBG30-A0UAYZ

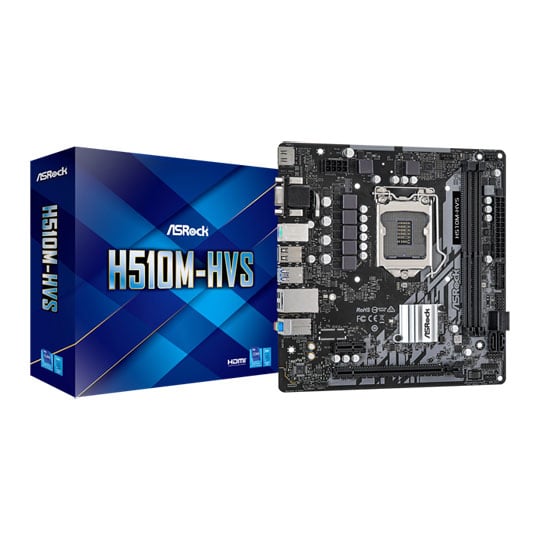

ASRock Intel H510M-HVS mATX Motherboard

ASRock H510M-HVS, Intel H510, S 1200, DDR4, PCIe 4.0, SATA3, GbE, USB 3.2 Gen1, Micro-ATX

MORE INFO
MORE INFO
Thumbnail 1 : ASRock Intel H510M-HVS mATX Motherboard Thumbnail 2 : ASRock Intel H510M-HVS mATX Motherboard Thumbnail 3 : ASRock Intel H510M-HVS mATX Motherboard Thumbnail 4 : ASRock Intel H510M-HVS mATX Motherboard
Scan code: LN114144 Manufacturer code: 90-MXBG30-A0UAYZ
Order now and get it tomorrow, Fri 27th May
£63.98
Add To Basket
Get it Tomorrow, 27 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 27th May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview

PCIe 4.0 Technology

H510 platform is able to support PCIe 4.0 technology that delivers higher performance, bandwidth and speed.


DUAL Graphics Outputs

Packed with a HDMI and D-Sub combo to support the most used connectors. Plus, HDMI port supports 4K resolution.


4K x 2K @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.


USB 3.2 Gen1 Ports

Packed with luxurious USB 3.2 Gen1 ports to give ultimate expansion capability for high speed devices.


Full Spike Protection

Prevents your motherboard’s components (USB, LAN, audio) from being damaged by voltage spikes.

Features

• Supports 10th Gen Intel® Core Processors and 11th Gen Intel® Core Processors.
• Supports DDR4 3200MHz (OC).
• 1x PCIe 4.0 x16, 1x PCIe 3.0 x1.
• Graphics Output Options: HDMI, D-Sub.
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec).
• 4x SATA3 ports.
• 4x USB 3.2 Gen1 (2x Rear, 2x Front).
• Realtek Gigabit LAN.

Specifications
Core Specifications
Edition H510M-HVS
Form Factor ATX
CPU Socket 1200
Chipset Intel H510
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3200
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • HDMI 2.0
Internal Connectivity
Expansion Slots
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Front Panel Audio Header
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x RJ-45 with LED
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 197 x 188 mm
Note
Additional Information
Scan Code LN114144
Model Number 90-MXBG30-A0UAYZ
GTIN 4710483934230
