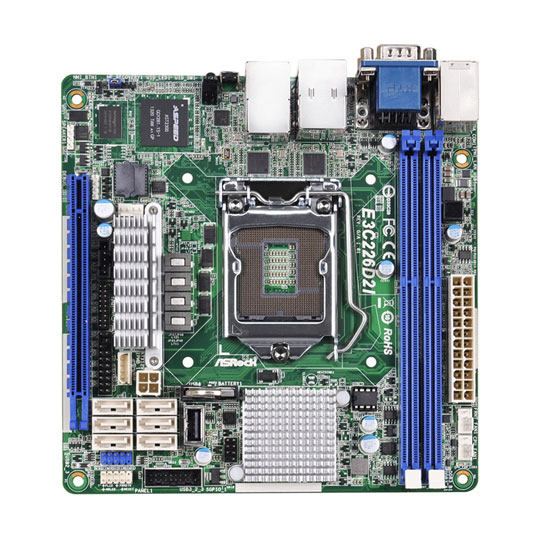

AsRock Intel Xeon Haswell Server/Workstation mini ITX Motherboard E3C226D2I

ASRock E3C226D2I, Intel C226, S 1150, DDR3 ECC, SATA III 6Gb/s, SATA RAID, PCIe 3.0 (x16), VGA, Dual GbE, COM, Mini ITX

ASRock
Scan code: LN56498 Manufacturer code: E3C226D2I Request call
£186.98Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview • Mini-ITX
• Single socket (LGA1150)
• Dual GLAN + BMC
• Great for Home/Office Server/Enterprise NAS
• 1U 2Node micro server possible Features • Mini ITX 6.7" x 6.7"
• Single socket H3 (LGA 1150)
• Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
• 2x DIMM DDR3 1600/1333, Max. 16GB
• 1 x PCIe 3.0 x16
• 6 x SATA3 by Intel C226 support RAID 0,1,5,10
• 2 x Intel i210, support Dual GLAN with teaming function
• ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
• 4 x USB 3.0 ports (2 rear + 2 via header )
• 5 x USB 2.0 ports (2 rear + 2 via header + 1 Type A)
Specifications
Core Specifications
Form Factor Mini-ITX
CPU Socket 1150
Chipset Intel C226 Express
RAM Memory Support
Memory Type DDR3
Memory Channel Dual (2)
Memory Type (ECC) ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR3 - 1333
  • DDR3 - 1600
Max. Memory Capacity 16GB
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support N/A
Crossfire Support N/A
On-Board Graphics Connectors D-Sub (VGA)
Internal Connectivity
Expansion Slots 1 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 3 x 4-pin Fan
  • 1 x 4-pin PCIe (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Serial (COM) Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.0 Header
External Connectivity
Network Interface Type
Network Chip/Modules
Rear I/O Connectors
  • 2 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Serial (COM)
  • 2 x USB 2.0
  • 2 x USB 3.0
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Customers also bought
TekSpek Guides
Intel Xeon
Intel Xeon
Date Issued: 20th Oct 2008

Intel introduced the industry’s first quad-core processor for mainstream servers on November 14th, 2006. Codenamed Clovertown, the quad-core 5300-series Xeons are based on Intel’s advanced Core microarchitecture and can be implemented in both single- and dual-processor systems.

Read More

Reviews
ASRock E3C226D2I, Intel C226, S 1150, DDR3 ECC, SATA III 6Gb/s, SATA RAID, PCIe 3.0 (x16), VGA, Dual GbE, COM, Mini ITX is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Excellent quality, works as expected I used this motherboard to build a fairly power efficient workstation and development machine. My requirements were for support for Haswell CPUs, ECC RAM, 6 SATA ports, USB 3, Intel NICs and mini-ITX form factor - which this motherboard fills perfectly. I equipped it with an Intel Xeon E3-1240L v3, 16GB ECC RAM (2x 8GB Crucial CT102472BD160B.18FED), an EVGA Nvidia GT 730 1GB graphics card, and Tascam US-2x2 audio interface. Initially had some stability problems when the PCIe graphics card was installed (random freezes, at load and idle) but this was resolved by updating the BIOS to version 2.10. The BIOS version 2.10 release notes mention "Improve PCIe cards compatibility". This board does have onboard graphics - an Aspeed AST2300 which needs some extra drivers to use with Xorg, but is fairly limited performance and feature-wise. This is fine for servers, but I wanted to use this machine for general desktop tasks, driving a 2560x1440 display, so I added a Nvidia GT 730 which works well. All the hardware is supported in a standard Linux kernel, CPU temperature, EDAC (ECC RAM error reporting), Intel I210 Ethernet, and IPMI drivers all standard and working fine (no ECC corrected/uncorrected errors reported yet, but edac-util seems to work). Booting Linux in UEFI mode works fine. Overall, very impressed with the features for a little mini-ITX board. Support for updates seems to be good so far, as Asrock have just added support for Broadwell Xeon processors in the latest BIOS.
Date published: 2015-06-25
