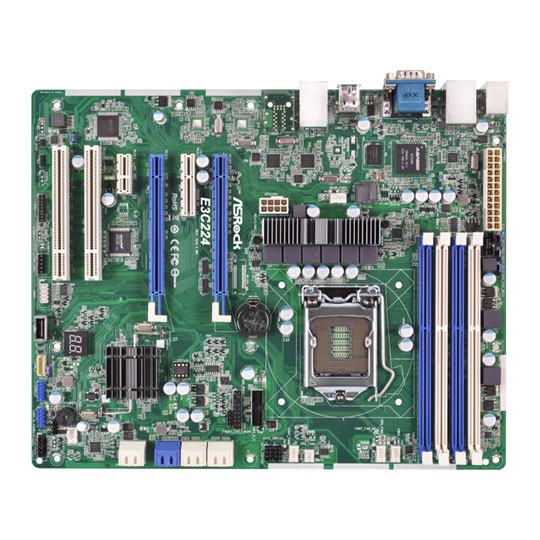

E3-C224 AsRock Xeon Server Workstation Motherboard

AsRock E3-C224 Xeon Workstation Server Motherboard, 2x PCIe 3.0 (16x), Dual GbE LAN, ATX

ASRock
Scan code: LN72517 Manufacturer code: E3-C224 Request call
£137.99Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview ASRock E3C224 Server/Workstation Board (Socket 1150, Intel C224, DDR3, S-ATA 600, ATX) Features • ATX 12" x 9.6"
• Single socket H3 (LGA 1150)
• Supports New 4th and 5th Generation Intel XeonE3-1200 v3/v4/ Core™ i3/Pentium/Celeron Processors (Socket 1150)
• 4 x DIMM DDR3 1600/1333 ECC, max. 32GB
• 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x4, 1 x PCIe 2.0 x1, 2 x PCI
• 4 x SATA3, 2 SATA2 by Intel C224 support RAID 0,1,5,10
• 2 x SATA3 by Marvell 9172 support RAID 0,1
• 2 x Intel i210, support Dual GLAN
• ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
• 4 x USB 3.0 ports (2 rear + 2 via header )
• 7 x USB 2.0 ports (2 rear + 4 via header + 1 Type A)
Specifications
Core Specifications
Form Factor ATX
CPU Socket 1150
Chipset Intel C224
RAM Memory Support
Memory Type DDR3 ECC
Memory Channel Dual (2)
Memory Type (ECC) ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR3 - 1333
  • DDR3 - 1600
Max. Memory Capacity 32GB
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support N/A
Crossfire Support N/A
On-Board Graphics Connectors D-Sub (VGA)
Internal Connectivity
Expansion Slots
  • 2 x PCI
  • 1 x PCIe 2.0 x1
  • 2 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x4
SATA Support SATA3 / SATA2
RAID Support via SATA
Storage Mode Support
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O 1 x TPM Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 2 x Intel® I210 (Gigabit LAN)
Rear I/O Connectors
  • 3 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Serial (COM)
  • 2 x USB 2.0
  • 2 x USB 3.0
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
