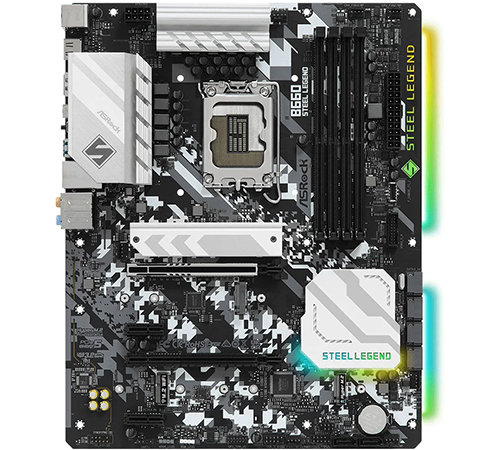

ASRock Intel B660 Steel Legend ATX Motherboard

ASRock B660 Steel Legend, Intel B660, S 1700, DDR4, SATA3, PCIe 5.0, 3x M.2, 2.5GbE, USB 3.2 Gen2x2, ATX

Thumbnail 1 : ASRock Intel B660 Steel Legend ATX Motherboard Thumbnail 2 : ASRock Intel B660 Steel Legend ATX Motherboard Thumbnail 3 : ASRock Intel B660 Steel Legend ATX Motherboard Thumbnail 4 : ASRock Intel B660 Steel Legend ATX Motherboard
Scan code: LN122915 Manufacturer code: 90-MXBH20-A0UAYZ
Order in the next 27 mins and get it tomorrow
£159.98
Get it Tomorrow, 06 JulIn stock
From £13.75 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £13.75
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £159.98
Total inc. interest: £165.01
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 6th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Intel B660 Steel Legend ATX Motherboard from ASRock

B660 Pro RS

DISCOVER THE NEXT GENERATION OF GAMING Modern and futuristic, with the attractive specifications and perfect balance, the Steel Legend Edition is the perfect solution for the latest motherboard technology. With support for the latest 12th Gen Intel Core processors and DDR4 memory, you'll have everything you need for a new custom build.

Intel B660Chipset

1700CPU Socket

DDR4Memory Type

ATXForm Factor

Power Like no Other

4K Recording

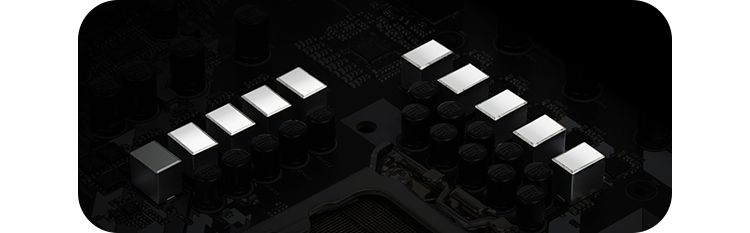

9 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

Nahimic Audio

4K Recording

be immersed in soundWhether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Add your Own Style

4K Recording

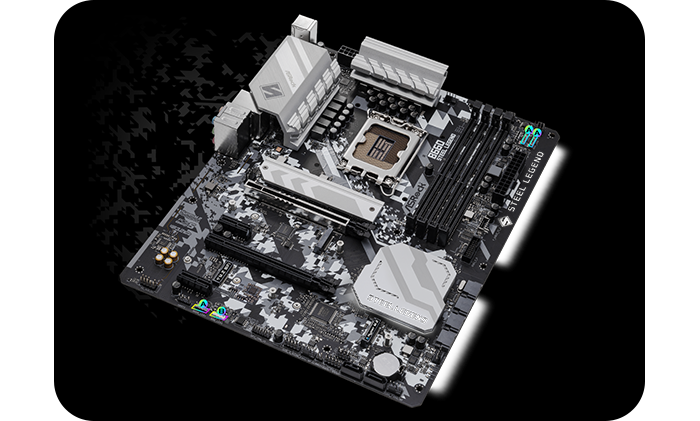

POLYCHROME RGBIn addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Speeds that can't be Beat

4K Recording

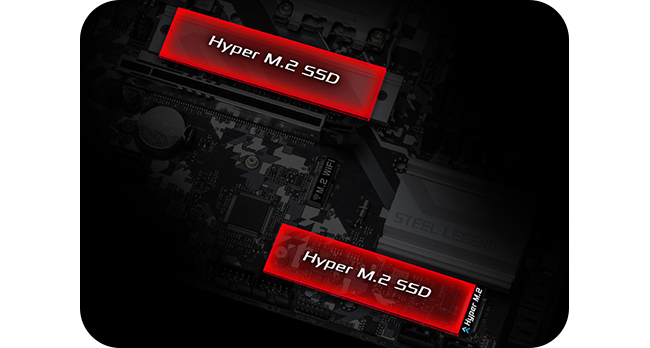

High Speed M.2 SolutionThis motherboard is capable of accommodating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Making Sure you Stay Connected

4K Recording

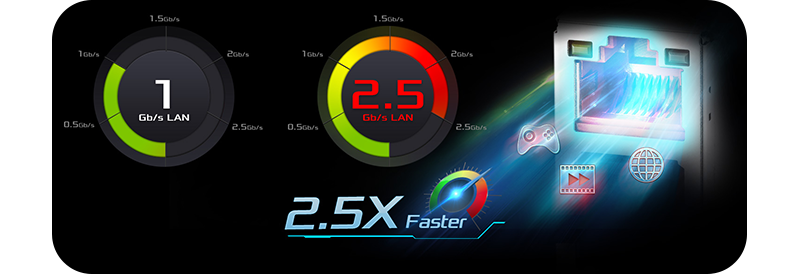

Dragon 2.5 Gb/s LANThe intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Specifications
Core Specifications
Edition B660 Steel Legend
Form Factor ATX
CPU Socket 1700
Chipset Intel B660
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 5000+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4 (DSC)
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30 (Supports WiFi/Bluetooth Cards)
  • 1 x M.2, 22-60/80, PCIe Gen3/SATA
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80/110 PCIe Gen 4x4
  • 2 x PCIe 3.0 x1
  • 2 x PCIe 5.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0 (SATA only)
  • RAID 1 (SATA only)
  • RAID 10 (SATA only)
  • RAID 5 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel USB Type-C Header
  • 1 x RGB LED connector
  • 5 x System Fan/Water Pump Header
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Dragon RTL8125BG (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Bass Speaker Out
  • 1 x BIOS Flashback Button
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45 with LED
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-C
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 30.5 x 24.4 mm
Note
Additional Information
Scan Code LN122915
Model Number 90-MXBH20-A0UAYZ
GTIN 4710483937057
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
