Scan code: LN91358 Manufacturer code: 90-MXB8F0-A0UAYZ

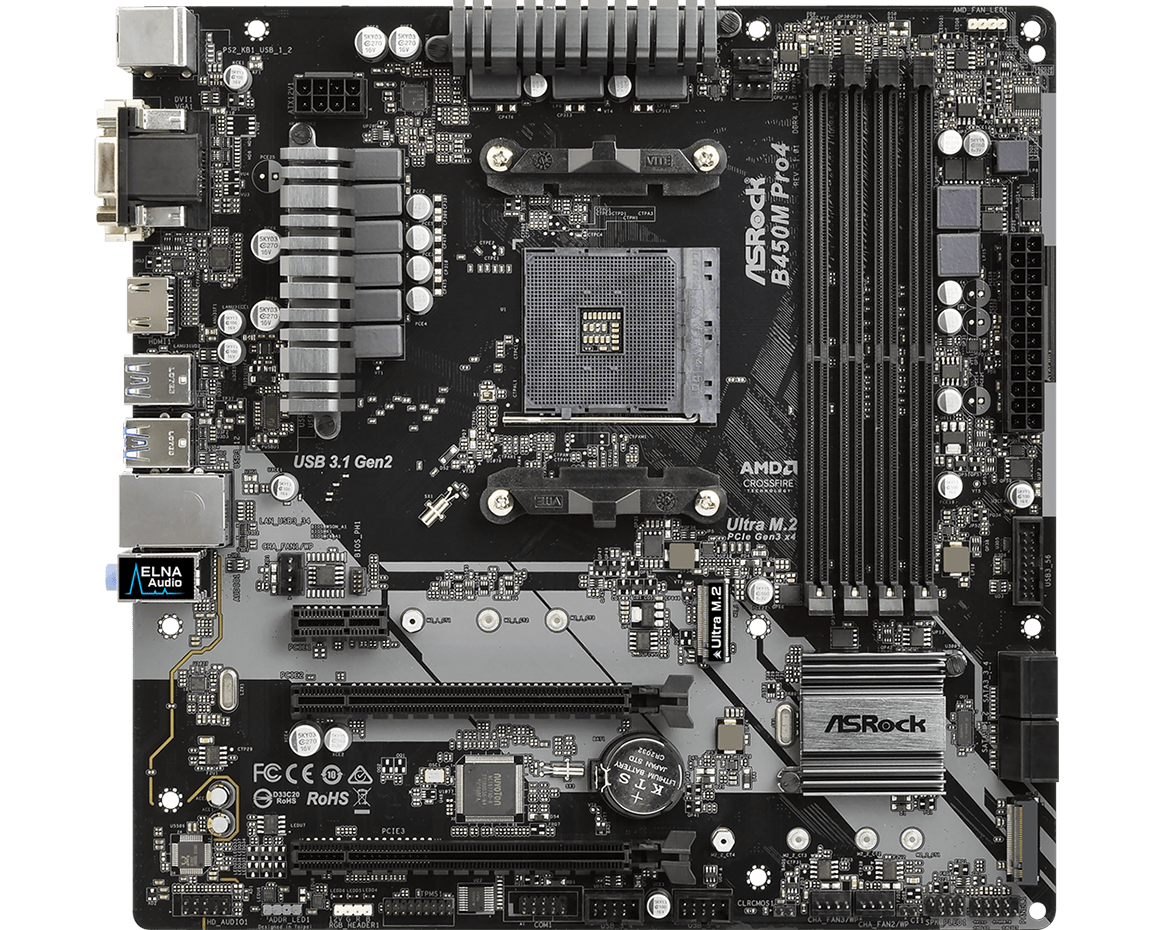

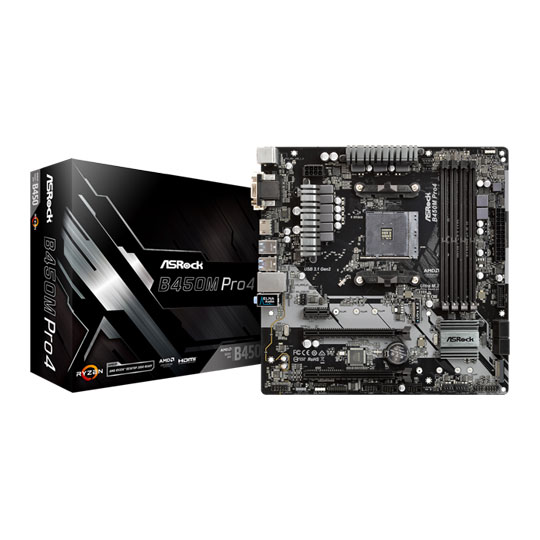

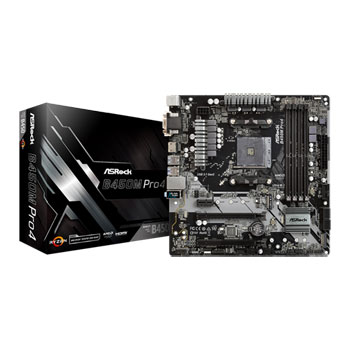

ASRock AMD B450M Pro4 Ryzen MicroATX Motherboard

ASRock B450M Pro4, AMD B450, AM4, DDR4, 2x M.2, 2-Way CrossFire, Realtek GbE, USB 3.1 Gen2 A+C, MicroATX

Thumbnail 1 : ASRock AMD B450M Pro4 Ryzen MicroATX Motherboard Thumbnail 2 : ASRock AMD B450M Pro4 Ryzen MicroATX Motherboard Thumbnail 3 : ASRock AMD B450M Pro4 Ryzen MicroATX Motherboard Thumbnail 4 : ASRock AMD B450M Pro4 Ryzen MicroATX Motherboard
Scan code: LN91358 Manufacturer code: 90-MXB8F0-A0UAYZ
RRP: £78.98
£74.48Item currently awaiting an ETA
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.

Dual M.2 For SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.

Dual USB 3.1 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

2oz Copper
It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.

Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. Plus the HDMI port supports 4K resolution.
*Supported with A-Series APUs only.

Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. Features • AMD AM4 Socket.
• Supports DDR4 3200+ (OC).
• 2 PCIe 3.0 x16, 4 PCIe 2.0 x1.
• AMD Quad CrossFireX™.
• Graphics Output: HDMI, DVI-D, D-Sub.
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps.
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3).
• 2 USB 3.1 Gen2 (Rear Type A+C).
• 6 USB 3.1 (2 Front, 4 Rear).
• Realtek Gigabit LAN.
Specifications
Core Specifications
Edition B450M Pro4
Form Factor MicroATX
CPU Socket AM4
Chipset AMD B450
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 2933(OC)
  • DDR4 - 3200+(OC)
Max. Memory Capacity 64GB
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2230/2242/2260/2280, SATA
  • 1 x M.2, 2242/2260/2280, PCIe 3.0
  • 1 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x AMD Fan LED Header
  • 3 x Chassis Water Pump/Fan Connector
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 1 x RGB Header
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 244 x 244 mm
