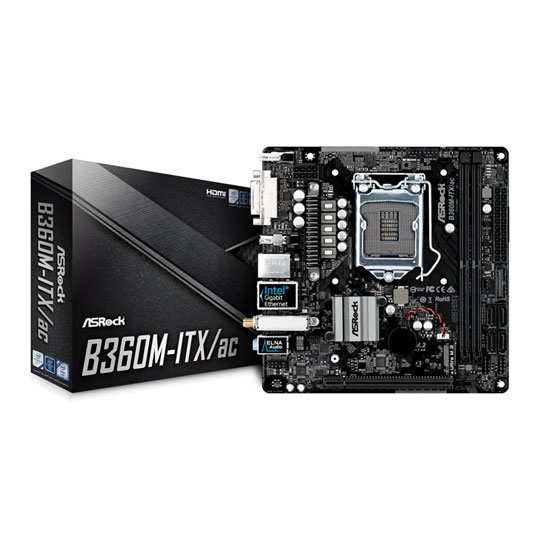

ASRock Intel B360M-ITX/ac Coffee Lake Mini ITX Motherboard

ASRock B360M-ITX/ac, Intel B360, S 1151, DDR4, SATA3, M.2, Intel GbE, ac WiFi, BT4.2, USB 3.1 Gen2 A, Mini-ITX

Thumbnail 1 : ASRock Intel B360M-ITX/ac Coffee Lake Mini ITX Motherboard Thumbnail 2 : ASRock Intel B360M-ITX/ac Coffee Lake Mini ITX Motherboard Thumbnail 3 : ASRock Intel B360M-ITX/ac Coffee Lake Mini ITX Motherboard Thumbnail 4 : ASRock Intel B360M-ITX/ac Coffee Lake Mini ITX Motherboard
Scan code: LN88953 Manufacturer code: 90-MXB790-A0UAYZ
£97.49Item currently awaiting an ETA
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview ASRock B360M-ITX/ac Motherboard
For users that need the most compact platform available for the brand new Intel 8th Gen. Coffee Lake CPUs; enter the ASRock B360M-ITX/ac Mini-ITX Motherboard. Utilising Intel’s latest chipset; B360, the ASRock B360M-ITX/ac Motherboard crams a wealth of features designed to deliver fantastic performance & configurability into the ultra-compact Mini ITX form-factor, whilst bringing out the very best from your chosen Coffee Lake Processor. An Ultra M.2 Slot support blazingly fast PCIe NVMe SSDs for the ultimate in storage performance or SATA-based M.2 SSDs for more budget conscious system builders. Intel Gigabit Ethernet provides excellent LAN performance, while the inclusion of on-board 802.11ac WiFi ensures your PCIe 3.0 x16 slot stays available for a discrete GPU, & all USB ports reserved for other peripherals, instead of being taken up by a 3rd party Wireless adapter. Home Theatre PC Builders are spoilt for choice with a HDMI port, DVI-I port, & DisplayPort on the rear panel, enabling users to get the most out of Intel’s improved UHD Graphics on the new 8th Gen Coffee Lake CPUs, & keeping systems slim. In addition, the Two USB 3.1 Gen2 Type-A ports on the backpanel ensure the ASRock B360M-ITX/ac is ready for connection to 10Gbps USB devices arriving in the near future.

Ultra M.2 (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit.

Triple Monitor
Choose up to three display interfaces to connect monitors and use them simultaneously.

Intel® LAN
Better performance, lowered CPU utilization and enhanced stability.

Dual Band 802.11ac WiFi
Besides the on-board LAN port, users may also choose 802.11ac (2.4/5 GHz) wireless connections.

2x USB 3.1 Gen2 Ports
Packed with luxurious 2x USB 3.1 Gen2 ports to give ultimate expansion capability for high speed devices.

Dual-Stack MOSFET (DSM)
More efficient power supply for the CPU Vcore.

Super Alloy Power
• Premium 60A Power Choke.
• Dual-Stack MOSFET (DSM).
• Sapphire Black PCB.
• High Density Glass Fabric PCB. Features • Supports 8th Generation Intel® Core Processors (Socket 1151).
• Supports DDR4 2666.
• 1 PCIe 3.0 x16.
• Graphics Output Options: HDMI, DVI-I, DisplayPort.
• 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps.
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3).
• 2 USB 3.1 Gen2 10Gb/s (Rear).
• 4 USB 3.1 Gen1 (2 Front, 2 Rear).
• Intel® Gigabit LAN.
• Intel® 802.11ac WiFi + BT 4.2.
Core Specifications
Edition B360M-ITX/ac
Form Factor Mini-ITX
CPU Socket 1151
Chipset Intel B360
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 32GB (2x16GB)
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • DVI-I
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 1 x M.2, 22-80, PCIe Gen3/SATA
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via Not Supported
Storage Mode Support
  • AHCI
  • Hot Plug
  • Intel Optane Memory Ready
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector, Max. 1A (12W)
  • 1 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel 802.11ac WiFi/ BT4.2 Module (433Mbps)
  • 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x DisplayPort 1.2
  • 1 x DVI-I
  • 1 x Front Speaker Out
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 3.1 Gen1 Type-A
  • 2 x USB 3.1 Gen2 Type-A
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 170 x 170 mm
Additional Information
Scan Code LN88953
Model Number 90-MXB790-A0UAYZ
GTIN 4717677335163
