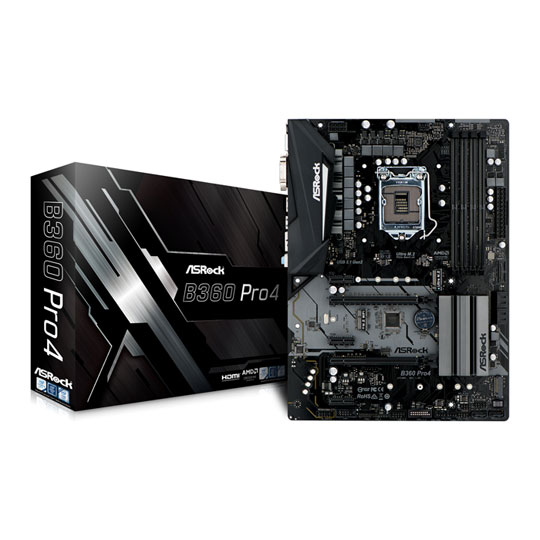

ASRock Intel B360 Pro4 Coffee Lake ATX Motherboard
ASRock B360 Pro4, Intel B360, S 1151, DDR4, SATA3, Dual M.2, 2-Way CrossFire, Intel GbE, USB 3.1 Gen2 A+C, ATX
By DPD On 24th Jul 2018
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
Get a solid base platform for your brand new Intel 8th Gen. Coffee Lake CPU with the ASRock B360 Pro4 ATX Motherboard. Utilising Intel’s latest chipset; B360, the ASRock Pro4 Motherboard packs a range of feature designed to deliver fantastic performance & configurability in the latest desktop PCs, whilst bringing out the very best from your chosen Coffee Lake Processor. An Ultra M.2 Slot supports blazingly fast PCIe NVMe SSDs for the ultimate in storage performance, while another M.2 Slot also accepts PCIe NVMe SSDs but at x2 speed. For the more budget conscious system builders both slots also support SATA-based M.2 SSDs. With a pair of PCI 3.0 x16 slots, this Motherboard supports up to Two AMD Graphics Cards in 2-Way CrossFire, for users who feel one graphics card is not enough. In addition, the inclusion of both a USB 3.1 Gen2 Type-A & Type-C connector on the backpanel, ensure the ASRock Pro4 is ready for a wide range of SuperSpeed+ peripherals arriving in the near future.
Dual M.2 for SSD
One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit. The other one supports PCIe Gen3 x2.
Choose up to three display interfaces to connect monitors and use them simultaneously.
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that rede-nes a new standard of high performance and responsiveness.
ASRock Intel® 4-Layer Memory POOL Technology
POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.
Better performance, lowered CPU utilization and enhanced stability.
Super Alloy Power
• Premium 50A Power Choke.
• Sapphire Black PCB.
• High Density Glass Fabric PCB. Features • Supports 8th Generation Intel® Core™ Processors (Socket 1151).
• 10 Power Phase Design.
• Supports DDR4 2666.
• 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E).
• AMD Quad CrossFireX™.
• Graphics Output Options: HDMI, DVI-D, D-Sub.
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps.
• 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen3 x2 & SATA3).
• 2 USB 3.1 Gen2 (Rear Type-A+C), 4 USB 3.1 Gen1 (2 Front, 2 Rear).
• Intel® Gigabit LAN.
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||64GB (4x16GB)|
|Audio||Realtek ALC892 7.1 HD Audio|
|Primary GPU Interface||PCIe 3.0 (x16)|
|NVIDIA SLI Support||Not Supported|
|AMD CrossFire Support||2-Way CrossFire|
|On-Board Graphics Connectors||
|SATA Support||SATA3 / M.2|
|RAID Support via||Not Supported|
|Storage Mode Support||
|Network Interface Type||Wired Gigabit LAN (10/100/1000)|
|Network Chip/Modules||1 x Intel® I219V (Gigabit LAN)|
|Rear I/O Connectors||
|Other Motherboard Specifications|
|Board Dimensions||305 x 224 mm|
