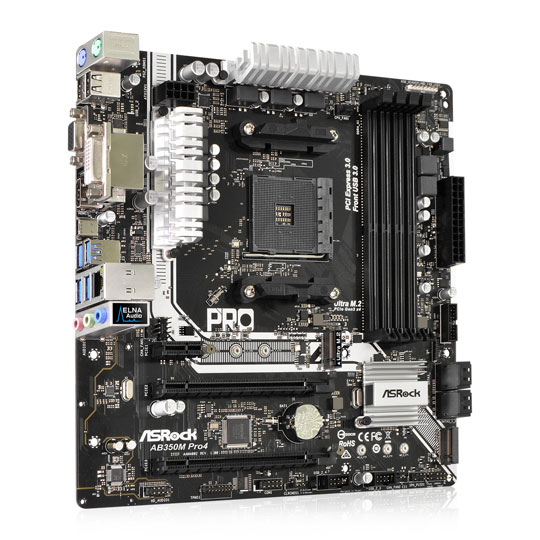

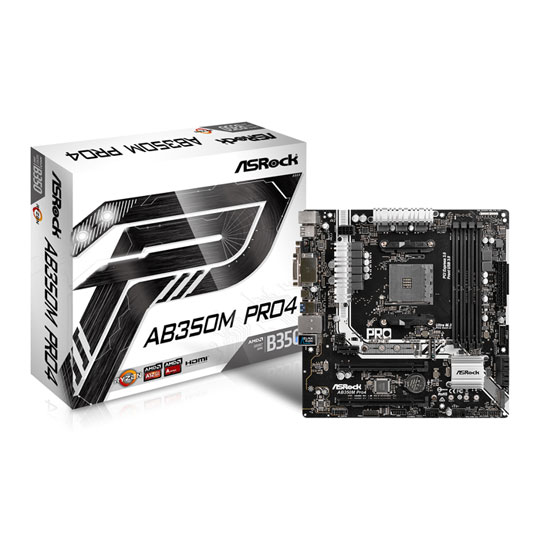

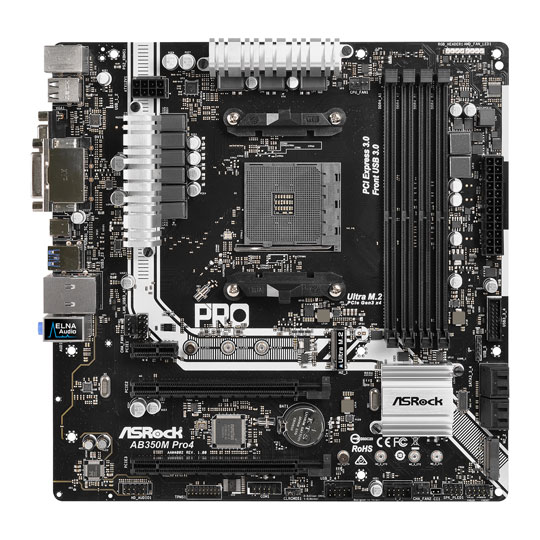

ASRock AMD AM4 Ryzen AB350M Pro4 Micro ATX Motherboard
Scan code: LN79072
Manufacturer code: 90-MXB520-A0UAYZ
End Of Life
ASRock AMD AM4 Ryzen AB350M Pro4 Micro ATX Motherboard
ASRock AB350M Pro4, AMD B350, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), Realtek LAN, USB 3.0 A+C, MicroATX
Scan code:
LN79072
Manufacturer code:
90-MXB520-A0UAYZ
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Product Overview
Dual M.2 For SSD
One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. The other one supports SATA3 6Gb/s M.2 modules.
Triple Monitor
Choose up to three display interfaces to connect monitors and use them simultaneously.
* AMD A-series APUs Only.
Digi Power
For smooth and efficient CPU Vcore voltage.
ELNA Audio Caps
The 3uA leakage current of ELNA audio caps is the key to reduce noise levels and satisfy even the pickiest audiophiles.
USB Type-C
A latest reversible USB Type-C design that ¬fits the connector either way.
Super Alloy
• Premium 42A Power Choke.
• Sapphire Black PCB.
• High Density Glass Fabric PCB.
• 2oz Copper PCB. Features • ASRock Super Alloy.
• Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge).
• Supports DDR4 2666.
• 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1.

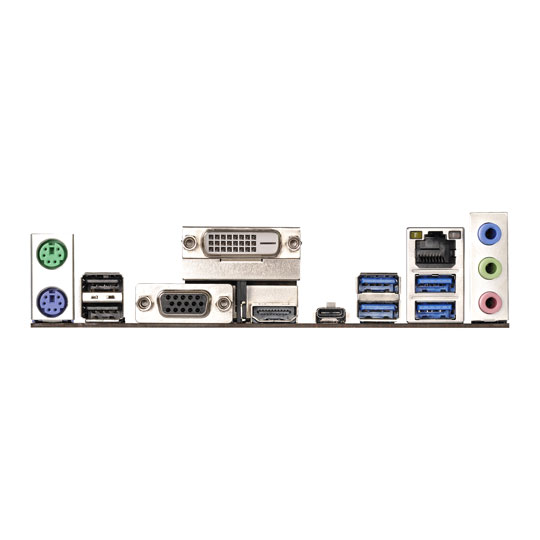

• Graphics Output: HDMI, DVI-D, D-Sub.
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps.
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3).
• 7 USB 3.0 (1 Type-C, 2 Front, 4 Rear).
• Realtek Gigabit LAN.
Please Note:
This motherboards graphics outputs are intended for use with future AMD processors with on-board graphics. Ryzen 7 CPUs do not feature on-board graphics, so when using these CPUs, the motherboards graphics ports will be disabled, and as such a discrete graphics card will be required for operation.
One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. The other one supports SATA3 6Gb/s M.2 modules.
Triple Monitor
Choose up to three display interfaces to connect monitors and use them simultaneously.
* AMD A-series APUs Only.
Digi Power
For smooth and efficient CPU Vcore voltage.
ELNA Audio Caps
The 3uA leakage current of ELNA audio caps is the key to reduce noise levels and satisfy even the pickiest audiophiles.
USB Type-C
A latest reversible USB Type-C design that ¬fits the connector either way.
Super Alloy
• Premium 42A Power Choke.
• Sapphire Black PCB.
• High Density Glass Fabric PCB.
• 2oz Copper PCB. Features • ASRock Super Alloy.
• Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge).
• Supports DDR4 2666.
• 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1.
• Graphics Output: HDMI, DVI-D, D-Sub.
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps.
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3).
• 7 USB 3.0 (1 Type-C, 2 Front, 4 Rear).
• Realtek Gigabit LAN.
Please Note:
This motherboards graphics outputs are intended for use with future AMD processors with on-board graphics. Ryzen 7 CPUs do not feature on-board graphics, so when using these CPUs, the motherboards graphics ports will be disabled, and as such a discrete graphics card will be required for operation.
