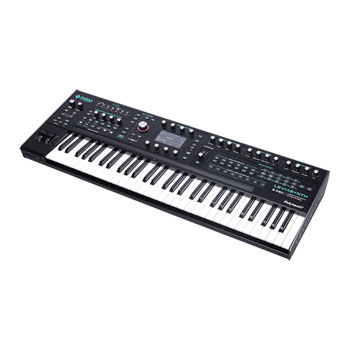

ASM Leviasynth Hybrid Algorithmic Synthesizer Keyboard
ASM - Leviasynth, 61-Key Hybrid Algorithmic Synthesizer, 16 Voices with 8 Oscillators Per Voice
Email me when the availability or price changes
Finance this product
- From £78.92 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £69.91 / month (APR 15.9%)
Hybrid Algorithmic Synthesizer Keyboard

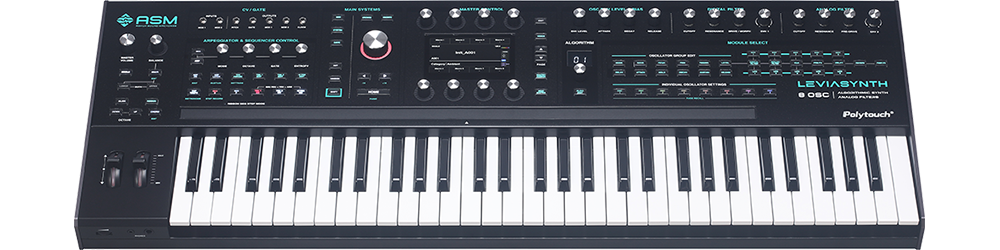

ASM - Leviasynth
a dream synthesizerThe ASM Leviasynth offers 16 voices with 8 oscillators per voice and a combination of analogue and digital filters, the Leviasynth is truly a sound designer's dream synthesizer. The 61-note Polytouch polyphonic aftertouch keybed together with the 4-octave ribbon controller offers an unsurpassed playing experience, and the Leviasynth is also MPE compatible.
The multi-colour touch screen and intuitive user interface make patch programming a breeze. The oscillators can be arranged in groups known as algorithms, which define how they affect each other. There are 144 preset algorithms available, and one additional algorithm can also be customized per patch. In addition, algorithm morph offers a nearly unlimited number of configurations for the oscillators. There are over 300 waveforms available for each oscillator, and 7 independent oscillator modes for maximum timbral diversity.
Amazing Features
• 61-note Polytouch polyphonic aftertouch keys
• Multi-colour touch screen and intuitive user interface
• Includes both analogue and digital filters
• 16 voices with 8 oscillators per voice
• Independent oscillator modes
• 4-octave ribbon controller
• 3-track sequencer
• MPE-compatible
Advanced Technology
world-class presetsThe 3-track sequencer records both note and macro automation, and the arpeggiator features a new Entropy function for advanced realtime note manipulation. Single mode allows for all 16 voices to be active per patch, and Multi mode allocates the voices into two parts of 8 voices each, where layers or splits are easily set up. The free ASM Patch Manager for Mac and PC enables easy firmware updating and patch management.
512 Single mode and 256 Multi mode patches are included in the factory presets, all created by world class sound designers. A total of 1024 patch locations for Single mode and 640 patch locations for Multi mode are available. Oscillator configurations include Phase Modulation, Frequency Modulation, Pulse Width Modulation, HTE Sync, and three types of Phase Distortion. Each of the 8 oscillators has its own volume envelope, in addition to the shared 5 envelopes and 5 LFOs, all freely routable in the powerful 32-slot modulation matrix.
The digital Hydrasynth-style multimode filter and the analogue low-pass filter, featuring both pre-drive saturation and self-oscillation, together with two insert effects and two master effects, make for near-infinite tone-shaping possibilities.
The Tech Spec
| Features | Specification | Type | Hybrid Synthesizer |
|---|---|
| Sound Engine Type | Algorithmic |
| Analogue/Digital | Digital and Analogue |
| Keys | 61 ASM Polytouch Polyphonic Aftertouch Keyboard, On/Off Velocity-sensitive |
| Polyphony | 16 voices (Full/Layer/Split) |
| Number of Patches | 1024 Single mode patches, 640 Multi mode patches |
| Oscillators | 8 x oscillators (over 300 waveforms) |
| LFO | 5 per voice (Sine, Triangle, Saw Up, Saw Down, Square, Pulse27%, Pulse13%, S&H, Noise, Random, Step), Tempo syncable, Semitone Lock |
| Envelopes | 1 per oscillator plus 5 per voice, Tempo syncable, up to 4 variable trigger sources |
| Analogue Filter | 4-pole Low Pass (24 dB/octave) |
| Digital Filter | 18 types (LP-BP-HP, LP-NO-HP, LP Ldr12, LPLdr24, LP Fat12, LP Fat24, LP Gate, LP MS20, HP MS20, LP 3-Ler, BP 3-Ler, HP 3-Ler, LP Stn12, BP Stn12, HP Stn12, LP 1 Pole, LP 8 Pole, Vowel) |
| Effects | 9 Insert Effects, 5 Delays, 4 Reverbs |
| Effects Types | Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Compressor, Distortion, Delay, Reverb |
| Arpeggiator | 9 modes (Up, Down, Up&Down, Up/Down, Order, Random, RandOnce, Chord, Phrase), plus 9 variables (Entropy, Octave Mode/Range, Gate, Length, Swing, Ratchet, Chance, Step Offset) |
| Other | Mod Matrix (32 slots), Macro Controllers (8), Favourites (unlimited), Randomizer (two variable types), MPE compatibility, Microtuning |
| Audio Outputs | 2 x 1/4" Balanced (L/Mono, R) |
| Headphones | 1 x 1/4", 1 x 1/8", Separate volume control |
| USB | 1 x Type B |
| MIDI I/O | In/Out/Thru |
| Pedal Inputs | 2 x 1/4" (expression, sustain) |
| Other I/O | 2 x 1/8" Inputs (Mod 1, Mod 2), 5 x 1/8" Outputs (CV, Gate, Mod 1, Mod 2, Clock) |
| Power Supply | 12V 2A DC switchable power supply |
| Dimensions | Width: 38" / 96.5cm Height: 4.55" / 11.55cm Depth: 13.62" / 34.6cm |
| Weight | 26.9lbs / 12.2kg |
