Hydrasynth Keyboard

ASM - Hydrasynth Keyboard 8-Voice Polyphonic Wave-Morphing Synthesizer,49 keys,ribbon controller,cv/gate

Thumbnail 1 : Hydrasynth Keyboard Thumbnail 2 : Hydrasynth Keyboard Thumbnail 3 : Hydrasynth Keyboard Thumbnail 4 : Hydrasynth Keyboard
Scan code: LN105505 Manufacturer code: HYRDASYNTH-KEYBOARD
£1,259.00
FREE DELIVERY ON YOUR ENTIRE BASKET
Order now and get it tomorrow, Thu 1st Oct
From £26.23 / month (APR 0%)
Monthly Payment: £104.92
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £1,259.00
Total inc. interest: £1,259.00
Monthly Payment: £52.46
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £1,259.00
Total inc. interest: £1,259.00
Monthly Payment: £34.98
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £1,259.00
Total inc. interest: £1,259.00
Monthly Payment: £26.23
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £1,259.00
Total inc. interest: £1,259.00
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 1st Oct to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Explore New Realms of Creativity with the
Hydrasynth 49-Note Keyboard

Hydrasynth keyboard

49-key Polyphonic Wave Morphing Synthesizer Introducing the vastly powerful ‘Hydrasynth’ 49-key Polyphonic Wave Morphing Synthesizer from ASM.

The Hydrasynth Keyboard boasts 8-voice polyphony, ‘Mutator’ waveshaping, and a 32-slot modulation matrix to deliver a genuinely revolutionary, virtual analogue synthesizer, for the revolutionary music producer. The Hydrasynth Keyboard easily rivals the sonic capabilities of popular and renowned software synthesizer plug-ins, each of the Hydrasynth’s voices sports 3 WaveScan oscillators to offer an impressive 219 unique waveforms, with a total of 4 Mutators for unparalleled waveshaping potential.

The Hydrasynth Keyboard has near limitless capability for the creation of nuanced and nonlinear sounds – the 5 ADSR envelope generators offer delay and hold and can have either linear or exponential curves in between stages, whilst the 5 onboard LFO’s deliver upto 11 waveshapes plus delay, fade in and smoothing.

Consider the 49-note keyboard, customisable PolyTouch response, expressive ribbon controller, alongside CV/Gate connectivity, and the ASM Hydrasynth Keyboard really does start to look like the innovative and versatile master controller your synthesizer setup has been patiently waiting for.

Vast Modulation Capabilities

Hydrasynth keyboard Lifestyle

create custom, unique waveshapesVia its vast 32-slot modulation matrix, the Hydrasynth Keyboard gives you all the tools you need to design complex, intricate and eloquent sounds. Creative synthesists are sure to be drawn in by the Hydrasynth’s envelope generators (5 per voice), which offer delay and hold in addition to ADSR stages. Each stage of the envelope is able to sweep through exponential and logarithmic curves, which paves the way for vast creative opportunity with evolving modulations.

As with the majority of the Hydrasynth Keyboard's functionalities, envelopes are able to be locked to BPM to allow for tempo-synced modulations. Once combined with the looping function, you can use the envelopes as LFO’s with interesting waveshapes. Hydrasynth Keyboard offers 5 LFO’s per voice with 11 waveshapes, this is inclusive of the 8-step LFO which enables you to design your own custom, unique waveshapes.

Discover the Amazing Potential of 'Polytouch'

back

integrated ribbon controller
for superb expression
No matter if you’re performing or whether you’re recording, Hydratouch brings a spectacularly expressive playing experience to your fingertips, even more so when you delve into the Polytouch capabilities.

‘Polytouch’ is a new method of polyphonic aftertouch sensing. Delivering extensive control over aftertouch curves, offsets and release times, this gives you huge creative potential. The integrated ribbon controller expands performance options even further – control pitch bend or modulation amount.

There's even a Theremin mode which allows for melodies to be played on the ribbon controller against whatever you're playing on the keyboard!

Real-time Control via 8 Macro Controls

Hydrasynth Keyboard Parameters

170 modulation destinationsPerhaps one the most popular facets of software synthesizers is the option to control numerous parameters simultaneously via macro controls. The Hydrasynth Keyboard hands you this creative power in hardware form.

It’s possible to customise the 8 macro controls to control up to 8 destinations at the same time. With a total of 170 modulation destinations to explore, it’s easy to utilise the macro controls to warp between completely distinct sound variations on the fly.

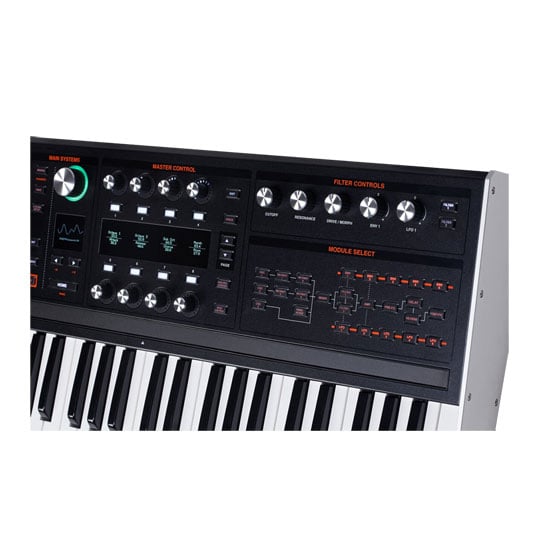

Deep Synthesis with an Intuitive Interface

Hydrasynth Keyboard Modules

incredibly intuitive interfaceThe Hydrasynth Keyboard's engine is spectacular in its power, but this doesn’t mean that it’s complex in its operation, quite the opposite infact, it’s simple to locate and tweak the parameters. On the front panel, you’ll see a graphic representation of the audio chain, with buttons to select each individual section (individual oscillators, mixer, effects and so forth).

Choosing a section brings its associated parameters to the display, with 8 encoders ready to tweak. Each section on the Hydrasynth Keyboard is able to be accessed with the press of a button, meaning there’s no need to delve deep into complex menus.

Just some of the Powerful Features onboard the Hydrasynth

THE SYNTHESIST'S DREAMThe Hydrasynth Keyboard is the exact same sound engine as the Hydrasynth Keyboard. The engine is a sound designers dream come true, as well as a performing musicians ideal. The sound engine has been designed for maximum flexibility. Check out just some of the killer features onboard this hugely powerful synthesist’s dream.

down

Mixer/ filter routing3 Oscillators are fed into a mixer along with the Noise generator and Ring Modulator. The Mixer allows you to mix levels as well as pan the input source. The filters can be set to be parallel or series for ultimate flexibility. ​

up

Oscillators3 oscillators allow you to choose from a selection of 219 single cycle waveforms. This mode allows you to pick and choose 8 waves, from the bank of 219, arrange them in the order you want, and then morph from one to another. ​

up

FiltersThe Hydrasynth has two filters that can be configured in series or parallel. Filter 1 has 11 different filter models, giving you multiple options for tailoring your sound. Filter 2 is a 12db per octave has a continuous sweep from Low pass to bandpass to high pass. ​ ​

up

EnvelopesAn advanced sound engine needs plenty of modulation sources. ASM's 6 stage envelopes feature Delay, Attack, Hold, Decay, Sustain and Release stages. You can also loop the envelopes to create LFO’s whose shape can be voltage controlled in the modulation matrix.

down

Mixer/ filter routingWith 32 user definable modulation routings, you will have plenty of ways to use the 29 modulation sources and 155 modulation destinations. ​

up

Polytouch™ keybedThe new ASM Polytouch® keybed allows not only the standard velocity and aftertouch found on other keybeds but we support fully polyphonic aftertouch. ​ ​

up

CV/GATE - MIDI - USBThere is the standard MIDI and USB/MIDI interfaces on the synth but we go deeper and allow the use of CV/GATE interfaces for connecting to the modular world. ​ ​

up

EnvelopesThe arpeggiator allows for standard note arpeggiations but also has a phrase arpeggio built-in. Parameters like RATCHET and CHANCE will generate insane rhythmic patterns.

A Visual Overview of the Hydrasynth Keyboard from ASM

see what the hydrasynth can do for you!Click below and let Glen Darcey of ASM take you on a tour of the features of the new, super impressive Hydrasynth Keyboard and Hydrasynth Desktop synthesizers.

The Tech Spec

Features Specification
Type Keyboard Synthesizer
Sound Engine Type(s) Wave Morphing Synthesis (wavetable, linear FM, wave PWM, subtractive)
Analogue/Digital Digital
Number of Keys 49
Type of Keys Synth, Full-size
Aftertouch Polyphonic Aftertouch
Other Controllers Pitchbend, Mod wheel, Multi-function Ribbon Strip
Polyphony 8 Notes
Presets 640 Program Locations (5 banks x 128 Patch Memories)
Oscillators 3 x Wavescan Oscillators (219 waveforms), 4 x Mutators Wave Shapers
LFO 5 x LFO, Tempo syncable
Filter 1 x Multimode Filter (11 types), 1 x Variable Filter (lowpass, bandpass, highpass)
Envelope Generator 5 x ADSR ; Delay, Hold, Looping
Effects Types 4 x Reverbs, 5 x Delay, Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Compressor
Arpeggiator 8 x Arpeggiators
Audio Outputs 2 x 1/4" (L/mono, R)
Headphones 1 x 1/4", 1 x 1/8"
USB 1 x Type B
MIDI I/O In/Out/Thru/USB
Pedal Inputs 1 x 1/4" (sustain), 1 x 1/4" (expression)
Other I/O 2 x Mod in, Pitch out, Gate out, 2 x Mod out, Clock out
Power Supply 12V DC power supply (included)
Specifications
Product Type
PC Interface N/A
Keys
Wheels
Connectivity (Input)
Connectivity (Output)
Sample Rate
Bit Rate N/A
Frequency Response (Input) N/A
Frequency Response (Output) N/A
Maximum Input Level N/A
Maximum Output Level
Dynamic Range
Dimensions (mm)
Misc. Notes
Package Type
Additional Information
Scan Code LN105505
Model Number HYRDASYNTH-KEYBOARD
GTIN 6950474311116
