Hydrasynth Desktop

ASM - Hydrasynth Desktop 8-Voice Polyphonic Wave-Morphing Synthesizer,Virtual Analog Synthesizer Module

Thumbnail 1 : Hydrasynth Desktop Thumbnail 2 : Hydrasynth Desktop Thumbnail 3 : Hydrasynth Desktop Thumbnail 4 : Hydrasynth Desktop
Scan code: LN105506 Manufacturer code: HYDRASYNTH-DESKTOP
£799.00Item currently awaiting an ETA
Pre order
FREE DELIVERY ON YOUR ENTIRE BASKET
From £27.30 / month (APR 14.9%)
Monthly Payment: £71.73
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £799.00
Total inc. interest: £860.73
Monthly Payment: £38.35
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £799.00
Total inc. interest: £920.41
Monthly Payment: £27.30
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £799.00
Total inc. interest: £982.62
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Explore New Realms of Creativity with the
Hydrasynth Desktop

Hydrasynth Desktop

8-voice Polyphonic Wave Morphing Synthesizer Introducing the vastly powerful ‘Hydrasynth’ Desktop 8-voice polyphonic wave morphing synthesizer from ASM.

The Hydrasynth Desktop boasts 8-voice polyphony, ‘Mutator’ waveshaping, and a 32-slot modulation matrix to deliver a genuinely revolutionary, virtual analogue synthesizer, for the revolutionary music producer. The Hydrasynth Desktop easily rivals the sonic capabilities of popular and renowned software synthesizer plug-ins, each of the Hydrasynths voices sports 3 WaveScan oscillators to offer an impressive 219 unique waveforms, with a total of 4 Mutators for unparalleled waveshaping potential.

The Hydrasynth Desktop has near limitless capability for the creation of nuanced and nonlinear sounds – the 5 ADSR envelope generators offer delay and hold and can have either linear or exponential curves in between stages, whilst the 5 onboard LFO’s deliver upto 11 waveshapes plus delay, fade in and smoothing.

Consider the 24 performance pads with polyphonic aftertouch, alongside CV/Gate connectivity, and the ASM Hydrasynth Desktop really does start to look like the innovative and versatile module your synthesizer setup has been patiently waiting for.

Vast Modulation Capabilities

Hydrasynth Desktop Lifestyle

create custom, unique waveshapesVia its vast 32-slot modulation matrix, the Hydrasynth Desktop gives you all the tools you need to design complex, intricate and eloquent sounds. Creative synthesists are sure to be drawn in by the Hydrasynth’s envelope generators (5 per voice), which offer delay and hold in addition to ADSR stages. Each stage of the envelope is able to sweep through exponential and logarithmic curves, which paves the way for vast creative opportunity with evolving modulations.

As with the majority of the Hydrasynth Desktop’s functionalities, envelopes are able to be locked to BPM to allow for tempo-synced modulations. Once combined with the looping function, you can use the envelopes as LFO’s with interesting waveshapes. Hydrasynth Desktop offers 5 LFO’s per voice with 11 waveshapes, this is inclusive of the 8-step LFO which enables you to design your own custom, unique waveshapes.

Real-time Control via 8 Macro Controls

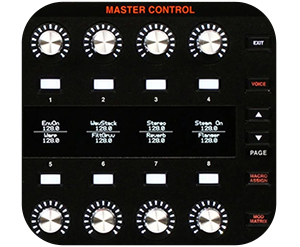

Hydrasynth Desktop Parameters

170 modulation destinationsPerhaps one the most popular facets of software synthesizers is the option to control numerous parameters simultaneously via macro controls. The Hydrasynth Desktop hands you this creative power in hardware form.

It’s possible to customise the 8 macro controls to control up to 8 destinations at the same time. With a total of 170 modulation destinations to explore, it’s easy to utilise the macro controls to warp between completely distinct sound variations on the fly.

Deep Synthesis with an Intuitive Interface

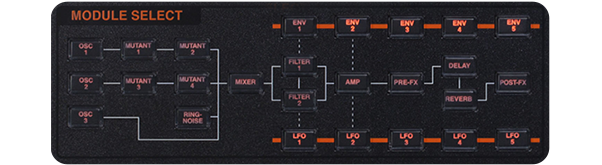

Hydrasynth Desktop Modules

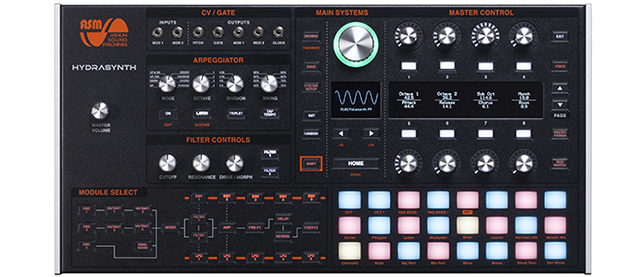

incredibly intuitive interfaceThe Hydrasynth Desktop’s engine is spectacular in its power, but this doesn’t mean that it’s complex in its operation, quite the opposite infact, it’s simple to locate and tweak the parameters. On the front panel, you’ll see a graphic representation of the audio chain, with buttons to select each individual section (individual oscillators, mixer, effects and so forth).

Choosing a section brings its associated parameters to the display, with 8 encoders ready to tweak. Each section on the Hydrasynth Desktop is able to be accessed with the press of a button, meaning there’s no need to delve deep into complex menus.

Just some of the Powerful Features onboard the Hydrasynth

THE SYNTHESIST'S DREAMThe Hydrasynth Desktop is the exact same sound engine as the Hydrasynth Keyboard. The engine is a sound designers dream come true, as well as a performing musicians ideal. The sound engine has been designed for maximum flexibility. Check out just some of the killer features onboard this hugely powerful synthesist’s dream.

down

Mixer/ filter routing3 Oscillators are fed into a mixer along with the Noise generator and Ring Modulator. The Mixer allows you to mix levels as well as pan the input source. The filters can be set to be parallel or series for ultimate flexibility. ​

up

Oscillators3 oscillators allow you to choose from a selection of 219 single cycle waveforms. This mode allows you to pick and choose 8 waves, from the bank of 219, arrange them in the order you want, and then morph from one to another. ​

up

FiltersThe Hydrasynth has two filters that can be configured in series or parallel. Filter 1 has 11 different filter models, giving you multiple options for tailoring your sound. Filter 2 is a 12db per octave has a continuous sweep from Low pass to bandpass to high pass. ​ ​

up

EnvelopesAn advanced sound engine needs plenty of modulation sources. ASM's 6 stage envelopes feature Delay, Attack, Hold, Decay, Sustain and Release stages. You can also loop the envelopes to create LFO’s whose shape can be voltage controlled in the modulation matrix.

down

Modulation MatrixWith 32 user definable modulation routings, you will have plenty of ways to use the 29 modulation sources and 155 modulation destinations. ​

up

Main ControlsThe Main system controls are where you navigate your patches, configure system settings and see parameters like the envelopes, waveforms, filters in the OLED screen. ​ ​

up

CV/GATE - MIDI - USBThere is the standard MIDI and USB/MIDI interfaces on the synth but we go deeper and allow the use of CV/GATE interfaces for connecting to the modular world. ​ ​

up

ArpeggiatorThe arpeggiator allows for standard note arpeggiations but also has a phrase arpeggio built-in. Parameters like RATCHET and CHANCE will generate insane rhythmic patterns.

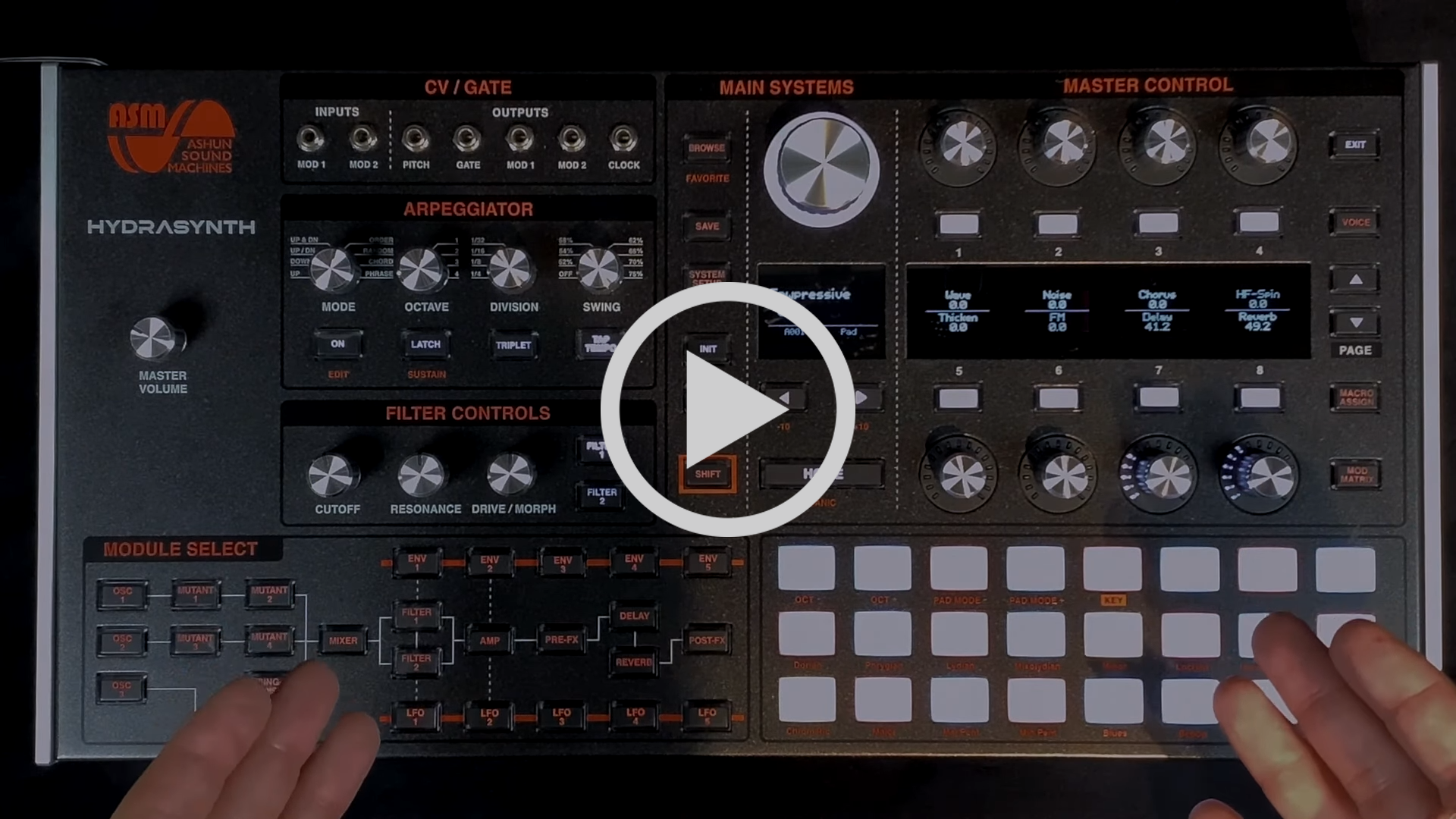

A Visual Overview of the Hydrasynth Desktop from ASM

see what the hydrasynth can do for you!Click below and let Glen Darcey of ASM take you on a tour of the features of the new, super impressive Hydrasynth Keyboard and Hydrasynth Desktop synthesizers.

The Tech Spec

Features Specification
Type Desktop Synthesizer
Analogue/Digital Digital, Wave Morphing Synthesis
Pads 24 x Velocity-sensitive Pads, Aftertouch
Polyphony 8 Notes
Presets 640 Program Locations (5 banks x 128 Patch Memories)
Oscillators 3 x Wavescan Oscillators
Waveforms 219 waveforms (wave morphing), 4 x Mutators Wave Shapers
Envelope Generator 5 x ADSR ; Delay, Hold, Looping
LFO 5 x LFO, Tempo syncable
Filter 1 x Multimode Filter (11 types), 1 x Variable Filter (lowpass, bandpass, highpass)
Effects Types 4 x Reverbs, 5 x Delay, Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Compressor
Arpeggiator 8 x Arpeggiators
Analog Outputs 2 x 1/4" (L/mono, R)
Headphones 1 x 1/4"
MIDI I/O In/Out/Thru/USB
Other I/O 2 x Mod in, Pitch out, Gate out, 2 x Mod out, Clock out
Pedal Inputs 1 x 1/4" (sustain), 1 x 1/4" (expression)
USB 1 x Type B
Power Supply 12V DC power supply (included)
Specifications
Product Type
PC Interface N/A
Keys
Wheels
Connectivity (Input)
Connectivity (Output)
Sample Rate
Bit Rate N/A
Frequency Response (Input) N/A
Frequency Response (Output) N/A
Maximum Input Level N/A
Maximum Output Level
Dynamic Range
Dimensions (mm)
Misc. Notes
Package Type
Additional Information
Scan Code LN105506
Model Number HYDRASYNTH-DESKTOP
GTIN 6950474311123
