Arturia - 'AudioFuse Studio' Desktop Audio Interface
Arturia - 'AudioFuse Studio' USB-C Audio Interface, ADAT I/O, SPDIF I/O, MIDI I/O, USB Hub

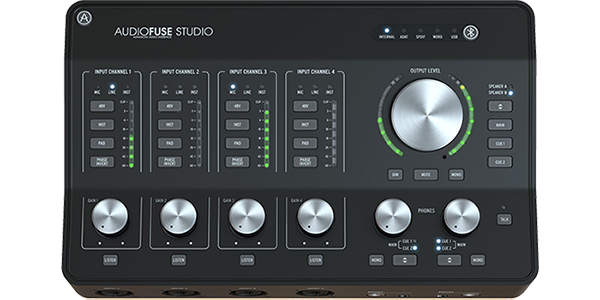

Arturia - 'AudioFuse Studio'
Desktop Audio Interface
vast connectivity & powerful featuresThe Artutia AudioFuse Studio is the ultimate desktop audio interface, featuring 4 world-class preamps, flexible connectivity, a wide range of capabilities with hands on control and a host of intelligent design features. With superb preamps, reliable performance, low latency, plenty of incredibly useful and reliable features such as a built-in phono preamp for vinyl sampling, Bluetooth streaming to your monitors or a channel in your DAW, USB-C, ADAT, MIDI, and Word Clock connectivity and a rugged build.
AudioFuse Studio includes 4 legendary Discrete Pro© preamps to track your music, and a pristine analogue signal path that will display every nuance of your audio. The super-low Equivalent Input Noise (EIN) lets you capture every small detail, while the huge 72dB input gain provides enough gain to drive even the quietest ribbon mic. Everything is also captured with a practically perfect flat frequency response.
USB 2.0Connectivity
24-bit/192kHzA/D Resolution
18 x 20Simultaneous I/O
At A Glance
• 4 mic/instrument/line preamps with DiscretePRO® technology
• 4 additional line inputs, with inputs 5-6 commutable to Phono
• Bluetooth audio receiver supporting aptX© and AAC©
• 4 analogue inserts on channel 1-4
• 18 inputs, 20 outputs channels

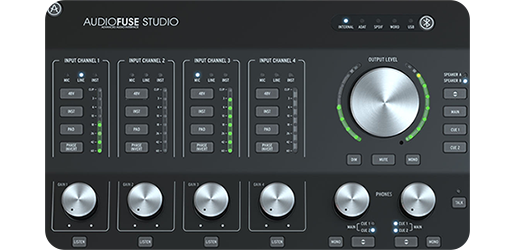

Extended Capabilities
Four preamps with
hands-on controlPremium discrete pro preamps with separated Mic/Instruments/Line circuits deliver the best possible audio quality at the input stage.
Bluetooth audio
direct connectionUse AudioFuse Studio to listen or record audio wireless stream without the need for a computer using standalone mode.
Monitoring
sectionDirect access to Mono, Mute & Dim functions for improved studio workflow with a complete monitoring section.
Speaker & source
selectionSelect between 2 sets of speakers and 3 audio sources for instant A/B control.
Two Separate
Phones ControlsTwo fully independant phones outputs with source selection, mono switch, 6.35 and 3.5mm TRS.
Talkback
FuntionThe talkback feature uses a built-in microphone so you can talk to the recording artist.
Listen
PFL ControlSelect PFL (Pre Fader Listen) for each analogue input directly on the interface.
Comprehensive Clock
Selection DisplayCheck at a glance on which clock the AudioFuse Studio is synchronized.
Arturia
ButtonQuick-access button directly opens up the AudioFuse Control Center software. Hold down to power on/off.

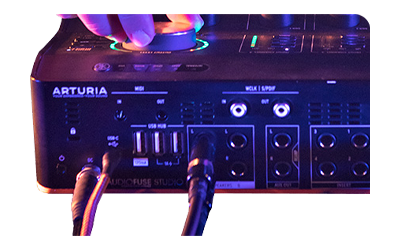

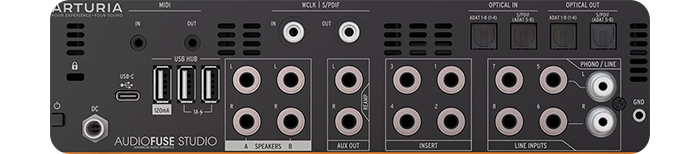

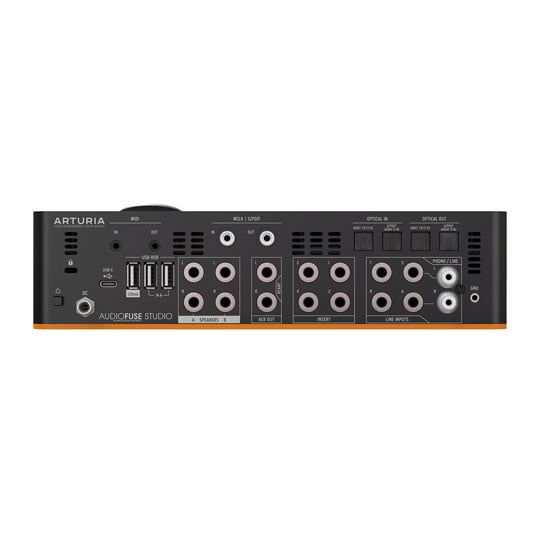

Greater Connectivity Options
Four additional
analogue line inputs4 pristine analoge line inputs with TRS connectivity.
Line/Phono
InputsConnect inputs 5 & 6 to phono or consumer line devices.
Multiple
InsertsUse inputs 1-4 to add external line level devices into the signal chain.
Speaker
Outputs A&BConnect two sets of speakers using the balanced 1/4" TRS ouputs.
Additional Line
Or Reamping Outputs2 additional outputs for re-recording of guitars and FX in reamping mode.
Double ADAT
In/Out ConnectivityConnect any ADAT equipment with double ADAT I/O with a sample rate of up to 96kHZ.
SPDIF & World Clock
Input/OutputsSync to any World Clock equipment or any SPDIF digital audio devices.
MIDI
Input/OutputConnect to any MIDI device, DIN adapters included.
USB
hub3 port USB for connecting keyboards, USB sticks or dongle. 2 ports are available for charging.
USB Type-C
connectionFully compatible with USB 2.0, both Type-C and Type-B cables are provided.
Enhancing The Way You Make Music
You have the powerListen to music, or track ideas directly from a phone to your DAW with a high quality Bluetooth receiver. Use the DC-coupled outputs to control parameters of your modular synths. The possibilities are endless. Every connection is made from the best components available, giving you perfectly transparent analog-digital conversion, practically non-existent noise on the preamps, even when fully cranked with plenty of gain to make even the quietest mics perform at their best, with an impressively smooth, audiophile listening experience.
Power with
DC or USB
Expand
with ADAT
Dedicated
software control
Integrated
USB 2 hub
AudioFuse Creative Suite
Unique CreativityAudioFuse Studio comes complete with an continuously growing range of software effects and instruments that will let you add your own unique signature to your music. Color the pristine inputs of AudioFuse Studio with stunning vintage effects!

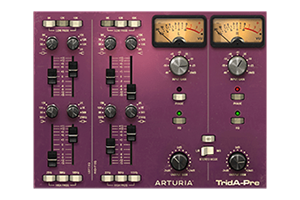

Pre TridAConsidered golden by the music industry. An ultra-rare Soho preamp sound and musical EQ that added character to countless best-selling hits for over half a century.

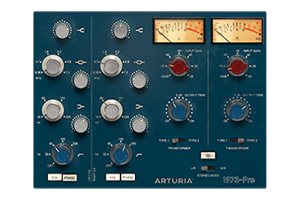

Pre 1973Influenced by the hugely iconic British studio sound, the Arturia Pre 1973 is the key to getting that harmonically pleasing, solid-state 70s tone.

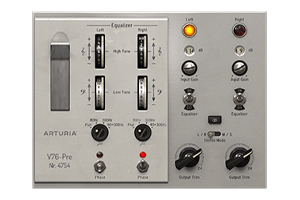

Pre V76The key to getting that “White Album” sound, these reinvented German engineered, tube-driven broadcast preamps were beloved by Abbey Road.
Filter MiniDr Robert Moog’s legendary, smooth ladder filter, accurately recreated and updated with an LFO, envelope follower, and a step sequencer.

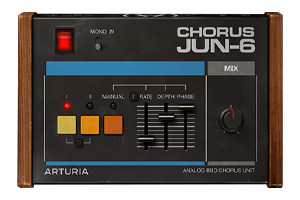

Chorus JUN-6Chorus JUN-6 recreates a classic synth effect, with 3 simple modes offering glorious stereo width, subtle analogue movement, and perfectly-emulated BBD warmth.

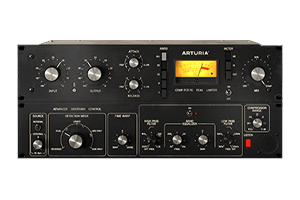

Comp FET-76Modelled after the most renowned compressor ever made, the Class A FET sound our 1176 software recreation seems to make everything sound better.

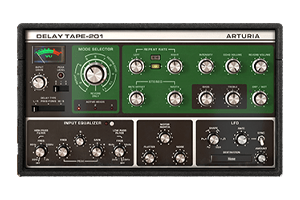

Delay TAPE-201The Arturia Delay TAPE-201 gives you everything you love about the sound of vintage hardware tape delays, but with the reliability and versatility of software.

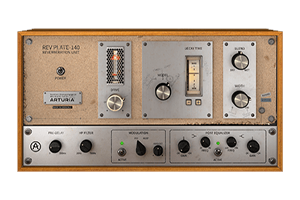

Rev PLATE-140The silky-smooth, resonant tone of vintage plate reverbs have coloured the sound of many iconic performances and mixes together with bright, immersive overtones.
Analog Lab IntroAn incredible software instrument containing hundreds of amazing presets taken from Arturia’s award-winning V Collection. Analogue synths, pianos, organs, and more.

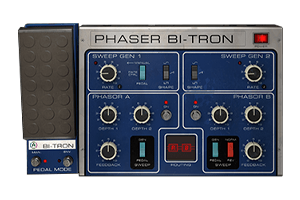

Phaser BI-TRONPhaser BI-TRON is a double-barrelled modulation powerhouse that allows you to weave your own kinetic sound with advanced routing, dual phaser circuits, and beautiful analogue character.
AudioFuse Studio | Audio Interfaces | ARTURIA
The Tech Spec
| Features | Specification | Computer Connectivity | USB 2.0 |
|---|---|
| Form Factor | Desktop |
| Simultaneous I/O | 18 x 20 |
| Number of Preamps | 4 |
| Phantom Power | 4 channels |
| A/D Resolution | Up to 24-bit/192kHz |
| Effects | AudioFuse Creative Suite Effects |
| Analogue Inputs | 4 x XLR-1/4" combo (mic/line/Hi-Z), 4 x 1/4" (line), 1 x Dual RCA Stereo (phono/line) |
| Analogue Outputs | 2 x 1/4" (L/R A), 2 x 1/4" (L/R B), 2 x 1/4" (reamp, DC coupled) |
| Digital Inputs | 2 x Optical Toslink (ADAT, S/PDIF), 1 x Coax (S/PDIF) |
| Digital Outputs | 2 x Optical Toslink (ADAT, S/PDIF), 1 x Coax (S/PDIF) |
| Inserts | 4 x 1/4" (channel) |
| Headphones | 2 x 1/4", 2 x 1/8" (DC coupled) |
| MIDI I/O | 1 x 1/8" TRS Type B (In), 1 x 1/8" TRS Type B (Out), USB |
| USB | 1 x USB-C, 1 x USB-A (120mA), 2 x USB-A (1000mA) |
| Bluetooth | Yes (receiver) |
| Clock I/O | 1 x RCA (In), 1 x RCA (Out/Thru) |
| Software | AudioFuse Creative Suite, AudioFuse Control Center |
| OS Requirements - Mac | OS X 10.8.5 or later, Intel Core i5 or higher |
| OS Requirements - PC | Windows 7 SP1 or later, Intel Core i5 or higher |
| Dimensions | Width: 10.4" Height: 2.8" Depth: 6.3" |
