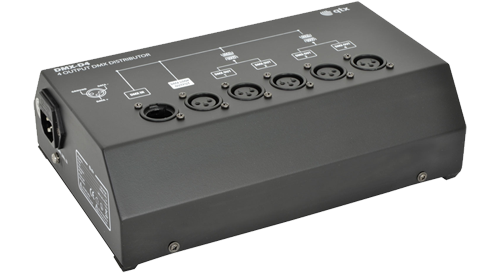

QTX 4 Way DMX Booster/Distributor
QTX - 4 Way DMX Booster/Distributor
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
QTX - 4 Way DMX Booster/Distributor
isolate individual sub chainsQTX's 4 way DMX Booster/distributor has one input, loop through and two electrically opto isolated outputs. Both DMX input and DMX output are provided with 3 pin XLR connectors making it universally compatible with most lighting systems.
The QTX 4 Way DMX Booster/Distributor is ideally used for splitting the signal over a large area rather than running a chain. The box will isolate individual sub chains, making it quick and easy to protect and fix faults when they occur without the whole system failing!
At a glance
• DMX Loop out or DMX terminated (supplied)
• 2 x Opto isolated DMX outputs (isolated in pairs, CH1&2, CH3&4)
• Powered by mains to boost signal over a long distance
The Tech Spec
| Features | Specification | Power supply | 230Vac, 50Hz (IEC) |
|---|---|
| DMX inputs | 1 |
| DMX outputs | 4 |
| Dimensions | 248 x 165 x 70mm |
| Weight | 1.5kg |
