Apple Mac Studio M5 Ultra 30-Core CPU 96GB RAM 1TB SSD MacOS Silver Desktop PC

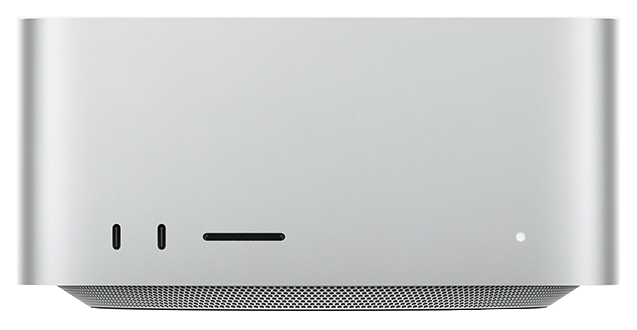

Apple Mac Studio M5 Ultra

The Apple Mac Studio combines the power of the Apple M5 Ultra chip with a compact desktop design, delivering the performance and connectivity needed for demanding professional workflows. This configuration features a 30-core CPU, 64-core GPU, 32-core Neural Engine and 1.2TB/s memory bandwidth from its 96GB unified memory. Alongside a 1TB SSD, this combination provides fast access to applications and project files, whilst hardware-accelerated ray tracing and dedicated Neural Accelerators supply powerful graphics and AI capabilities. An advanced Media Engine supports H.264, HEVC, ProRes and ProRes RAW with dedicated video decode, encode and ProRes engines. Connectivity includes Thunderbolt 5 at up to 120Gb/s, 10Gb Ethernet, HDMI 2.1, USB-A and a 3.5mm headphone jack, with the M5 Ultra configuration also providing two front Thunderbolt 5 ports and a UHS-II SDXC card slot for convenient access to high-speed peripherals and media.

Unleash M5 Ultra Performance

The Apple M5 Ultra provides the processing power needed for demanding professional applications, combining a 30-core CPU with 10 super cores and 20 performance cores. This architecture provides substantial computational capability for intensive workloads including software development, 3D work, content creation and other demanding desktop applications.

Render Detailed Graphics with a 64-Core GPU

A 64-core GPU with dedicated Neural Accelerators and hardware-accelerated ray tracing delivers powerful graphics processing for professional visual workloads. Hardware-accelerated ray tracing enables more realistic lighting and reflections in supported applications, while the integrated GPU provides high-performance graphics without requiring a separate graphics card.

Accelerate AI Workloads

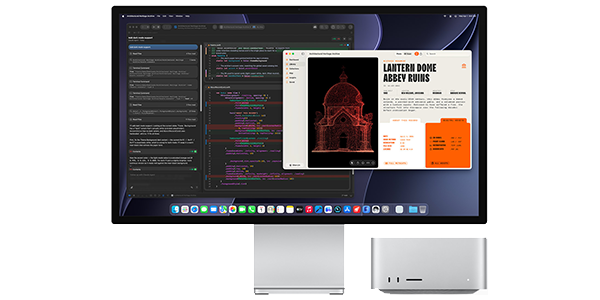

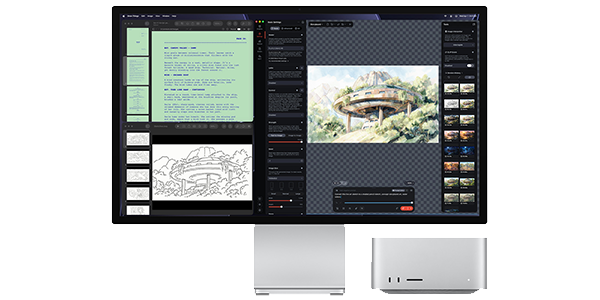

The 32-core Neural Engine and dedicated Neural Accelerators provide the M5 Ultra with substantial on-device AI processing capability. Combined with 1.2TB/s memory bandwidth, the unified architecture is designed to efficiently handle demanding AI and machine learning workloads while keeping CPU, GPU and memory resources closely integrated.

Edit and Process High-Resolution Video

The M5 Ultra's dedicated Media Engine provides hardware acceleration for H.264, HEVC, ProRes and ProRes RAW workflows. Two video decode engines, four video encode engines and four ProRes encode and decode engines help accelerate demanding video production tasks, while AV1 decode support provides compatibility with modern video formats.

Keep Projects Moving with Unified Memory

This configuration includes 96GB of unified memory, allowing the CPU, GPU and Neural Engine to access a shared high-speed memory pool. With 1.2TB/s memory bandwidth, the M5 Ultra is equipped to move large amounts of data efficiently between processing resources during demanding applications and professional workloads.

Store Projects on a Fast 1TB SSD

The integrated 1TB SSD provides fast local storage for macOS, applications, documents and active project files. The SSD can be configured to higher capacities, but this configuration provides 1TB of internal storage while allowing additional storage to be connected externally through the Mac Studio's high-speed connectivity.

Stay Connected with 10Gb Ethernet and Wi-Fi 7

The Mac Studio provides fast and flexible networking for professional workflows, featuring 10Gb Ethernet with support for 1Gb, 2.5Gb, 5Gb and 10Gb Ethernet through its RJ-45 port. Wireless connectivity is provided by Wi-Fi 7 (802.11be), while Bluetooth 6 enables connections to compatible wireless peripherals and accessories. Thread networking technology is also built in for compatible connected devices.

Expand Your Setup with Thunderbolt 5

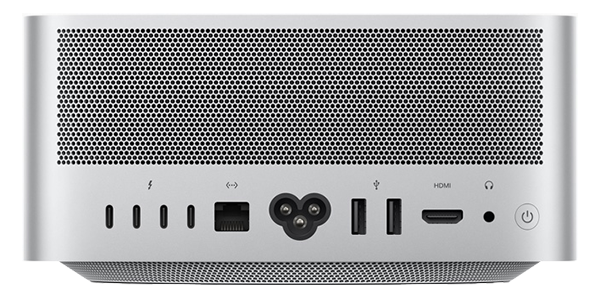

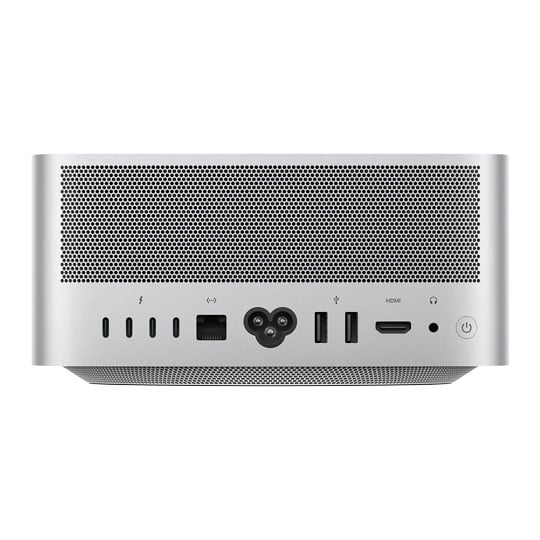

Four rear Thunderbolt 5 USB-C ports support data transfer rates of up to 120Gb/s, alongside USB 4 up to 120Gb/s, USB 3 up to 10Gb/s and DisplayPort 2.1. The M5 Ultra configuration adds two front Thunderbolt 5 ports, also supporting speeds of up to 120Gb/s, providing convenient access to high-performance storage, displays and other peripherals.

Expand Your Workspace Across Multiple Displays

The M5 Ultra Mac Studio supports up to eight external displays, with support for up to eight displays at 6K 60Hz or 4K up to 165Hz, depending on the configuration. It can also drive up to four displays at resolutions up to 8K 60Hz, 5K 120Hz or 4K 240Hz, making it suitable for expansive multi-display professional workspaces.

Connect Professional Networking and Displays

Alongside Thunderbolt 5, the Mac Studio provides 10Gb Ethernet, supporting 1Gb, 2.5Gb, 5Gb and 10Gb Ethernet connections through its RJ-45 port. HDMI 2.1 provides additional display connectivity, while two rear USB-A ports offer up to 5Gb/s connectivity for compatible legacy peripherals.

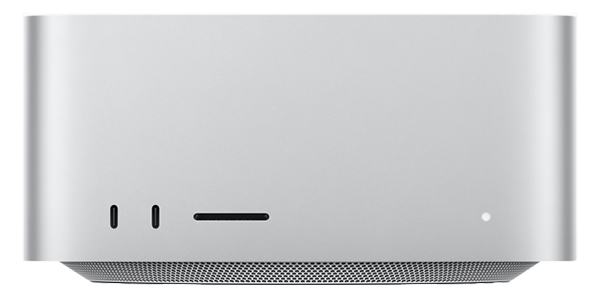

Access Media Directly from the Front

A front-mounted SDXC card slot with UHS-II support provides a convenient way to import photographs, video and other media directly from compatible memory cards. Two front Thunderbolt 5 ports provide additional high-speed connectivity without needing to reach around the rear of the system.

Compact Desktop Design

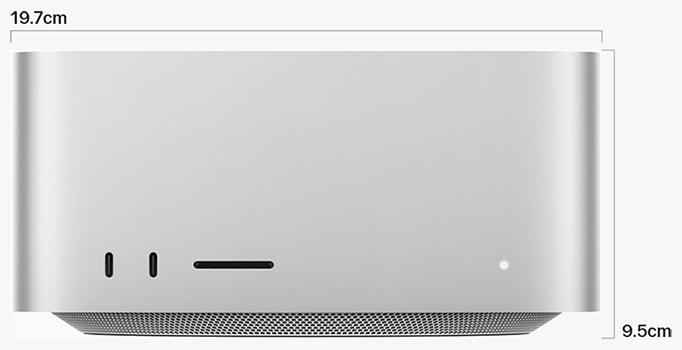

The Mac Studio combines its high-performance hardware with a compact 19.7 x 19.7 x 9.5cm aluminium enclosure, allowing substantial processing capability to fit neatly into a professional desktop environment. The M5 Ultra configuration weighs 3.6kg, providing a compact alternative to larger professional desktop systems.

• Apple M5 Ultra chip.
• 30-core CPU with 10 super cores and 20 performance cores.
• 64-core GPU with Neural Accelerators.
• Hardware-accelerated ray tracing.
• 32-core Neural Engine.
• 96GB unified memory.
• Up to 1.2TB/s memory bandwidth.
• 1TB SSD storage.
• Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW.
• Two video decode, four video encode and four ProRes encode/decode engines.
• Thunderbolt 5 up to 120Gb/s.
• Two front Thunderbolt 5 ports.
• HDMI 2.1.
• UHS-II SDXC card slot.
• 10Gb Ethernet with 1Gb/2.5Gb/5Gb/10Gb support.
• Wi-Fi 7 (802.11be) and Bluetooth 6 support.
• Thread networking technology.
• Supports up to eight external displays.
