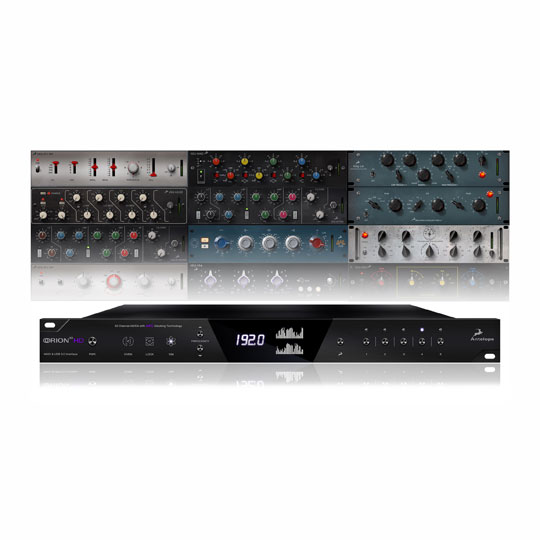

Antelope Orion32 HD 64 Channel HDX & USB3 Audio Interface

Antelope Orion32 HD 64 Channel HDX & USB3 Audio Interface - 24bit 192kHz, ADAT, MADI, SPDIF, Word Clock

ANTELOPE
Scan code: LN78283 Manufacturer code: Orion 32HD Request call
£3,259.00Item overdue since 15 July 2017
Pre order
Pay on Scan Finance with a 10% deposit from just £81.39 / month (APR 15.9%)
Mid Range
Free Delivery Delivery options Free By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview

64 Channel HDX & USB 3.0 Audio Interface


Orion32


Orion32 HD Includes a Fine Selection of Free Hardware-Based Vintage AFX


Bulgaria seems to be a bit of a busy place for Pro Audio at the moment with Antelope pushing out some absolutely fantastic gear and progressing on the software side of things at a staggering pace. The Balkan Mountains truly are alive with the sound of music…courtesy of Antelope's pristine AD/DA conversion and supreme clocking!

Enter the new addition to the family - the stunning looking ORION32 HD was announced at NAMM and I imagine Pro Tools HD users are pretty happy. It's compatible with any DAW on the market via a HDX port or USB 3.0. This means no matter what you choose to use in the studio you can benefit from 64 channel 192kHz audio I/O, Zero Latency Monitoring, industry-leading AFC clocking and as you'd expect, flawless conversion. Throw in the usual plethora of connectivity such as ADAT, MADI, S/PDIF, Wordclock and mastering-grade Monitor outs and you have a beast of an interface. Now if you have a Pro Tools HD setup and a customer comes in with a laptop project made on Cubase, Logic or Presonus etc then you can simply use the USB port to integrate their project directly into your existing setup - no extra interfaces needed!

The proprietary FPGA is the heart and soul of all Antelope Audio interfaces and is included inside Orion 32 HD. Allowing you to use Antelope's integrated and ever-growing library of hardware-based vintage EQs, compressors and of course AuraVerb.


Forget About Latency


Orion32


Stream 64-channels of audio via HDX & USB 3.0


Orion32 HD is the newest addition to the Orion family. Compatible with any DAW on the market via HDX port or USB 3.0, this new Pro Tools HD and Native interface offers everything Antelope Audio stands for. Zero latency Monitoring, I/O streaming of 64-channel 192 kHz audio, Antelope's industry-leading clocking, and pristine AD/DA conversion. Orion32 HD's analog I/O is handled by 8 DB25 connectors, accompanied by MADI, ADAT and S/PDIF connectivity.

Orion32 HD features a fine selection of vintage FX powered by Antelope Audio's innovative Field Programmable Gate Array (FPGA) technology bringing modeling of legendary vintage gear to a whole new level.


Fast and Furious


Orion32 HD


Smooth mixing and mastering-grade monitoring


Like its predecessors, Orion32 HD is a versatile audio interface, which works like a charm with any DAW on the market. It enables you not only to stream an astounding 64 channels of audio when tracking, but also allows for multiple monitor mixes. When monitoring, the sound is pleasing, combining transparent detail in a very natural way, like all things Antelope. Independent software mixers, integrated hardware-based FPGA vintage effects, it's all there, with more connectivity options than ever.


Clocking Like We Love It


Orion32 HD


Perfect sound through flawless clocking
The unbeatable clocking accuracy of Orion32 HD is provided by Antelope's renowned 64-bit Acoustically Focused Clocking (AFC) jitter management technology. Antelope's clocking is known the world over with a 20 year reputation for excellence in both stability and sonic improvement. Transients will shine like never before, you'll achieve a stereo image with incomparable depth and detail.

And that sparse and crystal clear high-end… Yes, we're talking sonic perfection just like in our game-changing OCX HD and Trinity master clocks.


FPGA Powered


Orion32 HD


The proprietary FPGA is the heart and soul of all Antelope Audio interfaces


The exquisite collections of Vintage EQ's include authentically models of Lang PEQ-1, BAE 1073, 1084, 1023, UK-69 and many other classic British and German vintage units. Vintage Compressors begin with the life-like model of the FET76 and many more are soon to be available, FREE to all new and registered users of Antelope's growing line of world class interfaces.


Intuitive Software Control


Orion32 HD

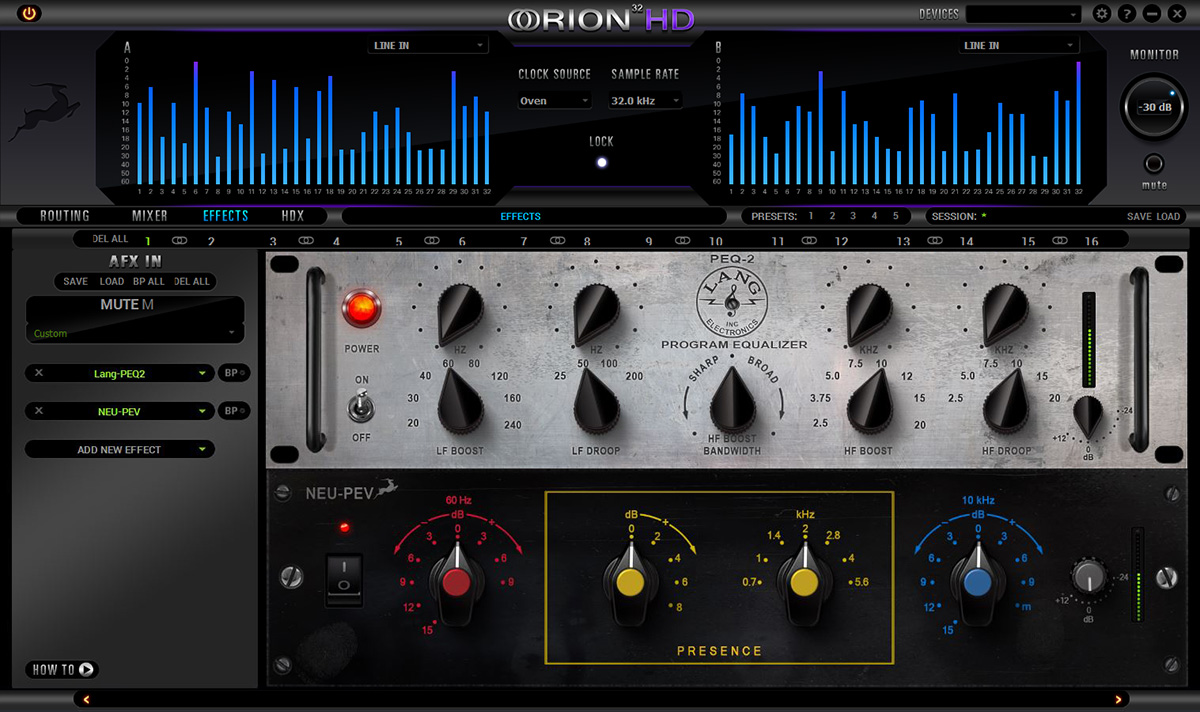

Your wildest routing dreams come true with the Orion 32 HD desktop app


Orion32 HD is fully controllable via its intuitive OS X and Windows compatible desktop app. Its color-coded routing matrix now features an alternative view making routing a piece of cake. The interface can be also accessed from multiple computers on the same network. With freely movable and resizable panels you can maximize the most out of your computer monitor space, perfect when working on huge projects, scoring to picture and on multiple screen set ups.
Features 64 Channels I/O
• Simultaneous streaming of 24-bit, 192 kHz audio via HDX or USB 3.0 and additional connectivity on MADI, ADAT, S/PDIF, 8x DB25

Supreme Clocking
• Powered by Antelope’s 64-BIT Clocking Technology with 2 Word Clock or Loopsync Outs, Word Clock or LoopSync & Antelope 10M/10MX Atomic Clock Inputs

Powerful FPGA
• Custom FPGA for authentic modeling of vintage gear, maintaining multiple mixers with real-time effects processing and measuring only 2 samples of inaudible latency

Mastering Grade Monitor Outs
• High Monitoring DA included using chips from our popular Pure2 Mastering Converter

Software Control
• Routing, mixing, real-time effects processing via OS X & Windows compatible app

Quiet Operation
• Housed in an efficient “green” design with no fans inside, means no need for expensive machine rooms or iso racks
Specifications
Computer Interface Type
  • HDX
  • USB 3
Analogue Inputs (Total) 32
Analogue Outputs (Total) 32
Connections (Input)
  • 1 x 10M Input
  • 2 x ADAT In
  • 4 x DB-25
  • 1 x MADI - Optical In
  • 1 x S/PDIF Coaxial In
  • 1 x word clock
Mic Preamps (Max)
Instrument Inputs (Max)
Phantom Power No
Sample Rate (Max) 192 kHz
Bit Resolution 24
iPad Compatible No
Dynamic Range n/a dB
Connections (Output)
  • 2 x 1/4" TRS Monitor Output
  • 2 x ADAT Out
  • 4 x DB-25
  • 1 x MADI - Optical Out
  • 1 x S/PDIF Coaxial Out
  • 2 x word clock
Dimensions (mm)
DSP Processing No
Misc. Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan Computers International Limited
Telephone:
0871-472-4747
