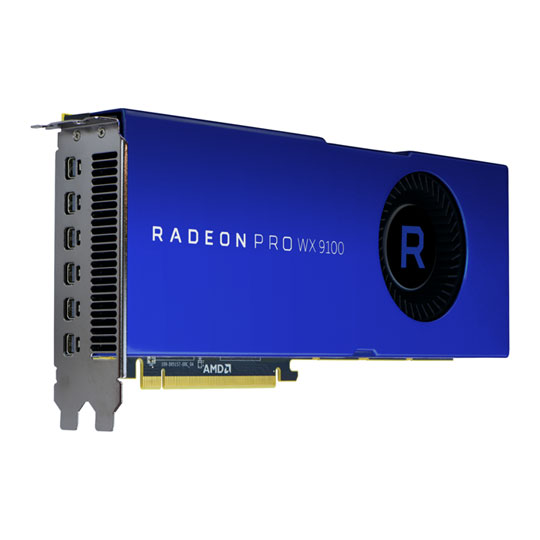

AMD Radeon Pro WX 9100 16GB Graphics Card
The Radeon™ Pro WX 9100 workstation graphics card provides the necessary performance required to drive these increasingly large and complex models through the entire design visualization pipeline. The Radeon™ Pro WX 9100, like all other Radeon Pro WX products, will also benefit from planned workstation certifications and optimizations for many of today’s popular design applications including SOLIDWORKS®, PTC Creo, Revit and Siemens NX. Features “Vega” GPU Architecture
The Radeon™ Pro WX 9100 graphics card is based on AMD’s cutting edge “Vega” GPU architecture, purpose-built to handle big data sets and a diverse range of computational workloads.
Up to 12.29 TFLOPS of Peak Single-Precision Floating-Point Performance
The Radeon™ Pro WX 9100 offers up to 12.29 TFLOPS peak SPFP. This is tremendous compute power that can be used to speed up professional applications where high performance is paramount, from rendering video effects to visualizing complex simulations.
64 Next-Generation Compute Units (nCUs, 4096 Stream Processors) with Support for Double-Rate 16-bit Math
New compute unit design provides super-charged pathways to provide double the processing throughput when using 16-bit data types, accelerating demanding workloads including image/video processing, ray tracing, and artificial intelligence.
OpenCL™ 2.0 Support
Enables professionals to tap into the parallel computing power of modern GPUs and multi-core CPUs to accelerate compute-intensive tasks in leading CAD/CAM/CAE and Media & Entertainment applications that support OpenCL.
|Chipset||Radeon Pro WX|
|Manufacturing Process||14 nm|
|Core Clock||1200 MHz|
|Boost Clock||1500 MHz|
|Memory Clock||945 MHz|
|Memory Speed (Effective with DDR)|
|Memory Data Rate||1.89 Gb/s|
|Memory Bus||2048 Bit|
|Memory Bandwidth||483.84 GB/s|
|Peak Half Precision Compute Performance||24.6 TFLOPS|
|Peak Single Precision Compute Performance||12.29 TFLOPS|
|Cooling Solution||Single Fan (1)|
|Cooler Design||AMD Reference Blower|
|Interface||PCIe 3.0 (x16)|
|Connectivity||6 x Mini DisplayPort|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution|
|Max. Concurrent Displays|
|AMD CrossFire Support||Multi-GPU Compatible|
|AMD Freesync Support||Yes|
|AMD FreeSync Version|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Support|
|Graphics Card TDP/Power||230 W|
|Graphics Card Power Connectors||
|Minimum Recommended PSU|
|Maximum GPU Temperature|
