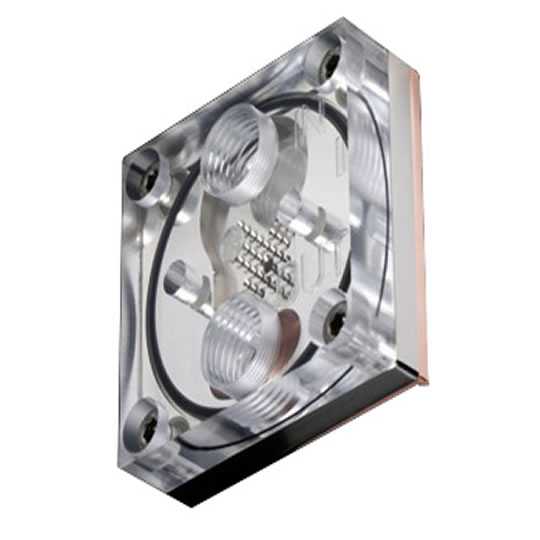

Alphacool NexXxos X2 Highflow Plexi 775 (11715)

Scan code: LN20462 Manufacturer code: 11715

End of life

This product is no longer available to purchase.

Email me when the availability or price changes

Product Overview With this cooler 53 nozzles enable an extremely balanced dispersal of coolant to the heated area and with the help of 8 backflow channels to quickly take the heated coolant away to the radiator. The 8 backflow channels are optimized PFC(c) over the pin structured base plate so as to enable the fastest possible water flow through the cooler. These High flow models give you the possibility of an extremely high flow rate of coolant, thus dispersing the heated coolant much more quickly and efficiently and also leaving less stress on the pump.

Features • Weight: approx. 300g
• Total Dimensions (without connections): 50 x 50 x 18 mm
• Structure: Copper base and Plexi top
• Flow rate: 4.9 to 5.0 L/m 294 to 300 L/h
• Nozzles: 53
• Backflow Channels: 8

Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details

Duration:: 12 months
Type:: Return to base
DOA Period:: 28 days
RTB Period:: 12 months

Manufacturer Contact Details

Manufacturer:: Scan Computers International Limited
Telephone:: 01204-474747

Additional Notes:
Manufacturer's warranty is reprinted here for your information only. Warranty terms subject to change without notice.
We recommend that you retain your retail packaging within the first 28 days of purchase.

Subject to 2 years manufacturers warranty, return to Scan for the first 12 months.
http://www.alphacool.de

Address: Internet: www.alphacool.de
Alphacool GmbH
Marienberger Str. 1
D-38122 Braunschweig

Support-eMail (Englisch): [email protected]
Support-Tel. :+49 (0)5 31/ 288 74-100
Fax: +49 (0)5 31/ 288 74-22

Precautions:
Water cooling products are designed to be fitted professionally.
Test the product for leakage away from the system before installing it on the system. Confirm there is no leakage, before you proceed with the installation. Use only approved coolant for computer water-cooling to prevent corrosion.
We highly recommend you carry out a 24/48 hour leak test prior to powering up your PC, and a system is fitted to monitor flow, and system temperatures.

Disclaimer:
Scan Computers International Limited will not be held responsible any damage due to abnormal use or conditions, misuse, neglect, abuse, accident, improper handling or storage, serial number altered, defaced or removed; or has had the warranty seal on the system altered, defaced or removed, exposure to moisture, unauthorized modifications, alterations, or repairs, improper installation, improper use of any electrical source, undue physical or electrical stress, operator error, non-compliance with instructions.
