Our team of Live Sound experts here at Scan Pro Audio have carefully selected these items to assist you in achieving a truly professional live sound for your venue. At the heart of the bundle is Allen & Heath’s ‘SQ-5’ 48 channel/36 bus digital mixer, powered by the ground-breaking XCVI 96kHz FPGA engine, the SQ-5 was built for both the professional engineer, and for the most demanding environments and applications. The SQ-5 boasts 16 onboard preamps and 8 stereo FX engines with dedicated return channels. Within the SQ-5 you have access to all the tools to meet any requirement, from AV and corporate events to live productions and houses of worship.
Also included is Allen & Heaths ‘AB168’ highly portable 16x8 audio interface stage box, Custom Lynx's Rean CAT5E etherCON Drum 30m to ensure you’re all hooked up without a hitch, and we also included a protective desk cover to keep your newly acquired SQ-5 in showroom condition!
what's included?

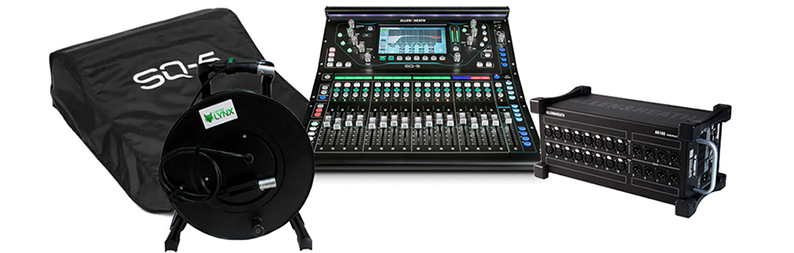

• 1x Allen & Heath - 'SQ-5'
• 1x Allen & Heath - 'AB168'
• 1x Custom Lynx - Rean CAT5E etherCON Drum 30m
• 1x Allen & Heath - SQ5 Dust Cover
Professional 48 Channel Mixer
Allen & Heath - 'SQ5'
Mix a masterpieceDriven by Allen & Heath’s game changing XCVI 96kHz FPGA engine, the SQ-5 has been designed for professionals who are in the most demanding live sound situations. The SQ-5 brings world class high res audio with super low 0.7ms latency, the SQ-5 gives unmatched power and audio fidelity.
The mixer has 16 onboard preamps and 8 stereo effects engines, each with dedicated return channels and access to the lauded RackExtra FX library. 12 stereo mixes make the SQ-5 the perfect partner for in-ear monitoring, whilst Automatic mic mixing takes the strain in multi-mic situations. The SQ-5 is a tool for professional engineers in any live sound environment.
7”Touchscreen
96kHzFPGA Processing
48Input Channels
at a glance
• 16 Microphone Preamps
• 7" Capacitive Touchscreen
• 96 kHz FPGA Processing
• 8 Stereo FX Engines with Returns
• 32 x 32 USB Audio Interface
• 12 Stereo Mixes + LR
• 8 Assignable SoftKeys
Tailored to Suit Your Workflow
Work the way you want to work
Each new design from Allen & Heath aims to take another step towards creating the perfect mixing experience. At the heart of the SQ-5 is a high-res 7” capacitive touchscreen, surrounded by a variety of illuminated encoders to give an intuitive, user friendly and integrated blend of easy to see visual feedback and instant hands on control.
Each channel and each mix is able to be moved with a simple ‘drag and drop’ process to any strip, alongside customised naming and colour coding, allowing you to tailor a mixing environment which lets you work how you want to work. Each strip features Allen & Heath’s patented chromatic channel metering system, allowing you an at-a-glance indicator of levels, thanks to the LED’s featuring adjustable brightness and colours.
Tough as Nails, Easy on the Eye
rigorously Tested
The touring and live show world is inevitably tough on gear. Fortunately, Allen & Heath understand this and have factored this in when designing the rock solid SQ series. Allen & Heath devised their most rigorous testing procedure to ensure the new series could withstand the live environment.
From the 3-tier, full metal housing, to the extruded aluminium bar, the SQ is tough as nails, whilst at the same time remaining a beautiful desk to work with.
Expand - Grow - Network
Dante, Waves and more
The SQ series is at the heart of an increasing family of apps, expanders, audio networking, personal mixers and more, which allows you to connect, adapt and expand as much as you could want.
The SQ series is compatible with the industry’s leading audio networking standards too, simply add an audio networking card such as Dante or Waves to the SQ’s I/O port and the SQ is set to integrate with installed systems, provide a digital Front of House/Monitor split and much more.
The 'ME Personal Mixing System'
limitless potential The SQ series is compatible with the ‘ME Personal Mixing System’, a system devised to allow performers to have complete control of their own monitor mixes. The amount of ME-1 and ME-500 personal mixers you can add is completely up to you, any number can be daisy-chained from the SQ’s SLink port. Click here to learn more about the ME Personal Mixing System
Total Control Over Your Mix
...And for the artists
Allen & Heath have developed 2 utterly essential apps for the SQ range.
The ‘SQ MixPad’ for engineers, and ‘SQ4You’ for artists. SQ MixPad is a free to download app, for iOS, Android, Windows and macOS platforms, which provides handy suite for editing offline, and online wired or wireless control of the SQ’s main mixing functionalities.
‘SQ4You’ on the other hand is a personal mixing app to work alongside the SQ series mixers, which allows as many as 8 artists to have complete control over their mix in the monitors from Android or iOS devices, leaving the engineer to have total focus on the FOH sound.
Immense Processing Power
Create the perfect mix Allen & Heath’s new SQ-5 desk holds all the processing power you could need to produce the perfect mix, and more. Each of the 48 inputs has HPF, a high-speed gate with sidechain and filter, a musical 4-band parametric EQ and Peak/RMS compressor to give you maximum control and shaping of levels and transients. Mixes have parametric and 28 bands graphic EQ alongside compressor as standard, each of these ready to switch in when you need.
Allen & Heath - 'AB168'

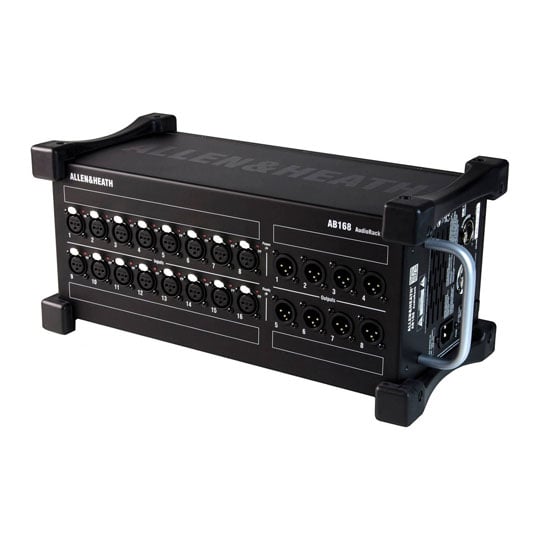

16 x 8 Audio Interface Stage BoxThe AB168 Portable Audiorack from Allen & Heath is a rugged audio interface stage box compatible with GLD and Qu digital mixing systems, and ideal for applications such as live sound and installations.
The unit features sixteen mic/line XLR inputs with pristine mic preamps and individual LED phantom power indicators, and eight XLR outputs. It connects to the mixer over a single Cat5 cable using the company's dSNAKE protocol, allowing for the inputs and outputs to be positioned at up to 393'/120m from the mixer. For larger systems, the expander port lets you daisy-chain an additional AB168 or AR2412 Audiorack, or interface with the ME personal monitor mixing system.
Amazing Features
• 16 x Mic Preamps with Phantom Power
• For GLD, Qu, ME Digital Systems
• dSNAKE Protocol Over Cat5
• 8 x XLR Line-Level Outputs
• Expander Port
Lightweight and Highly-Portable
maximum convenience and portabilityMade for life on the stage, this box is equipped with rubber bumpers for placing it horizontally or vertically on the floor during performances. Lightweight at just 10.6 lb, and featuring a sturdy carry handle, the AB168 is also designed for maximum convenience and portability.
The unit can also be rackmounted using an optional kit (available separately), and auto updates its firmware to synchronize with the GLD system.
Custom Lynx - Rean CAT5E etherCON Drum
(30m)

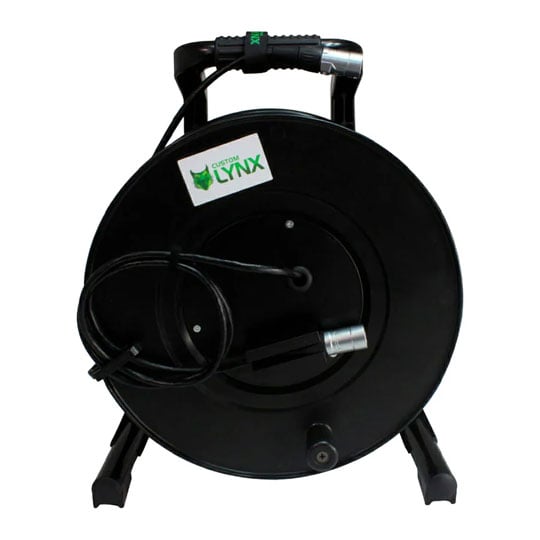

high-quality connectivityThe Custom Lynx flexible, drum mounted CAT5E cable system is made using Rean SFTP (Screened Foiled Twisted Pair) CAT5E cable and Rean etherCON connectors. Shielded RJ45 plugs are grounded to the etherCON shells on both ends. The drum itself is very solid and made from a hard solid plastic. It has a rubberised handle and brake feature on the back of the drum. The cable is very flexible and similar in feel to microphone cable. This cable is jet black in colour, with nickel silver coloured shell connectors. Available in a range of set lengths.
At A Glance
• Rean Flexible SFTP CAT5E Cable
• Rean Solid Plastic Drum With Brake
• Rean etherCON connectors
• RJ45’s Grounded Both Ends
Allen & Heath - Polyester Dust Cover for SQ-5 Desk
KEEP YOUR DESK IN SHOWROOM CONDITION!Keep your SQ-5 in pristine condition when not in use, with Allen & Heath’s fitted, water repellent dust cover made from polyester.
The Tech Spec
| Features | Specification | Number of Analog Input Channels | 48 |
|---|---|
| Mix Routing | 8 x Stereo FX Return |
| Groups | 8 x Mute Group 8 x DCA Group |
| Display | 7" / 177.8 mm Touchscreen |
| Display Resolution/Colour | 800 x 480 8-Bit RGB |
| Meters | Main Meter:
2 x 12-Segment LED Channel Meter: Single LED |
| Meter Range | -3 dBFS Peak/Clip (+19 dBu at XLR Output) |
| Meter Calibration | 0 dB on Meter = -18 dBFS (+4 dBu at XLR Output) |
| Gain/Trim Range | Line:
±24 dB (Stereo Channels) Mic/Line: 0 dB to +60 dB (in 1 dB Steps) |
| Input Pad | -20 dB |
| Input Polarity | Normal/Reverse |
| Gate Parameters | Threshold: -72 to +18 dBu Depth: 0 to 60 dB Attack: 50 μs to 300 ms Hold: 10 ms to 5 sec Release: 10 ms to 1 sec |
| Compressor Parameters | Threshold: -46 to +18 dBu Ratio: 1:1 to ∞:1 Attack: 30 μs to 300 ms Release: 50 ms to 2 sec Knee: Soft / Hard Blend: Yes |
| EQ | FX Returns: 4-Band Parametric |
| EQ Parameters | 1 x HF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable) 2 x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz 1 x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable) |
| Graphic EQ | 28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz |
| Filters | High-Pass: 20 Hz to 2 kHz, 12 dB/Octave |
| Channel Output/Source Monitoring | AFL, PFL, Post-Preamp, Post-HPF, Post-Gate, Post-EQ, Post-Compressor, Post-FX, Insert Return |
| Internal Effects | Reverb Stereo Delay (Tap) Reverb (Gated) ADT 2 x Chorus Flanger Phaser |
| Sample Rates | 96 kHz
AES3 Output:
44.1 / 48 / 88.2 / 96 kHz Stereo Record: 96 kHz Stereo Playback: 44.1 / 48 / 96 kHz Multitrack Playback/Multitrack Record: 96 kHz |
| Latency | < 0.7 ms (Mic Input to Main Output) |
| Analogue Inputs | 1 x XLR Talkback Input 16 x XLR Balanced Mic/Line Input 4 x 1/4" TRS Balanced Aux Input (2 Stereo Pair, Half-Normalled) 1 x 1/8" / 3.5 mm Unbalanced Aux Inp |
| Analogue Outputs | 12 x XLR Balanced Output 2 x 1/4 |
| Phantom Power | +48 V |
| Digital I/O | 1 x RJ45 (Network) 1 x XLR AES3 Output 1 x etherCON (I/O) |
| USB | 1 x USB Type-A (External Memory) 1 x USB Type-B (USB 2.0, Audio Streaming) |
| Expansion Ports | 1 x I/O Card |
| Max Multitrack Recording | 16 Tracks |
| File Format Support | WAV |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Weight | 23.1 lb / 10.5 kg |
| Dimensions | 17.3 x 20.3 x 7.8" / 440 x 514.9 x 198 mm |
