Allen & Heath QU-5D

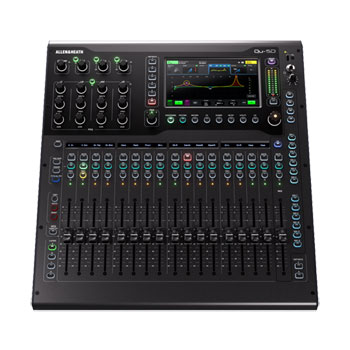

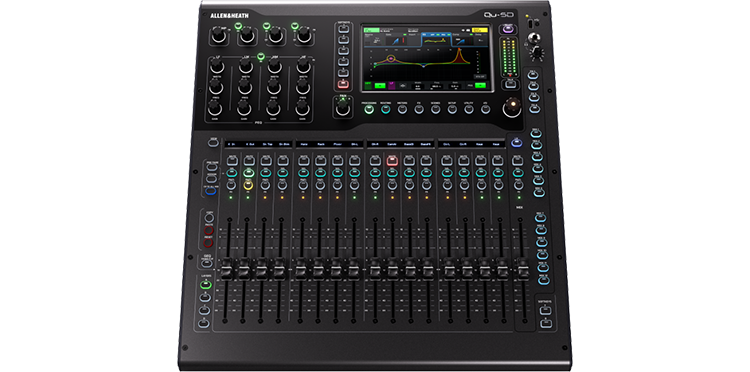

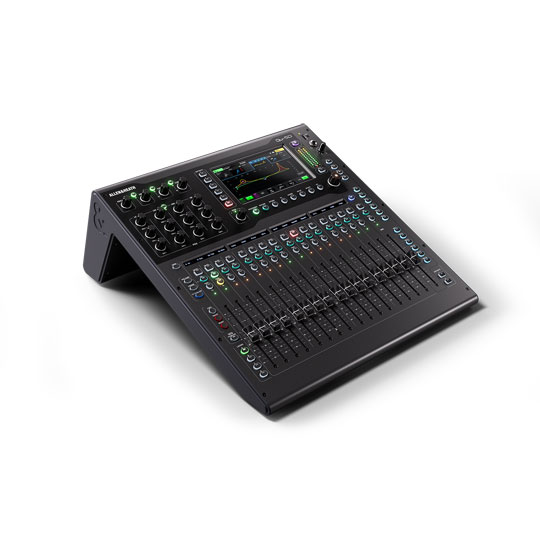

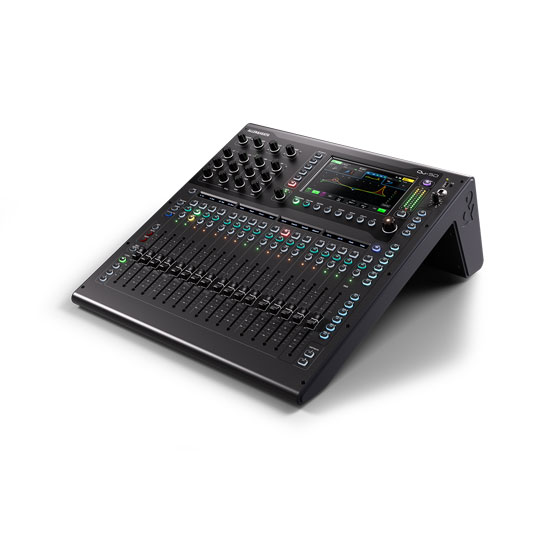

Allen & Heath - QU-5D Digital Mixing Console with 16 Faders and 16x16 Dante Channels
Email me when the availability or price changes
Finance this product
- From £56.37 / month (APR 16.9%) or 0% for 4 months
- With a 10% deposit from just £53.12 / month (APR 19.9%)
Digital Mixing Console with 16 Faders & 16x16 Dante Channels
Allen & Heath - Qu-5D
featuring 7” Capacitive TouchscreenQu-5 takes the ever-popular Qu-16 form factor and adds Allen & Heath’s powerful XCVI processing,
new FX engines and Everything I/O connectivity. There’s also a larger capacitive touchscreen,
channel strip displays, customisable layers and extra SoftKeys.
In addition, the Qu-5D variant features a built-in 16x16 48/96 kHz Dante port for interoperability with
other Dante enabled equipment.
Both the Qu-5 and Qu-5D are rack-mountable, 32 channel, 96kHz digital audio mixers, combining high
performance audio processing and professional features with ease of use and hands-on control.
Standout Features
• 96kHz FPGA Core
• 36x Inputs to Mix
(32x Mono/Linkable, 2x Stereo)
• Stereo Main LR Output
• 12x Mixes
(6x Mono/Linkable Aux, 6x Stereo Aux/Group)
• 4x Matrix (Mono/Linkable)
• 16x XLR/Jack ‘Combi’ Mic/Line Input Sockets
• 2x Stereo Line Input Sockets (each 2x TRS)
• 1x Talkback Socket
• 12x XLR Output Sockets
• 2x TRS Output Sockets
• 1x AES3 Stereo Digital Output Socket
• 128x128 Intelligent SLink Port for Everything I/O
expansion and system connections
• 16x16 48/96 kHz Dante interface (Qu-5D only)
• Stereo Headphone Output
• 6x Multi-FX Engines with dedicated Return
Channels
• 7” Capacitive Touchscreen
• 17x 100mm Motorised Faders
• 4x Channel Strip Layers
• 8x SoftKeys
• USB-A For stereo audio record/playback and
data transfer
• USB-C Audio interface for multichannel
record/playback (32x32)
• SD Card Slot for multichannel audio
record/playback (16x16@96kHz, 32x32@48kHz)
• 12V Lamp Socket
• Configurable single/dual Footswitch Connection
• Configurable Chromatic Channel Meter LED’s
• 19” Rack Mountable (optional kit available)
• IEC Mains Connection with Worldwide PSU
• RJ45 Network Socket
• Remote control via free apps –
Windows/MacOS/iOS/Android
Allen & Heath Qu5 mixer - Overview & New Features
