MADI I/O Module for SQ Series Mixers

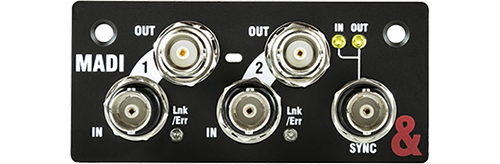

Allen & Heath - SQ MADI
64x64 Channels of Audio I/O for SQ MixerThe SQ MADI from Allen & Heath is a comprehensive MADI I/O module for their SQ Series of mixing desks, enabling the connection and syncing with broadcast or recording systems, OB vans and 3rd party consoles for high-channel-count feeds across coaxial cables.
It’s possible for the SQ MADI card to be switched between either 48/96kHz and up to 64x64 channels which can be routed in or out. Two BNC inputs pair with two BNC outputs to allow for split or redundant setups, while a dual-function (in/out) BNC wordclock connection enables the console to be either master or slave in the system.
at a glance
• 64×64 channel digital audio
• 96 or 48 kHz operation
• Smux or High Speed 96 kHz modes
• Sync from inputs or separate wordclock
• Console controlled error handling
• Four BNC connectors (2 links)
• One BNC Wordclock I/O
The Tech Spec
| Features | Specification | Connectors | 4 x BNC (2 Links) |
|---|---|
| Sample Rate | 48 or 96 kHz |
| Modes | Smux or High Speed 96 kHz |
| Sync | From Inputs or Separate Wordclock |
| Package Weight | 0.87 lb |
| Box Dimensions (LxWxH) | 9.4 x 6.7 x 4.2" |
