Allen & Heath - DT168, 16 XLR Input / 8 XLR Output 96kHz Portable DX Expander
Allen & Heath - DT168, 16 XLR Input / 8 XLR Output 96kHz Portable Expansion For Your Dante Network
Allen & Heath - DT168
16 XLR Input / 8 XLR Output 96kHz
Portable DX Expander

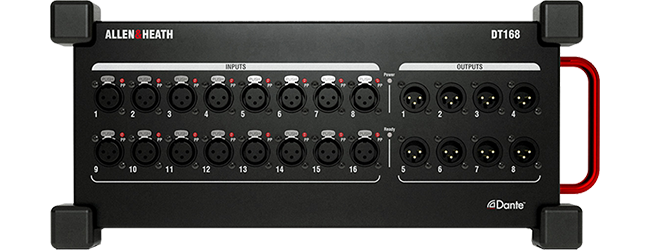

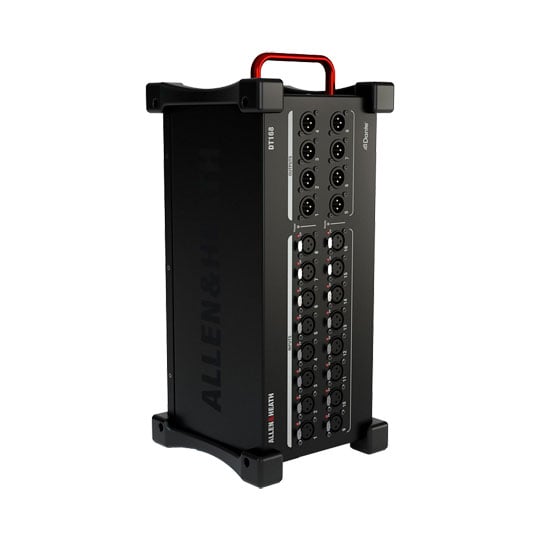

Portable Expansion for Your Dante NetworkThe Allen & Heath DT168 offers 16 microphone preamps and 8 line outputs in a compact stagebox form factor. Perfect for portable applications due to its rubber bumpers and handle, it can be deployed on stage or used as a drop-in expander in any SQ, Avantis, AHM-64 or dLive Dante network. DT168 delivers the renowned Allen & Heath preamps, together with 96kHz converters for best-in-class sound quality over Dante, along with Primary and Secondary ports for daisy-chain or redundancy through secure EtherCon connectors.
Up to 16 units can be added to an AHM-64, SQ, Avantis or dLive system when equipped with an SQ Dante or dLive 96kHz Dante card. DT Preamp Control software allows for remote control of multiple DT expanders, and enables the use of DT expanders with Dante equipped 3rd party digital mixers and sound management systems.
At A Glance
• Dante audio expander with 16 microphone preamps and eight line outputs
• Compatible with SQ Series, dLive C-Class, and dLive S-Class surfaces and mix racks
• Dual Dante ports for Redundant or Switched operation modes
• High-quality 48kHz or 96kHz audio conversion
The Tech Spec
| Features | Specification | Type | Digital Dante I/O Expander |
|---|---|
| Channels | 16 x 8 |
| Inputs - Mic Preamps | 16 x XLR |
| Phantom Power | 16 channels |
| Outputs - Main | 8 x XLR (line) |
| Data I/O | 2 x Ethernet (Dante Primary, Secondary) |
| Rackmountable | Yes (kit sold separately) |
| Power Source | Standard IEC AC cable |
| Dimensions | Width: 15.7" Height: 7.2" Depth: 7.5" |
| Weight | 10.45 lbs. |
