Compact 12-Channel Digital Mixer with Touchscreen

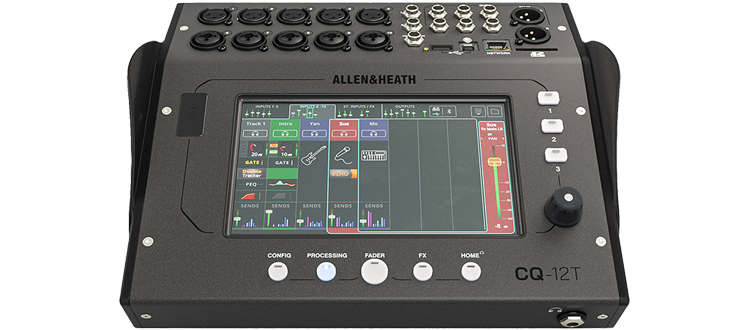

Allen & Heath - CQ-12T
Ultra-Compact 12in / 8out Digital Mixer
Prepare for an immersive mixing journey with the Allen & Heath CQ-12T. This compact digital mixer is an embodiment of impressive features. Imagine 96 kHz FPGA processing, seamless Bluetooth connectivity, wireless control convenience, and the added capability of SD/USB audio recording and playback. Tailored to suit bands, producers, and AV rental scenarios, the CQ-12T seamlessly adapts, whether you're leading the show in an intimate venue or playing a supporting role on a grander stage.
The best part? You don't need to be a tech guru. The mixer boasts an intuitive 7" touchscreen interface that simplifies navigation. Take command of the intricate mix engine, complemented by a suite of valuable assistants designed to elevate your soundscapes. From the gain assistant and feedback assistant to the FX assist engine and the sophisticated Automatic Mic Mixer (AMM), your audio endeavors are set to shine.

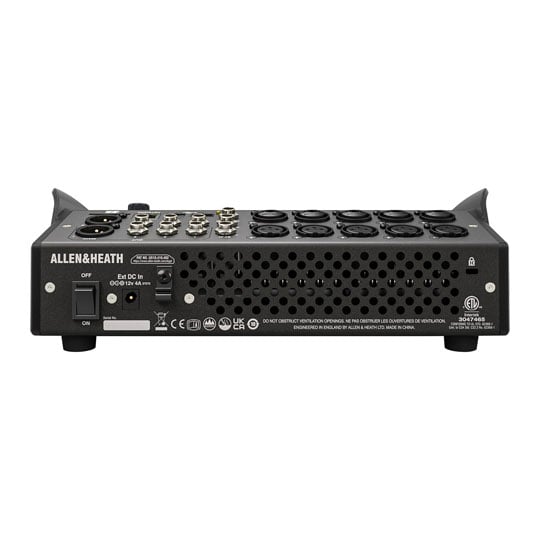

And there's more to explore. Each channel comes equipped with a versatile range of effects including EQ, compression, and gating. With a lineup of features encompassing 10 mic/line XLR/combo XLR-1/4" inputs, a stereo pair of balanced 1/4" inputs, two balanced XLR main outputs, and six 1/4" mix outputs, the CQ-12T is primed to integrate seamlessly into your setup. Don't worry, there's a dedicated headphone output too. The mixer conveniently ships with its own power supply, ensuring you're equipped to embark on your musical voyage.
at a glance
• Stereo USB record/playback with dedicated input channel
• Stereo Bluetooth playback with dedicated input channel
• 2 FX engines
• 3 Custom SoftKeys
• Dual Footswitch connection
• 7” Capacitive touchscreen with associated rotary control
• Assignable TRS headphone output
Seriously Impressive Features
CQ-12T is the smallest mixer in the CQ range and is ideal for home recording and streaming, band rehearsals, small gigs, and speech applications.
Just check out some of the standout features below!
Mix Smarter. Work Faster. Sound Better.
CQ takes Allen & Heath's renowned processing and effects, adds exciting new assistive mixing tools, and packages it all up into their smallest, and most affordable, digital mixer series yet.

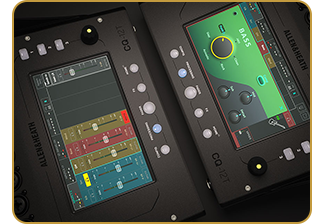

Pick Your Mixing StyleEvery input channel on CQ can be switched between two modes. Quick Channels offer instrument and application specific processing with the ability to dial in a full channel of processing via a single knob. Need more control? Switch to Complete Channels for advanced, in-depth tweaking of parameters.
Faster SetupsSetting the correct amount of gain for each channel isn’t the most exciting task, and it quickly eats into your setup time with multiple channels to take care of. CQ’s Gain Assistant quickly and accurately sets the optimal gain level for one or multiple input channels and continues to monitor levels during the performance to prevent any nasty peaks or surprises.
Say Goodbye to FeedbackCQ’s Feedback Assistant automatically detects and eliminates problem frequencies using up to 16 filters per output so you can mix with confidence – and forget about feedback.
A New Breed of Effects
Built-In FXCQ introduces a new suite of high-quality, user-friendly reverb, delay and modulation algorithms with instrument-specific presets for speedy setup. Selected units feature our new FX Assist tool, automatically shaping the effects and dynamically responding to your input signal to ensure your mix is enhanced by FX, not engulfed.
You’re Always In Control

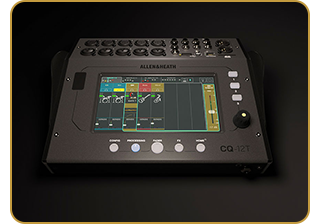

User FriendlyCQ-12T gives you all the tactile control you need to get around the interface quickly. The 7″ touchscreen and rotary control make it simple to set up and get mixing, and 3 Custom SoftKeys let you access commonly used functions at the push of a button.
CQ Apps
CQ MixPadRemote Control of the Mix
CQ4YouPersonal Monitor Mixing for Performers
Allen & Heath CQ-12T Ultra-Compact Digital Mixer
The Tech Spec
| Features | Specification | Number of Analog Input Channels | 12 |
|---|---|
| Number of Analog Output Channels | 8 |
| Max I/O Capacity | 12 x Input / 6 x Output |
| Mix Routing | 1 x Stereo Main LRC 6 x Mono Bus |
| Display | 7" Touchscreen (Backlit) |
| Input Polarity | Normal/Reverse |
| Dynamic Processing | Compressor, Gate |
| Solo/Mute | Solo, Mute per Input Channel, Bus, Master |
| Built-In Effects | 2 x Stereo Effect (Type Unspecified) |
| Automatic Mic Mixing | Yes |
| Sample Rates | 96 kHz |
| Analog Inputs | 5 x XLR 3-Pin Balanced Mic/Line Input 5 x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line Input 2 x 1/4" TRS Balanced/Unbalanced Stereo Line Input (1 Stereo Pair) |
| Analog Outputs | 2 x XLR 3-Pin Stereo Main Output (1 Stereo Pair) 6 x 1/4" TRS Balanced/Unbalanced Mix Output 1 x 1/4" TRS Unbalanced Stereo Headphone Output |
| Phantom Power | +48 V |
| Digital I/O | 1 x RJ45 (Network) |
| USB | 1 x USB-A (Audio Playback, Audio Streaming, External Memory, Service) 1 x USB-B 2.0 (Host Connection) |
| Max Multitrack Recording | 16 Tracks |
| Rack Mountable | Yes |
| Rackmount Size | 6 RU (with Optional Hardware) |
| Dimensions | 11.4 x 9.5 x 3.5" / 29 x 24.2 x 8.8 cm |
| Weight | 2.4 kg |
