Scan code:
LN102803
Manufacturer code:
AR2412/X

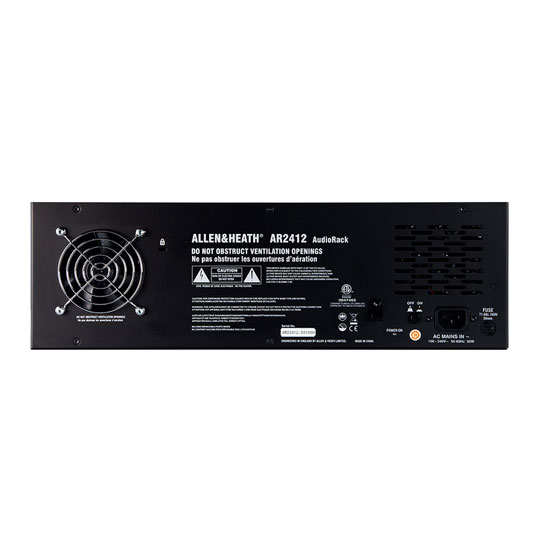

Allen & Heath 24 in 12 out stage box
Allen & Heath 24 in 12 out stage box - 24 XLR Input / 12 XLR Output – 48kHz
Scan code:
LN102803
Manufacturer code:
AR2412/X
Free Delivery
With a 10% deposit from just
£22.23
/ month (APR 15.9%)
Delivery Options
- By DPD On 30th Jan to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info
Allen & Heath - AR2412 Stage Box - 24 XLR Input / 12 XLR Output – 48kHz
Expand Your Digital Mixing System The AR2412 from Allen & Heath is a 24 XLR input, 12 XLR output Audio rack. The addition of an AR2412 to your existing QU system allows you to position your I/O upto a maximum of 100m from the mixing desk, connected by one single CAT5 cable running Allen & Heath’s dSNAKE porotocol. . dSNAKE provides control to the remote preamp, and all mic preamps can be recalled. The AR2412 includes a port for monitor connection to the ME-1 personal mixers, and also an expansion port which allows for daisy chaining to an AR84 Audio rack (QU 24 only).
Detailed Information
| Specification | Description |
|---|---|
| Type | Stagebox Interface |
| Compatibility | GLD, Qu, Avantis and SQ mixers |
| Channels | 24 x 12 |
| Inputs - Mic Preamps | 24 x XLR (mic/line) |
| Phantom Power | Remote controlled from mixer |
| Outputs - Main | 12 x XLR |
| Data I/O: | 1 x Ethernet (dSnake), 1 x Ethernet (ME personal mixers), 1 x Ethernet (additional racks) |
| Rackmountable | Yes, 3U |
| Power Source | Standard IEC AC cable |
Allen & Heath 24 in 12 out stage box
![Allen & Heath 24 in 12 out stage box]()
