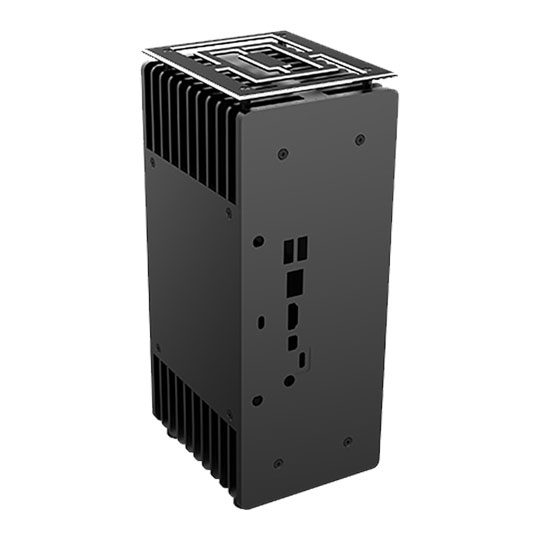

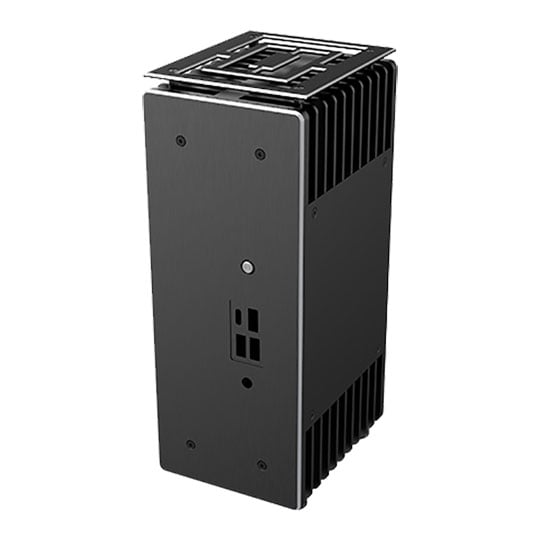

Akasa Turing ABX Compact Fanless Case

Akasa Turing ABX Compact Fanless Case for Gigabyte AMD Ryzen BRIX 4000U-Series Mini-PC w/ Radeon GPU, USB 3.2 Gen2 C

MORE INFO
MORE INFO
Thumbnail 1 : Akasa Turing ABX Compact Fanless Case Thumbnail 2 : Akasa Turing ABX Compact Fanless Case
Scan code: LN124861 Manufacturer code: A-NUC76-M1B
Order now and receive it by Thursday, 26th May
£149.99
Add To Basket
Get it Thursday, 26 MayIn stock
From £12.90 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £12.90
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £149.99
Total inc. interest: £154.67
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 26th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Superb Cooling Performance

Excess heat from the APU is effectively transferred from the aluminium core to the all-aluminium body which acts as a heatsink to dissipate the heat to the surroundings. Ensuring the system runs at optimal thermal performance.


Supports up to Four 4K Displays

The Turing ABX case provides connector openings for connectivity of four 4K displays. Perfect for an array of business applications such as security and digital signage.


Wide Application Capabilities

Ideal for home and business applications from digital signage to home-theatre setups and more.


Contemporary and Made-to-Last Design

Aluminium case provides durability and long-lasting use. Coupled with symmetrically extruded fins and striking classical inspired panels for stunning aesthetics and functionality, which means the case look great in any environment.


Cool Storage, Cool Performance

Internal M.2 SSD heatsink reduces heat and enhances performance.

Features
• Solid aluminium fanless cooling design.
• Stylish cover panels with diamond effect.
• Positioned vertically or horizontally.
• Perfect for home, business and commercial applications.
• Suitable for up to Ryzen™ 7-4800U.

Additional Specifications:
• Material Aluminium.
• Motherboard Types UCFF 4" X 4".
• Motherboard Support Gigabyte AMD RyzenTM 4000U Series BRIX Mini-PC with Radeon™ GPU. Support up to Ryzen 7 4800U.
• Maximum TDP Support 25W.
• Dimensions 118.5 x 95 x 248.2mm (W x D x H).
• Drive Bays 2.5” SSD/HDD x 1.
• Front I/O Power switch, power and HDD LED, USB 3.2 Gen 1 Type-A port x 3 , USB 3.2 Gen 2 Type-C port , HD Audio in/out.
• Rear I/O DC-in port, USB 3.2 Gen 1 Type-A port x2, RJ45 LAN port, USB 3.2 Gen Type-C port, HDMI port, Mini DisplayPort.
• Antenna Fitting Holes 2.
• Security Kensington lock.
Specifications
Core Chassis Specifications
Case Edition A-NUC76-M1B
Case Form Factor UCFF
Motherboard Form Factor UCFF 4" x 4"
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HD Audio
  • 1 x HDD Activity LED
  • 1 x Power LED
  • 1 x Power Switch
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Drive Bays 1 x 2.5" Internal
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays
Fans Included None
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height
Max GPU Card Length
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour
Chassis Construction Materials
Dimensions 118.5 x 248.2 x 95 (WxHxD mm)
Weight
Please Note
Additional Information
Scan Code LN124861
Model Number A-NUC76-M1B
GTIN 4710679551586
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Akasa
