Scan code: LN81363 Manufacturer code: A-NUC35-M1B

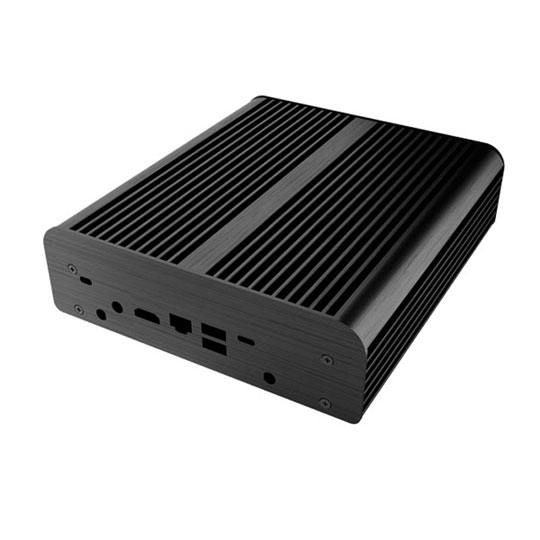

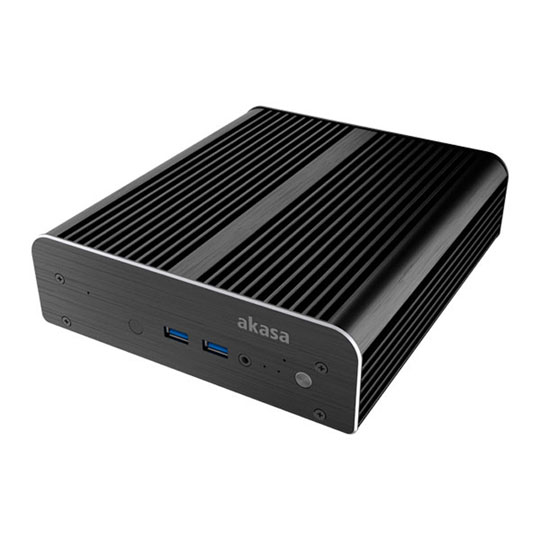

Akasa Newton S7 Fanless / Silent Case for NUC7 Motherboards

Akasa Newton S7 Aluminum Fanless case for NUC7i5/i3 Supports 2.5" HDD/SSD with front I/O Ports

MORE INFO

Thumbnail 1 : Akasa Newton S7 Fanless / Silent Case for NUC7 Motherboards

Thumbnail 2 : Akasa Newton S7 Fanless / Silent Case for NUC7 Motherboards

Akasa Newton S7 Fanless / Silent Case for NUC7 Motherboards : image 1

zoom

Akasa Newton S7 Fanless / Silent Case for NUC7 Motherboards : image 2

zoom

Scan code: LN81363 Manufacturer code: A-NUC35-M1B

Share Facebook Twitter Google Reddit Pinterest LinkedIn

£64.99Item due on 08 March 2021

Pre Order

Due 8th Mar

Delivery Options

By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Collect instore Collect from our Bolton store, BL6 6PE | Free

Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store | £4.79

Collect your parcel from your newsagents, petrol stations and convenience stores

Services

SCANPROTECT Protect against installation damage for 28 days. More info

ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Share Facebook Twitter Google Reddit Pinterest LinkedIn WhatsApp

Product Overview

Akasa Newton S7

Fanless case for 7th Generation Intel® NUC boards.

• Support 2.5” SATA HDD / SSD.
• Stylish front panel diamond edge finish.
• Two front panel USB 3.0 ports.
• Support IR remote function.
• Support microphone array.

Fanless

Aluminium fanless CPU cooling design.

Features Compatible with: Intel® NUC Board NUC7i5BNH / NUC7i5BNK / NUC7i3BNH / NUC7i3BNK.
Materia:l Aluminium.
Motherboards types: UCFF 4" X 4".
Motherboard support: Intel® NUC Board (kit): NUC7i5BNH / NUC7i5BNK / NUC7i3BNH / NUC7i3BNK.
Dimensions: 176.5 x 200 x 53.5mm (W x D x H).
Drive bays: 2.5" SSD/HDD (up to 9.5mm high).
Front I/O: Power button, power and HDD led, USB 3.0 port x 2, IR receiver opening, HD Audio in / out.
Antenna fitting holes: 2.
Security: Kensington lock.
VESA mounting: Supported.
Optional power adaptor: AK-PD065-01M.

Specifications

Core Chassis Specifications
Case Edition	Newton S7
Case Form Factor	UCFF
Motherboard Form Factor	UCFF 4" x 4"

I/O, Bays & Expansion
Front/Side/Top Panel I/O	2 x USB 3.0
Drive Bays	1 x 2.5" Internal
Standard Expansion Slots
Vertical Expansion Slots

Fans & Filters
Fan Bays
Fans Included	None
Fan Controller/Hub
Dust Filters

Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility

Clearances
Max CPU Cooler Height
Max GPU Card Length
Cable Routing Space

Side Panels
Window/s	No
Window Configuration
Window Construction

LED Lighting Functionality
LED Lighting	No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control

Power Supply Compatibility
PSU Included	No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length

Chassis Physical Specifications
Colour	Black
Chassis Contruction Materials	Aluminium
Dimensions	176.5 x 200 x 53.5 (WxHxD mm)
Weight
Please Note

Additional Information
Scan Code	LN81363
Model Number	A-NUC35-M1B
GTIN	4710614538153

TekSpek Guides

NUC PCs
Date Issued: 29th Oct 2013

Chip giant Intel produces the microprocessors - or brains - used in approximately 80 per cent of PCs. The firm acutely understands that desktop computers need to be made more appealing if they're to be lifted from the malaise affecting the industry.

Intel Next Unit of Computing (NUC)
Date Issued: 26th Mar 2013

It's a great time to be interested in small-form-factor computing. Once a niche hobby for home-theatre PC enthusiasts, small-form-factor designs are now capturing everyone's imagination thanks in no small part to the Raspberry Pi phenomenon.

Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Akasa Newton S7 Aluminum Fanless case for NUC7i5/i3 Supports 2.5" HDD/SSD with front I/O Ports is rated 1.0 out of 5 by 1.

Rated 1 out of 5 by Alfafaf973 from Don't buy unless you don't need to use your NUC Review for Akasa Newton S7 bought in June 2020 I bought the Akasa Newton S7 (compatible with the intel NUC Box7i5BNH I’ve got). I was initially excited to have a fanless chassis assuming the intial NUC case is a little bit noisy in a quiet room especially under load (you can hear the fan). Unfortunately, my excitement faded almost immediately and turned to disappointment. It took me a good 1-1.5 hours to disassemble the original NUC and reassemble to the Akasa chassis (you need to be very cautious to avoid damaging your board). In addition, you need to accept loosing IR and microphone from your NUC chassis (they are so embedded so there is no way to remove them safely and anyway, there is no space in the Akasa chassis to fit them), the Wifi/Bluetooth (you need to invest in a Wifi and Bluetooth external antenna kit for the embedded intel chip to work properly) and the SD slot (this one was mentioned in the specifications). Once switched on, it is really quiet. However, and it is my biggest problem, it works well only if your have reasonable workload. In my case, Microsoft office applications, 20 tabs in Edge browser and a youtube video. I used a software called Speedfan to control the temperature. The CPU temperature was around 40 degree Celsius with this kind of workload. As soon as you try something more CPU intensive (like a light video editing software), the CPU temperature jumps to 65 degree, the Hard drives get hotter and hotter and after 10-15 minutes, the system just stops working with a message like ‘…overheat…cool down your system…’. I didn’t give up there. I ordered some very good thermal compound paste from Artic, re-opened the Akasa chassis and re-applied the thermal paste over the CPU. Same result. I forgot to mention that the Akasa chassis got extremely hot too. As a conclusion, if your workload is not too intensive, you will end up with a working solution with absolutely no noise. If you need to just go over what I've mentioned earlier, this solution is not for you as you won’t be able to use your system. The original NUC chassis/fan associated is noisy under load but it can sustain the load at least without rebooting your system. Akasa Newton S7 is a no-go for me.

Date published: 2020-06-19
