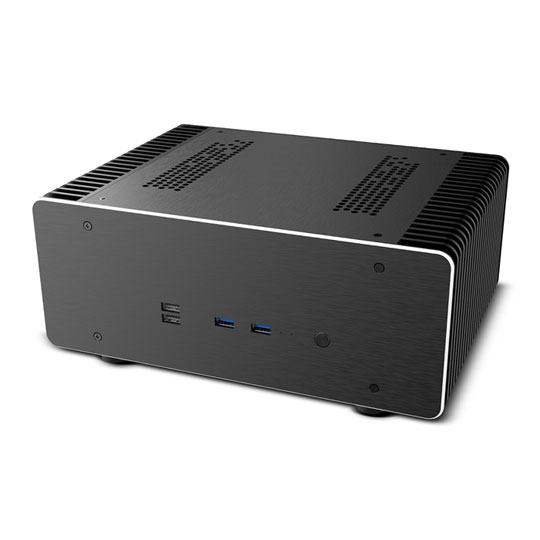

Akasa A-ITX48-M1B Maxwell Pro Fanless Case

Akasa Maxwell Pro, Aluminum Fanless Case, Supports 65W TDP CPU, Supports Mini-ITX Boards

Thumbnail 1 : Akasa A-ITX48-M1B Maxwell Pro Fanless Case Thumbnail 2 : Akasa A-ITX48-M1B Maxwell Pro Fanless Case Thumbnail 3 : Akasa A-ITX48-M1B Maxwell Pro Fanless Case
Scan code: LN109841 Manufacturer code: A-ITX48-M1B
£129.98
Order now and receive it between 4th Dec and 10th Dec
From £11.67 / month (APR 14.9%)
Monthly Payment: £11.67
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £129.98
Total inc. interest: £140.02
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 4th Dec To 10th Dec to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Akasa Maxwell Pro

Experience true silence in Akasa’s most powerful, premium fanless aluminium case for compact Mini-ITX boards. Supports common Intel® and AMD desktop processors up to 65W TDP.


Advanced Performance

Bi-symmetrical extruded fins on either side of the case maximise the surface area of the exterior for increased heat dissipation. Coupled with internally hi-efficient passive thermal module and heat pipes to ensure the Thermal Design Power (TDP) is met, with the case supporting processors up to 65W TDP.


True Silent Experience

Fanless CPU design eliminates the need for noisy mechanical fans so that true silence can be achieved. Paired with the use of Solid State Drives, one can truly immerse themselves in the experience of soundless acoustics. Breathability, provided by multi-functional apertures which optimise natural convectional airflow, is fused with contemporary design for a minimalist yet functional case.


Universal Socket Fitting & Easy Installation

Easily adjustable thermal module with 4 copper heat pipes which are universally compatible with Intel® and AMD boards. Superbly engineered for maximum efficiency and ease of use.


Modern Design for an Array of Applications

Geometrically balanced case features a black anodised aluminium body with diamond-edge finish, combined with bi-symmetrical extruded fins for a beautifully crafted, modern case. Perfect for a wide range of applications and environments.


Features

• Material: Aluminium body & thermal modules, Copper heatpipes
• Body finish: Brushed, Anodised
• Dimension: 280 x 209 x 110 mm (W x L x H)
• Net Weight: 3.03 (kg)
• Motherboard & CPU support: Mini-ITX motherboards, Intel® 1151/1200 with Graphics Technology, AMD AM4 APUs, Maximum of 65W TDP
• Internal drive bays: Two for 2.5” SSD/ HDD
• Cooling: Copper heatpipes x 4
• Aluminum thermal module x 5
• Front I/O: USB 3.1 Gen 1 Type-A x 2, USB 2.0 Type-A x 2, Power LED x 1, HDD LED x 1, Power button x 1
• Rear I/O: Antenna fitting holes x 2, Kensington lock x 1, Serial ports x 2, Power connector x 1
Specifications
Core Chassis Specifications
Case Edition Maxwell Pro
Case Form Factor
Motherboard Form Factor Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HDD Status LED
  • 1 x Power Button
  • 1 x Power LED
  • 2 x USB 2.0
  • 2 x USB 3.1 Gen1 Type-A
Drive Bays 2 x 2.5" Internal
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays
Fans Included None
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height
Max GPU Card Length
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black (Anodised)
Chassis Contruction Materials Aluminium
Dimensions 280 x 110 x 209 (WxHxD mm)
Weight 3.03 kg (Approx)
Please Note Maximum of 65W TDP for CPU
Additional Information
Scan Code LN109841
Model Number A-ITX48-M1B
GTIN 4710679550305
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
