Scan code: LN33907 Manufacturer code: AK-CCE-7106HP

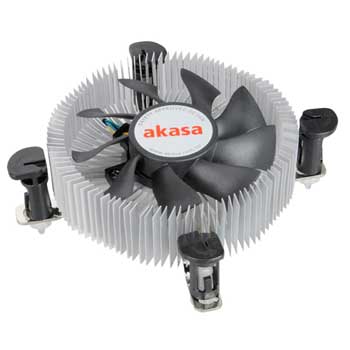

Akasa AK-CCE-7106HP Low Profile Intel CPU Cooler

Akasa AK-CCE-7106HP Low Profile Low Noise Copper Core Heat Sink Fan, Micro/Mini-ITX/HTPC, Intel LGA775/LGA115X

Thumbnail 1 : Akasa AK-CCE-7106HP Low Profile Intel CPU Cooler
Akasa AK-CCE-7106HP Low Profile Intel CPU Cooler : image 1
Scan code: LN33907 Manufacturer code: AK-CCE-7106HP
3xs Approved
£9.98
Order now and receive it between 2nd Dec and 8th Dec
Delivery Options
  • By DPD On 2nd Dec To 8th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview

Low Noise and Ultra Compact

Ultra compact and low noise cooler for Intel Core 2 Duo, Core i3 and Core i5 (73W) CPU’s. The low profile design with embedded S-Flow fan makes it a perfect solution for mini-ITX, HTPC and SFF systems.


Maximum Heat Dissipation

Aluminium heatsink with full height copper core and quiet HDB fan ensure high efficiency and long life. High engineered multi directional aluminium heatsink maximises heat dissipation and the PWM fan provides optimal CPU, motherboard and VRM cooling with minimal noise levels.


Easy to Install

Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on both LGA775 and LGA115X platforms without any mounting adjustment, pushpins will automatically slide into correct position. AK-CCE-7106HP is designed to work with CPU’s up to 73W but greater cooling efficiency can be attained with efficient case airflow. Pre-applied high performance thermal compound ensures clean and easy installation.

Features
• Hi-engineered aluminium heatsink with large full height copper core.
• Multi-directional fins for maximum system cooling.
• Embedded 8cm PWM fan with S-Flow blades and long life HDB bearing.
• Intel approved push pins provide maximum compatibility.
• Dual mounting for Intel LGA775 and LGA115X platforms.
• High performance thermal interface is pre-applied.
• Total height of less than 30mm.
Specifications
Cooler Specifications
Edition AK-CCE-7106HP
Cooler Form Factor Low-Profile Bottom Flow Single Tower
Heatpipes
Cooler Features Aluminium Heatsink
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 775
Max. TDP
Fan Specifications
Included Fan Configuration
Fan Edition
PWM Fan Yes
Fan Bearing Type Hydro-Dynamic Bearing
Fan Colour Black
LED Lighting
Fan/Pump Connectors 1 x 4-pin
Max. Fan Speed 600 ~ 3000 rpm
Max. Fan Airflow 33.5 CFM
Max. Air Pressure 3.76 mm H²O
Max. Sound Level 18.9 ~ 31.9 dBA
Materials
Cooler Materials Aluminium / Copper
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions 87.2 x 29.5 x 85.2 mm (WxHxD)
Total Dimensions
Weight 220 g
Additional Information
Scan Code LN33907
Model Number AK-CCE-7106HP
GTIN 4710614530614
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Akasa
