LP PWM PWM EBR bearing Cooler for mini-ITX and micro-ATX motherboards with LGA 775,1155,1556 Sockets

Akasa low profile cooler with PWM EBR bearing fan for Intel LGA1156/1155/1151/1150/775 (26mm height).

Scan code: LN47348 Manufacturer code: AK-CC7122EP01 Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Mid Range
Delivery options £5.48 By DPD On 24th Apr 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

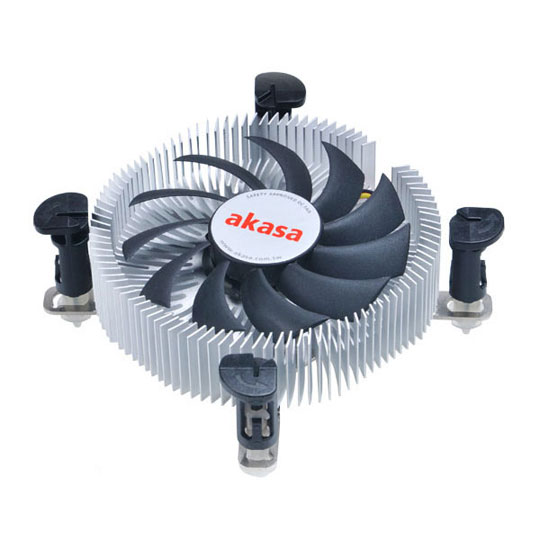

Product Overview Ultra compact and low noise cooler for Intel Core 2 Duo and Core i3 CPU’s. The low profile design with embedded fan makes it a perfect solution for mini-ITX, HTPC and SFF systems.

Aluminium heatsink and enter bearing fan ensure high efficiency and long life. High engineered multi directional aluminium heatsink maximizes heat dissipation and PWM fan provides optimal CPU, motherboard and VRM cooling with minimal noise levels.

Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on both LGA775, LGA1150, LGA1151, LGA1155 and LGA1156 platforms without any mounting adjustment, pushpins will automatically slide into correct position. Pre-applied high performance thermal compound ensures clean and easy installation Features • Hi-engineered aluminium heatsink with large full height copper core
• Multi-directional fins for maximum system cooling
• Embedded 8cm PWM fan with long life Enter bearing
• Intel approved push pins provide maximum compatibility
• Dual mounting for Intel LGA775, LGA1150, LGA1151, LGA1155 and LGA1156 platforms
• High performance thermal interface is pre-applied
• Total height only 26mm
Cooler Specifications
Cooler Form Factor
Cooler Features
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 775
Max. Recommended TDP
Max. Cooling Capacity
Fan Specifications
Included Fan Configuaration
Fan Edition
PWM Fan No
Fan Bearing Type
Fan Colour
LED Lighting
Fan/Pump Connectors
Approx Fan Speed 600 - 3000 rpm
Manual Fan Speed Controller Yes
Fan Airflow 23.45 CFM
Air Pressure
Sound Level (dB) 30.75 dB
Sound Level (Sone)
Fan Material
Cooler Material Aluminium
Included TIM (Thermal Interface Material)
Dimensions & Weight
Fan Dimensions 75 x 75 x 10 mm
Heatsink/Radiator Dimensions 85.2 x 87.2 x 26 mm (WxHxD)
Total Dimensions
