Scan code: LN40974 Manufacturer code: AK-CC7117EP01

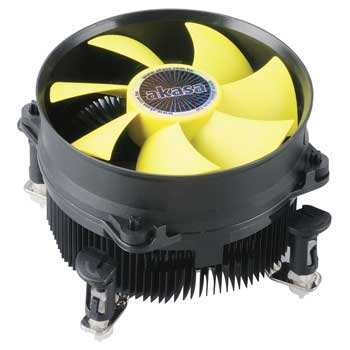

Akasa AK-CC7117EP01 K32 Intel PWM CPU Cooler

Akasa AK-CC7117EP01 K32 High Performance CPU Cooler, 1x 92mm PWM Fan, Aluminium Fins/Core, Intel Socket LGA775/LGA115X

MORE INFO
MORE INFO
Thumbnail 1 : Akasa AK-CC7117EP01 K32 Intel PWM CPU Cooler
Akasa AK-CC7117EP01 K32 Intel PWM CPU Cooler : image 1
Scan code: LN40974 Manufacturer code: AK-CC7117EP01
3xs Approved
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
£16.99
Add To Basket
Get it Tomorrow, 29 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 30th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview

Omni-Directional Heatsink

K32 uses a high engineering omni directional heatsink providing efficient CPU and motherboard zone cooling. Low noise 9.2cm PWM fan in killer Viper yellow uses Intel approved power management (PWM) where speed is regulated automatically by CPU usage. Under normal conditions the CPU fan speed is low ensuring low noise computing.


Easy Installation

Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on both LGA775 and LGA115X platforms without any mounting adjustment, pushpins will automatically slide into correct position.


Works with CPUs up to 95W

K32 is designed to work with CPU’s up to 95W but greater cooling efficiency can be attained with efficient case airflow. Pre-applied high performance thermal compound ensures clean and easy installation.

Features
• Compatible Socket type: Intel LGA775, LGA1150, LGA1151, LGA1155 & LGA1156.
• Cooler dimension: 94.8 X 94.8 X 62.3 mm.
• Heatsink material: Aluminium fins and core.
• Weight: 326g.
• Installation: Push-pins.
• Fan dimension: ∅92 x 25 mm.
• Fan speed: 600 - 3000 RPM (PWM controlled).
• Max airflow: 56.81 CFM.
• Max air pressure: 4.05 mm H2O.
• Noise level: 17.2 – 30.54 dB (A).
• Voltage rating: 12V DC.
• Bearing type: Enter Bearing.
• Fan connector: 4pin PWM.
• Package Contents:
K32 High performance cooler.
Installation manual.
Specifications
Cooler Specifications
Edition K32
Cooler Form Factor Top Flow Single Tower
Heatpipes
Cooler Features
  • Aluminium Fins
  • Aluminium Heatsink
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 775
Max. TDP
Fan Specifications
Included Fan Configuration 1 x 92mm
Fan Edition
PWM Fan Yes
Fan Bearing Type
Fan Colour Yellow
LED Lighting
Fan/Pump Connectors 1 x 4-pin
Max. Fan Speed 600 - 3000 rpm
Max. Fan Airflow 56.81 CFM
Max. Air Pressure
Max. Sound Level 17.2 - 30.54 dBA
Materials
Cooler Materials Aluminium
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions 94.8 x 62.3 x 94.8 mm (WxHxD)
Total Dimensions
Weight 362 g
Additional Information
Scan Code LN40974
Model Number AK-CC7117EP01
GTIN 4710614532007
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Akasa
TekSpek Guides
Intel Branding Part I
Intel Branding Part I
Date Issued: 1st Jul 2009

Intel’s been on a mission of late. That mission revolves around grouping and standardising key technologies under various banners that are designed to ensure hardware compatibility and consumer ease of use. We’ll take a closer look at three such technologies that fall under the headings of Centrino, Viiv, and vPro, respectively.

Read More

Intel Core 2 Duo (Conroe)
Intel Core 2 Duo (Conroe)
Date Issued: 20th Oct 2008

The purpose of this TekSpek is to delineate the publicly known features of Intel’s next generation desktop microarchitecture. Codenamed Conroe and officially titled Intel Core 2 Duo, it’s loosely based on the current mobile Yonah (Core Duo) underpinnings.

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Overclocking
Overclocking
Date Issued: 20th Oct 2008

This TekSpek explains why you’d want to overclock your graphics board, the risks in doing so and how you can go about doing it.

Read More

Core 2
Core 2
Date Issued: 14th Jun 2008

There’s been a lot of hype about Intel’s Core 2 recently, even since they launched Core in fact. Words like Conroe, Badaxe and Allendale have been flying around. The bottom line is that Core 2 is the name of Intel’s latest line of CPUs, based on a new micro-architecture, designed for speed and efficiency.

Read More

System Noise Reduction
System Noise Reduction
Date Issued: 5th Mar 2007

Anybody who has been near their share of computer systems will appreciate that not all systems make the same amount of noise. There are a number of reasons for why this is so. Firstly, a computer makes noise for different reasons. Generally, anything mechanical is going to make noise.

Read More

Akasa AK-CC7117EP01 K32 High Performance CPU Cooler, 1x 92mm PWM Fan, Aluminium Fins/Core, Intel Socket LGA775/LGA115X is rated 4.6 out of 5 by 15.
Rated 3 out of 5 by from Very fiddly to install This is very fiddly to install and the pins you push into attach to the motherboard feel cheap. Once attached, it runs okay, but you better hope you don't have to remove it again at some point in the future.
Date published: 2020-08-20
Rated 5 out of 5 by from Works perfectly on 6th gen i3 I am using this to cool an i3-6100, which has a relatively low TDP of 54w. It does a great job of keeping the CPU cool, without being too noisy. The black design and yellow fins are really nice, the only thing it lacks is a copper core, but not the end of the world. Having just ordered an i5-6600 to replace the i3, it will be interesting to see how well it cools that. The heatsink is rated up to 95w, so I imagine it will do the job nicely seeing as the i5 has a TDP of 65w. Overall I definitely recommend this product.
Date published: 2019-03-30
Rated 5 out of 5 by from Good replacement for stock cooler Always find that the intel stock cooler needs too much force to push in the MB. These are low cost, well made and are much easier to fit. Also you can get a little bit of overclocking out of them but don't go crazy - buy a cooler ment for that.
Date published: 2019-03-08
Rated 5 out of 5 by from Good CPU fan I have purchased more than 5 of these fans for different projects. They are easy to install and have all functioned correctly. The clips are easy to insert, and release if necessary. I have used them on simple applications where CPU's have been used in the standard configuration and not overclocked. They come with a patch of thermal conductive paste already in place.
Date published: 2018-05-10
Rated 5 out of 5 by from Quiet and simple to fit Fitted this on a core i5 chip, exactly the same fitting as the stock cooler and so much quieter.
Date published: 2018-04-12
Rated 4 out of 5 by from Better than stock by a significant margin, Justifiable price. Given that the heatsink is around twice the height, the fan twice the size (and twice the maximum RPM in some cases), this will significantly drop temps from stock. Pairs well with cheaper overclockable chips (Pentium G3258 comes to mind), also with locked chips that you simply demand silence from. In my opinion, if you're not going for higher end aftermarket cooling, and you're just buying a 1150/1151 chip, you should probably get this, or a similar cooler.
Date published: 2016-07-19
Rated 5 out of 5 by from replacement for cpu fan needed a new fan as the old one broke a blade when blowing dust out of comp, works a treat
Date published: 2016-05-12
Rated 5 out of 5 by from Excellent Buy Very good quality and value Very good quality and value Very good quality and value Very good quality and value Very good quality and value
Date published: 2016-05-02
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_15
  • loc_en_GB, sid_40974, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

will this fit a acer ax3950 pc

Asked by: Jade1975
Hello, Looking at the motherboard for that PC, it would appear the heatsink is screwed on, rather than using the standard Intel push pins. That will mean there is a backplate on the back of that motherboard with the captive nuts poking through the holes to screw the Acer heatsink to. There is definitely (but not certainly) a possibility that you could fit this heatsink. A few times with Dell motherboards with the back plate, I have used a heat gun to remove the backplate, thus leaving the holes empty and enabling the use of a different heatsink. Please bear in mind that this could put undue stress/pressure on the CPU and possibly even bend the board slightly. Worth a try if it's not a really important system, but do so at your own peril.
Answered by: alex2468
Date published: 2019-05-31
