New
Scan code: LN121019 Manufacturer code: AK-CC1109BP01

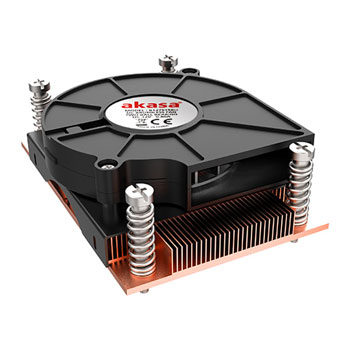

Akasa Low Profile CPU Cooler Forr AM4 Socket

Akasa AK-CC1109BP01 AM4 CPU Cooler, Low Profile, Side Blower Fan, Solid Copper Heatsink, Spring Loaded Screws, 75W TDP

Thumbnail 1 : Akasa Low Profile CPU Cooler Forr AM4 Socket Thumbnail 2 : Akasa Low Profile CPU Cooler Forr AM4 Socket
Scan code: LN121019 Manufacturer code: AK-CC1109BP01
£24.98
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 6th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Side Blowing Fan

1U low profile height ensures less space is taken up and perfect for server setups with cramped configurations. Side blowing fan forces hot air produced by the CPU out of the heatsink.


Solid Copper Heatsink

Copper heatsink provides faster heat transfer from CPU to heatsink due to its heat conductivity properties.


Spring-Loaded Screws

Spring-loaded screws allow for a consistent and balanced connection, as well as a higher vibration tolerance to make sure that connection remains intact.


Twin Ball Bearing

Twin ball bearing reduces friction because of a lower surface area resulting in a longer fan life span.


Features


• Socket Type: AM4.
• Cooler Dimension: 104 x 75.94 x27.6mm.
• Heatsink Material: Copper.
• Weight: 367 g.
• Installation: Mounting screws.
• Fan Speed: 1200 – 5500 RPM.
• Max Airflow: 11.83 CFM.
• Max Air Pressure: 20.66 mm-H2O.
• Noise Level: 18.0 - 45.99 dB(A).
• Voltage Rating: 12V DC.
• Bearing Type: Twin Ball Bearing.
• Fan Life Expectancy: 80,000 hours / 25 °C.
• Fan Connector: 4-pin PWM.

Specifications
Cooler Specifications
Edition AK-CC1109BP01
Cooler Form Factor Low-Profile Bottom Flow Single Tower
Heatpipes
Cooler Features
  • Pure Copper Heatsink
  • Side-Air-Channel
Socket Compatibility AM4
Max. TDP
Fan Specifications
Included Fan Configuration
Fan Edition
PWM Fan Yes
Fan Bearing Type Dual Ball Bearing
Fan Colour Black
LED Lighting
Fan/Pump Connectors 1 x 4-pin
Max. Fan Speed 5500 rpm
Max. Fan Airflow 11.83 CFM
Max. Air Pressure 20.66 mm H²O
Max. Sound Level 45.99 dBA
Materials
Cooler Materials Copper
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions
Total Dimensions 104 x 75.94 x27.6mm mm (WxHxD)
Weight 367 g
Additional Information
Scan Code LN121019
Model Number AK-CC1109BP01
GTIN 4710679551326
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
