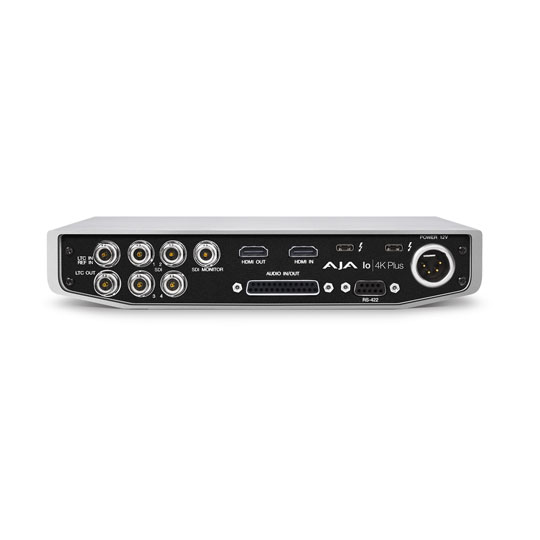

AJA Io 4K Plus

AJA Io 4K Plus 12-bit 4K/UltraHD/HD I/O via Thunderbolt 3, with 12G-SDI and HDMI 2.0 I/O, AC adapter

Scan code: LN84916 Manufacturer code: Io 4K Plus Request call
£2,844.49Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £71.04 / month (APR 15.9%)
High End
Free Delivery Delivery options Free By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview To be the best, you'll need the best.

AJA's Io 4K Plus is at the forefront of capture and output over Thunderbolt 3. From support for the latest 4K and Ultra HD devices to helping deep colour workflows with High Dynamic Range (HDR) or get every last millisecond with High Frame Rate (HFR), the Io 4K Plus can handle it.

The Io 4K Plus is powered and powers your workflow through Thunderbolt 3, which comes in the form of USB-C. Your work will fly through the ether at a whopping 40Gb/s, double the speed of Thunderbolt 2. You can also daisy chain up to six devices and display all through one type of cable.

AJA's hardware is supported and compatible with an extensive list of software, including Adobe Premiere and Final Cut Pro.
Features • Portable 4K/UltraHD and HD/SD capture and playback across Thunderbolt 3
• Backwards compatibility with existing Thunderbolt hosts
• 12G/6G/3G/1.5G-SDI and HDMI 2.0 I/O for 4K, UltraHD, 2K, HD and SD with HFR support up to 60p at 4:2:2
• Real time 4K/UltraHD to 2K/HD down-conversion
• 8-,10- and 12-bit 4:2:2 and 4:4:4 over 12G-SDI or HDMI 2.0 workflow support
• Two Thunderbolt 3 ports allow easy daisy-chaining of up to six Thunderbolt devices
• 16-channel embedded audio on SDI; 8-channel embedded audio on HDMI; 4-channel analog audio in and out via XLR break-out
• Downstream keyer
• Standard 12v 4-pin XLR for AC or battery power
• Compatibility with creative applications including Adobe Premiere Pro, Apple Final Cut Pro X, Avid Media Composer, FilmLight products, AJA Control Room and more
• RS-422 VTR control, Reference, LTC Input
• Headphone jack and level control for mobile environments
TV Type
Supported TV Standards
HDTV Compatible No
Remote Control No
Media Recorder No
Media Center Compatible No
Teletext No
Radio No
Dual Tuner Compatible No
Package Type

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

60 months
DOA Period:
28 days
RTB Period:
12 months
