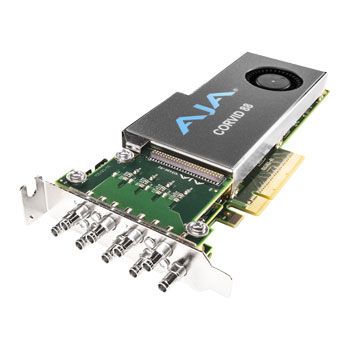

AJA - 'Corvid 88-T PCIe 2.0 Card'
High Density I/O in Any FormatThe AJA CORVID 88-T PCIe 2.0 I/O Card is designed to elevate your video and audio workflow with unmatched flexibility and power. This high-performance card allows you to individually configure each SDI connection as an input or output, supporting up to eight HD or SD channels on a single card. As your need for higher resolutions grows, the CORVID 88-T seamlessly combines SDI connections for multiple 4K/UltraHD channels, offering both versatility and future-proof capabilities.
key Features• 4K/UltraHD/2K/HD/SD up to dual 4K 50/60p
• 8x bidirectional 3G-SDI connections with 16-channel embedded audio per connection, up to a total of 64-channel/32-channel support
• RGB 4:4:4 12-bit and YCbCr 4:2:2 10-bit HFR workflows supported
• 4x independent Mixer/Keyer widgets.
• 8x independent 16-channel 48 kHz SDI embedded audio I/O engines
• 4K Closed Caption Support
• VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
• PQ, HLG and Dolby Vision Support
• HDR Metadata Capture and Auto Playback Detection
• Reference/LTC Input on card (Analog black burst or Tri-level)
• Full height and half height models
• RS-422 on internal header or bracket with full height model
• LTC input on internal header
• Includes support for the Apple M1 chip

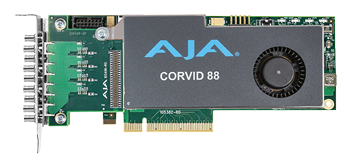

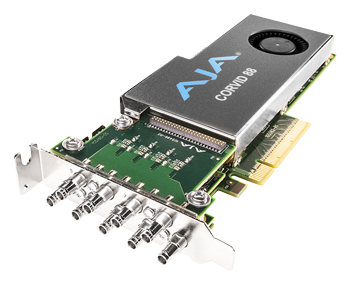

Multi-Stream, Multi-Format PCIe I/O Card
eight simultaneous inputs and outputsCorvid 88 allows AJA Developer Partner applications to access up to eight simultaneous input and output streams on a single PCIe card, making it perfect for ingest and playout servers as well as channel-in-a-box systems.
High Density Ingest And Output
different video formatsEach BNC connection on Corvid 88 can be set programmatically as either an input or output and each can support a different video format, provided all format use the same clock timing. Connections can also be linked together to support dual link or 4K/UltraHD formats.
High Frame Rate Support
High Frame Rate workflowsCorvid 88 supports 4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows. Working at frame rates of 48p, 50p and 60p ensure smooth motion for the most demanding 4K and UltraHD applications.
High frame rates are not limited to 4K and UltraHD with Corvid 88, multiple 720p and 1080p HD inputs and outputs are also supported at frame rates up to 50p and 60p, making Corvid 88 extremely flexible for your current and future needs.

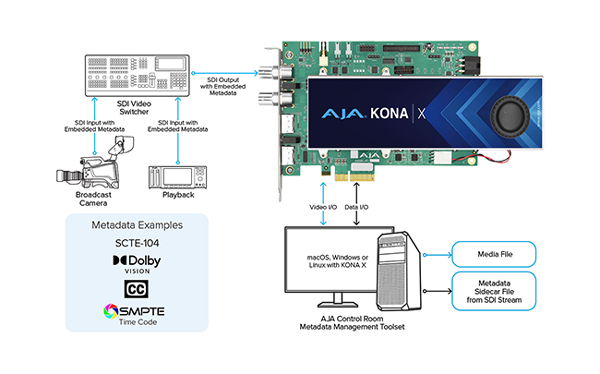

AJA Control Room Metadata Toolset
MetadataMetadata is the key for managing advanced workflows. AJA is bringing to market an entirely new way to harvest metadata in the SDI signal stream and export the metadata to a sidecar file.
This new feature, called AJA Control Room Metadata Toolset, is being introduced in Desktop Software v17.1 and adds the following functionality:
• Supports capture of any metadata type, including SCTE-104 and Dolby Vision metadata, that is part of the SDI Ancillary metadata payload.
• Using an AJA KONA capture card that supports SDI input and the included AJA Control Room software (such as KONA 5 or KONA X), the card captures the metadata, which is then preserved in a metadata sidecar file.
• AJA Control Room can playback the metadata to provide quality monitoring.
• AJA Control Room can export the metadata synchronized with the media on a per-frame basis.
Connections

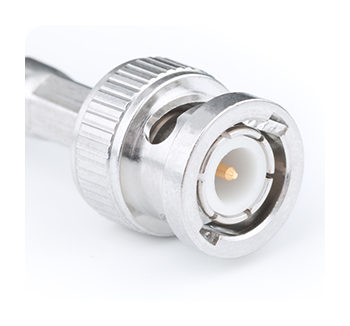

LTC and Reference InputCorvid 88 provides one external, switchable LTC/Reference Input connection on the back of the card. A second LTC input is available on an internal header for providing additional reference to Corvid 88.

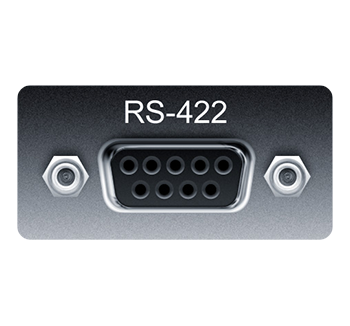

RS-422A built-in RS-422 connection is available either as an external connection on the full-sized Corvid 88 or as an internal connection on the low profile Corvid 88. RS-422 allows control of external devices for frame accurate ingest and layoffs.

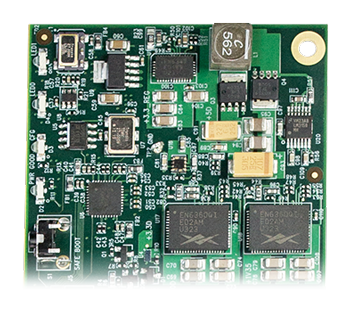

Processing
Key Features• 8 – Frame Stores (In or Out)
• 8 – Color Space Converters
• 4 – Mixer/Keyer widgets
• 8 – 1D LUTs
• 8 – Dual Link In
• 8 – Dual Link Out
• 8 – Independent 16-Ch embedded audio engines

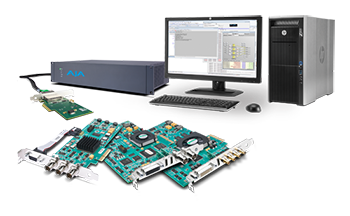

Powerful Platforms For Development Partners
Developer ProgramAJA's Developer Program allows partner companies to incorporate AJA products into their systems. By utilizing existing, proven video I/O devices, Developer Partners leverage AJA's expertise to develop and support these technologies, saving money and getting their integrated products to market more quickly.
Industry Leading Support
technical supportAJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Corvid installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
Corvid products are covered by a generous three year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
