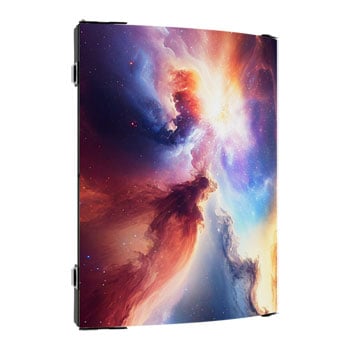

Absen SA-C Flexible Panel (2.6mm Pixel Pitch)
Absen SA-C Flexible Panel (2.6mm Pixel Pitch)
Scan code: LN167046 Manufacturer code: SABSSA26CRB
Call for price
  • Thumbnail 1 : Absen SA-C Flexible Panel (2.6mm Pixel Pitch)
  • Thumbnail 2 : Absen SA-C Flexible Panel (2.6mm Pixel Pitch)
  • Thumbnail 3 : Absen SA-C Flexible Panel (2.6mm Pixel Pitch)

Absen SA-C Flexible Panel (2.6mm Pixel Pitch)

Absen SA-C Flexible Pane, 2.6mm Pixel Pitch, 1500nits, 7680Hz, IP40/IP21, Brompton

Scan code: LN167046 Manufacturer code: SABSSA26CRB
Call for price

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free

Suggested Alternatives

Absen SA-C Flexible Panel
2.6mm Pixel Pitch

Absen SA-C Flexible Panel

Seamless Curves, Infinite PossibilitiesThe Absen SA-C flexible LED display is built for creative rental and staging projects that need impact, speed, and versatility. With flexible curvature from -30° convex to +30° concave, one-person angle adjustment, and vivid 1500-nit, 7680Hz performance, the SA-C makes it easy to create cylinders, S-curves, and seamless corner displays that stand out in any live environment.

Flex Without Limits

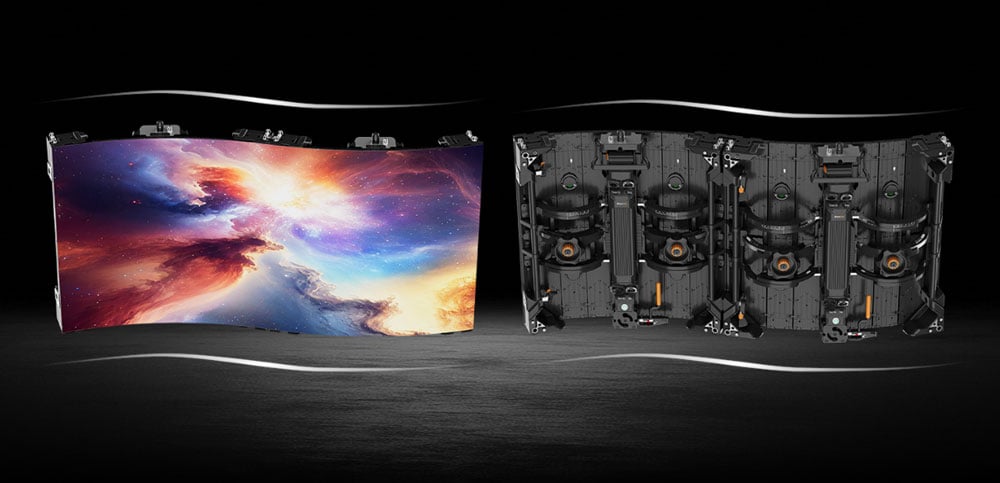

front and back views of the Absen SA-C Flexible Panel

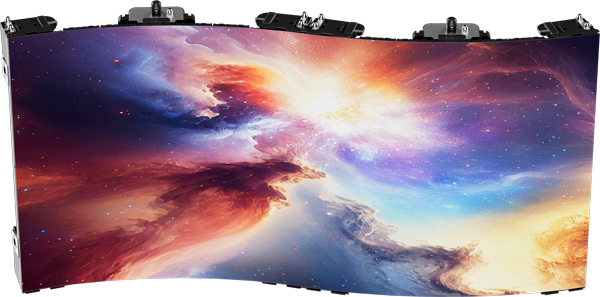

Dynamic StagingEngineered for dynamic staging, the SA-C Series flexes seamlessly from -30° convex to +30° concave in 1.25° increments, offering 25 angles to match any creative vision.

See It Bend as You Rotate

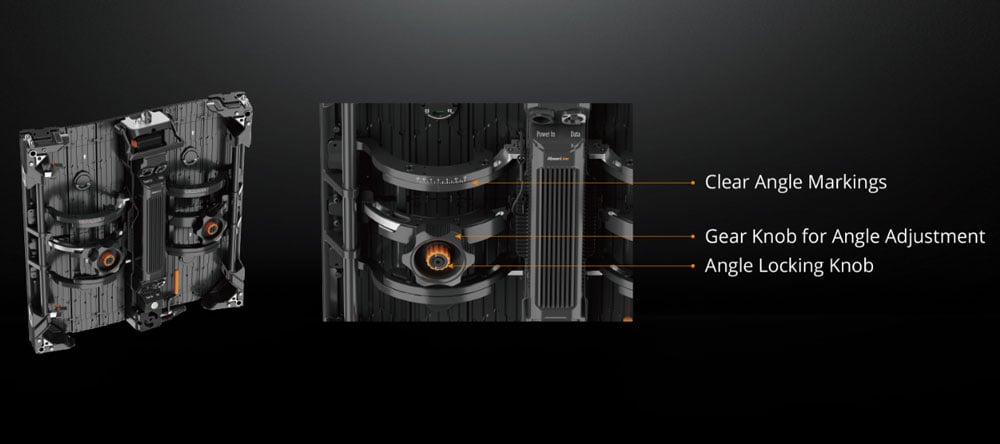

close up and breakdown of the absen sa-c gear system

Gear-DrivenThe SA-C series features an intuitive gear-driven mechanism, enabling smooth curvature adjustments with effortless single-handed control. Simply rotate the curve control system and watch as the panel bends responsively in real-time.

Stunning Visuals

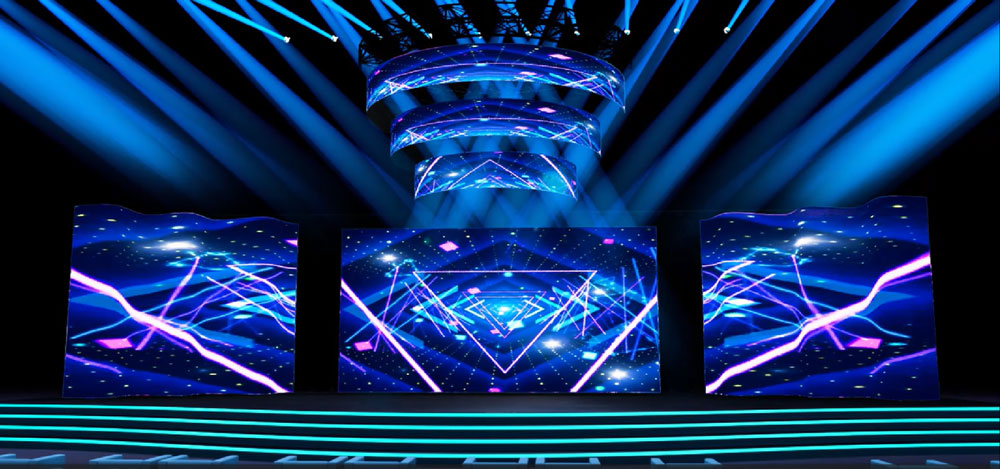

absen sa-c in use on stage

Zero Setup StruggleBoasting 1500nits high brightness and a 7680Hz refresh rate, the SA-C series delivers breathtaking stage visuals. Each panel weighs just 9kg (19.84lbs), with an ultra-lightweight design perfect for rental applications, cutting labor costs without compromising professional performance.

Pixels Dance at Your Command

absen sa-c in use on stage

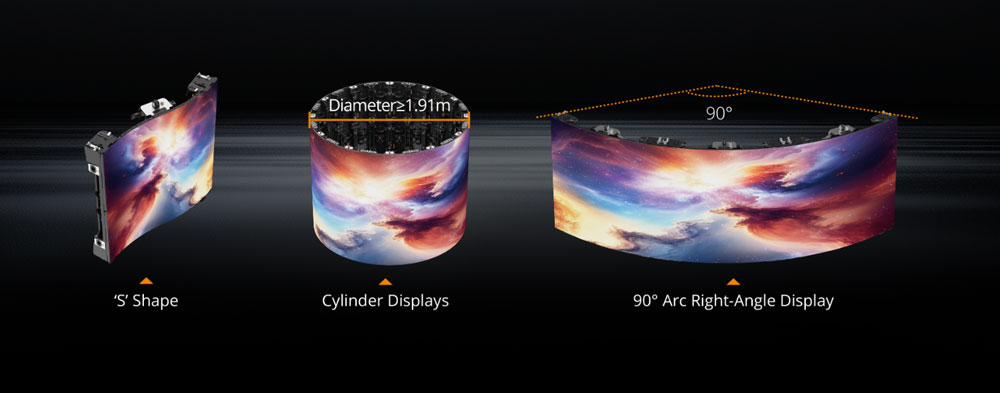

Versatile Stage ConfigurationsThe SA-C series morphs into versatile stage configurations — from graceful S-curves to seamless cylinders (requiring just 12 panels to form a circle) and 90° arc right-angle displays (only 3 columns needed). Redefine creative staging with intuitive shape-shifting capabilities.

SA-C Meets SA

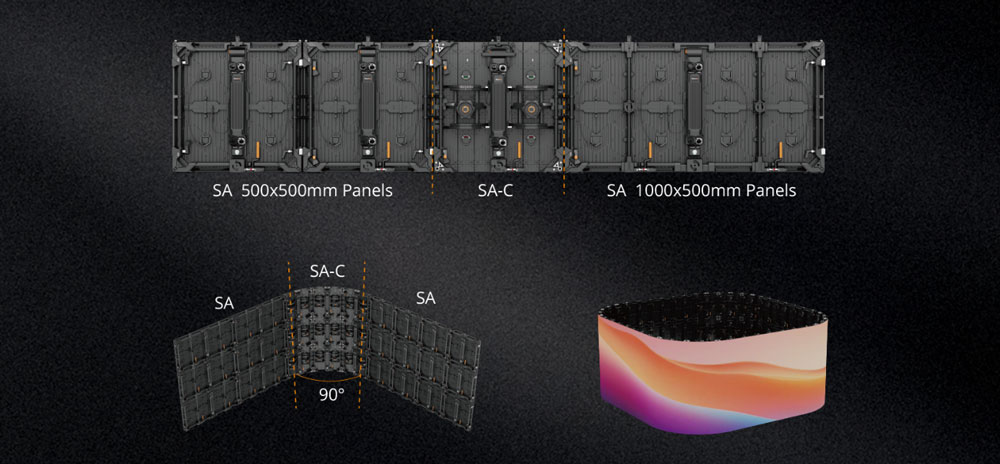

absen sa-c in different setups combined with the absen sa panels

Dynamic Stages UnleashedThe SA-C and SA series can be seamlessly connected for dynamic stages. Their identical power box design cuts accessory costs while unlocking limitless creative potential.

Rear Maintenance Design

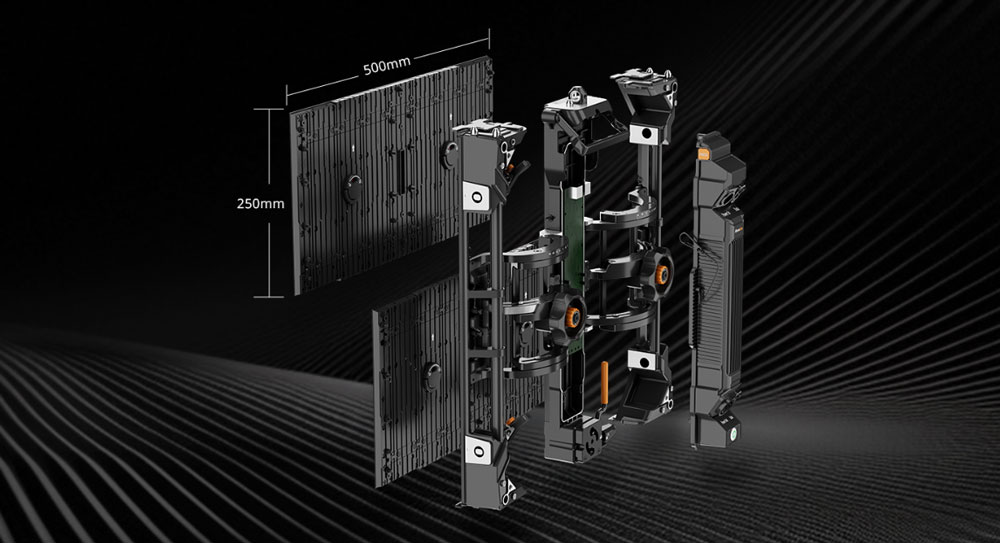

absen sa-c breakdown

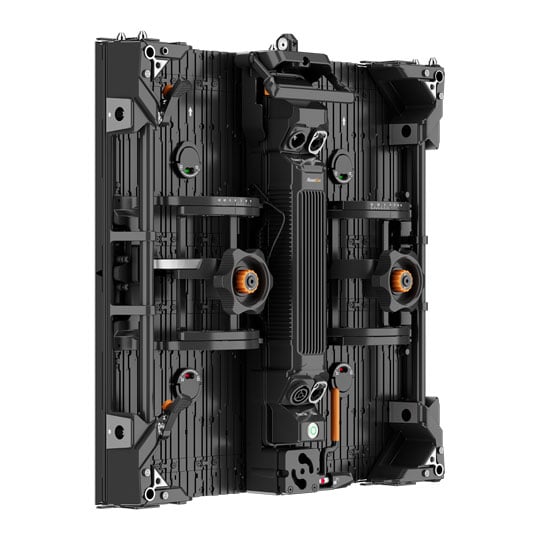

Rear-Serviceable Modules and Power BoxesThe SA-C series features rear-serviceable modules and power boxes. Its 500mm x 250mm (19.69″ x 9.84″) large-module design inherently minimizes seams while delivering smooth curvature transitions.

Specifications
Pixel Pitch 2.6 mm
Control System Brompton
Brightness 1500 nit
Refresh Rate 7680 Hz
Scan Ratio 1/12
Pixel Configuration Black SMD 3in1 1515
Pixel Matrix (Per Panel) 192x192
Greyscale 16 bit
Viewing Angle 160/160 (°H/°V)
Dimensions 500 x 500 x 100 mm
IP Rating (Front) IP40
IP Rating (Rear) IP21
Power Consumption (Max) 640 W/m²
Power Consumption (Avg.) 215 W/m²
Weight 5.5 kg
Material Die Casting Magnesium
Certification CE,ETL,ROHS,FCC,UKCA
