Absen PL Plus V2 Cube (1.9mm Pixel Pitch)
Absen PL Plus V2 Cube (1.9mm Pixel Pitch)
Scan code: LN167053 Manufacturer code: SABSPL19V2CB
Call for price

Absen PL Plus V2 Cube (1.9mm Pixel Pitch)

Absen PL Plus V2 Cube, 1.9mm Pixel Pitch, 1000nits, 7680Hz, IP40/IP21

Scan code: LN167053 Manufacturer code: SABSPL19V2CB
Call for price

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free

Suggested Alternatives

Absen PL Plus V2 Cube
1.9mm Pixel Pitch

Absen PL V2 Cube

Lightweight, Diversified, Platform-BasedThe Absen PL Plus V2 Cube is a high-performance, cube-shaped LED display solution designed for creative indoor rental and fixed installations, delivering stunning HDR visuals, high refresh rates up to 7680Hz, and smooth, flicker-free performance ideal for live events, stages, and experiential environments. Featuring a lightweight, platform-based cabinet design and advanced functions such as automatic edge protection, auto-lock and auto-eject systems, the PL Plus V2 Cube makes it easy for AV professionals and event companies to build eye-catching, three-dimensional LED video cubes with fast setup, reliable maintenance, and outstanding image quality.

Automatic Edge Protection

close up of the absen pl connection
two absen pl panels connected together

reduced pixel damageThe narrow-pixel-pitch products (PP≤2.5mm) of PL V2 series incorporate automatic edge protection on each panel corner, thereby reducing pixel damage drastically without laborious manual operations.

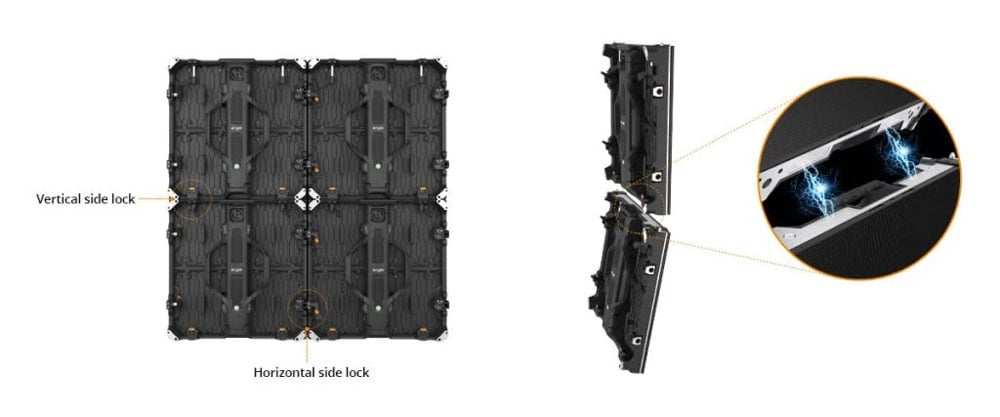

Auto-Lock and Auto-Eject System

absen pl panel locks

quick, accurate and easy assemblyThe magnet-assisted and vertically operated side locks of PL V2 series make assembly quick, accurate and easy, enabling one-man installation and saving labor costs. The auto-eject system allows the user to quickly disassemble the panels.

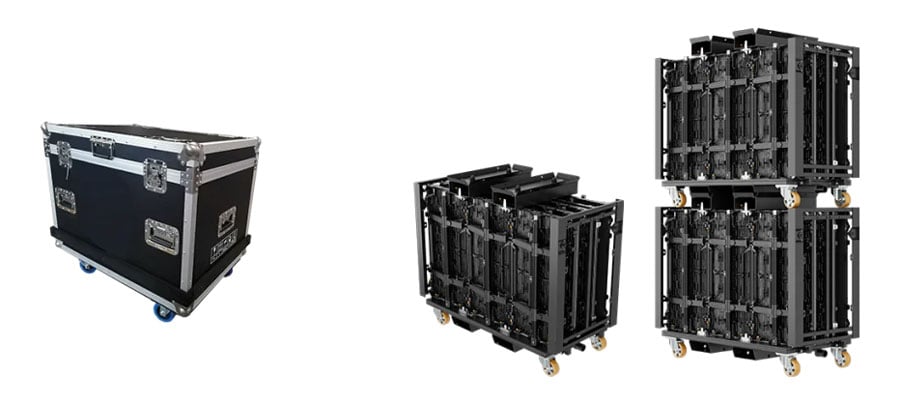

Easily Transported to Cope with Diverse Stages

absen pl panels inside travel cases

flight cases and dolly systemsFor conventional stage activities, it is recommended to transport panels in flight cases. For outdoor touring stages, it is recommended to choose the 15-in-1 dolly systems, which can transport panels and integrated wind bracing systems simultaneously.

Specifications
Pixel Pitch 1.953 mm
Control System
Brightness 1000 nit
Refresh Rate 7680 Hz
Scan Ratio 1/16
Pixel Configuration BlackSMD 3in1 1212
Pixel Matrix (Per Panel) 256 x 256
Greyscale 16 bit
Viewing Angle 140/140 (°H/°V)
Dimensions 500 x 500 x 78 mm
IP Rating (Front) IP40
IP Rating (Rear) IP21
Power Consumption (Max) 700 W/m²
Power Consumption (Avg.) 235 W/m²
Weight 7.8 kg
Material Die Casting Aluminium
Certification CE,FCC,ETL,RoHS
Additional Information
Scan Code LN167053
Model Number SABSPL19V2CB
GTIN 00
