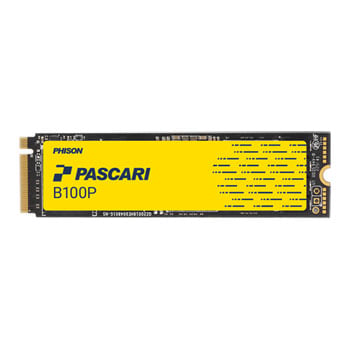

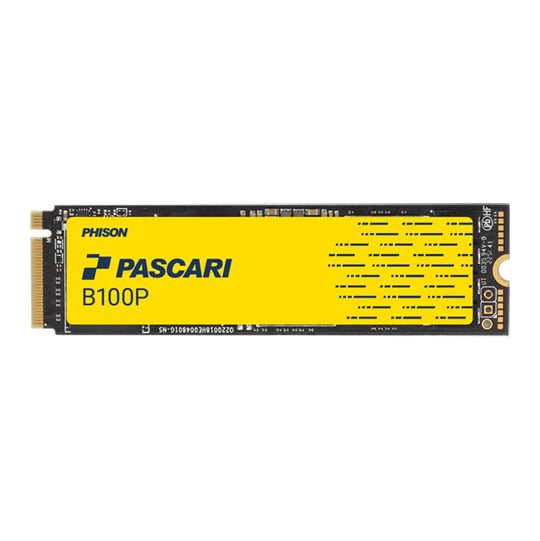

Phison Pascari 960GB B1802K00960GP011T0200D100P M.2 Enterprise NVMe SSD
960GB Phison Pascari B100P SSD, M.2, PCIe 4.0 (x4) NVMe, 5000MB/s Read, 700MB/s Write, 400k / 30k IOPS
Email me when the availability or price changes
Pascari B100P M.2 960GB PCI-Express 4.0 Non-SED FW Enterprise SSD
The Phison Pascari B100P M.2 960GB Enterprise SSD is a purpose-built boot drive for servers and workstations, combining PCIe 4.0 x4 performance with enterprise-grade reliability in a compact M.2 2280 form factor. With sequential read speeds of up to 5,000MB/s, sequential write speeds of up to 700MB/s and 4K random performance of up to 400K IOPS read and 30K IOPS write, the B100P provides responsive and consistent storage for operating systems, applications and background workloads in enterprise and professional computing environments.
Featuring 960GB of 3D TLC NAND, 1 DWPD endurance and a 5-year limited warranty, the B100P is designed for dependable operation in continuously running server and workstation platforms. Its single-port PCIe 4.0 x4 interface, NVMe 1.4 support and enterprise management capabilities make it a compact, efficient storage solution for boot-drive applications where reliability and consistent I/O performance are essential.
Responsive PCIe 4.0 Boot Performance
The B100P uses a PCIe 4.0 x4 interface to provide up to 5,000MB/s sequential read and 700MB/s sequential write performance. Its 4K random performance reaches up to 400K IOPS read and 30K IOPS write, helping maintain responsive system operation when handling operating system files, applications and background server workloads.
Compact Storage for Servers and Workstations
Built in the M.2 2280 form factor, the B100P provides enterprise storage in a compact footprint that is well suited to modern servers and workstations. The 960GB capacity provides substantial space for operating systems, applications and boot environments without occupying the larger drive bays required by conventional enterprise storage formats.
Consistent Enterprise Operation
The B100P is built around 3D TLC NAND and is rated for 1 drive write per day (DWPD), providing an endurance profile suited to enterprise boot-drive workloads. A quoted 2.0 million-hour MTBF, <1 sector per 10¹7 bits read UBER and a 5-year limited warranty further support its role in systems requiring dependable long-term operation.
Protection for Critical Boot Data
Enterprise-focused data protection features help safeguard information stored on the B100P. Power Loss Protection (PLP) helps protect data during unexpected power interruptions, while End-to-End Data Path Protection, SECDED error correction and Sanitize capabilities provide additional layers of data integrity and drive management.
Efficient Enterprise Management
The B100P supports NVMe 1.4, with NVMe-MI and SMBus providing management capabilities for compatible enterprise platforms. Support for up to 64 namespaces also gives administrators additional flexibility when configuring storage resources within suitable server environments.
Non-SED Firmware with AES-XTS 256-bit Encryption
This specific 960GB model uses Non-SED firmware, providing the standard B100P enterprise storage feature set without the Self-Encrypting Drive functionality of the SED firmware variant. The B100P Non-SED model supports AES-XTS 256-bit encryption, providing hardware-based data encryption for suitable enterprise and workstation deployments.
Compatibility
The Pascari B100P is designed for servers and workstations equipped with an M.2 2280 slot supporting PCIe 4.0 x4 NVMe storage. Its single-port interface and NVMe 1.4 specification make it suited to enterprise boot-drive applications where a compact M.2 storage device is required. The drive operates between 0°C and 70°C, with a non-operating temperature range of -40°C to 85°C.
• 960GB capacity.
• M.2 2280 form factor.
• PCIe 4.0 x4 single-port interface.
• NVMe 1.4.
• Up to 5,000MB/s sequential read.
• Up to 700MB/s sequential write.
• Up to 400K 4K random read IOPS.
• Up to 30K 4K random write IOPS.
• 3D TLC NAND.
• 1 DWPD endurance.
• Non-SED firmware.
• Power Loss Protection.
• AES-XTS 256-bit encryption.
• Up to 64 namespaces.
• NVMe-MI and SMBus support.
• 5-year limited warranty.
