Scan code: LN116960 Manufacturer code: DSS-100E-9P

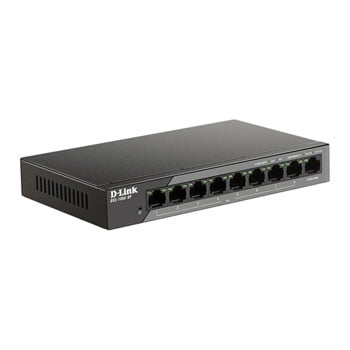

D-Link 9-Port 10/100 PoE Unmanaged Surveillance Switch

9 Port D-Link DSS-100E-9P 10/100 Unmanaged Switch, 8 PoE Ports, 1x GbE, PoE budget of 92W, 30W Per Port,Silent Operation

Thumbnail 1 : D-Link 9-Port 10/100 PoE Unmanaged Surveillance Switch Thumbnail 2 : D-Link 9-Port 10/100 PoE Unmanaged Surveillance Switch Thumbnail 3 : D-Link 9-Port 10/100 PoE Unmanaged Surveillance Switch
Scan code: LN116960 Manufacturer code: DSS-100E-9P
£64.99Item currently awaiting an ETA
Pre order
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

9-Port 10/100 PoE Unmanaged Surveillance Switch

The DSS-100E-9P is part of D-Link’s premier Power over Ethernet (PoE) Surveillance Switch series. They are the safest, most reliable and all-round best solutions for surveillance deployments.


Designed for Surveillance

The DSS-100E-9P comes with powerful PoE capabilities. Able to supply up to 30W per port with a total power budget of 92W to devices up to 250m away, it can be the heart of your surveillance setup. Simply connect your PoE supported devices and you’ve got a capable surveillance network with minimal wiring required. Finally, its Gigabit uplink provides ample bandwidth. This ensures smooth transmission of footage when connecting to a Network Video Recorder (NVR) or core switch.


Reach Further

The DSS-100E-9P surveillance switch can be combined with the DPE-302GE PoE extender to maximize your PoE camera deployment virtually anywhere, drastically lowering the cost for installing any PoE Ethernet devices. It provides huge time and cost savings and greater flexibility of endpoint positioning.

• Power your device up to a distance of 650 meters at 10Mbps
• Innovative design reduces long distance power transmission loss
• Leverages existing copper twisted-pair cabling to deliver electrical power over the same network connection


Versatility for a Range of Scenarios

The DSS-100E-9P is designed for a surveillance scenario, therefore it is ready to support all related devices. Simply plug in the devices you need to complete your setup and the switch can automatically detect what has been connected. It then adjusts according to provide optimal performance. Ideal for a power surveillance with minimal management fuss.


Weather the Storm

The DSS-100E-9P is equipped with 6kV surge protection. This keeps the switch safe against lightning strikes or other power related incidents. This shield will prevent PoE devices from damage, ensuring your vital surveillance systems continue functioning uninterrupted.


Plug & Play

The DSS-100E-9P is developed with simple setup in mind. No configuration is required, simply connect the switch to your network and you are ready to go. You can start adding IP cameras, IP phones and other PoE capable devices to your network. Meanwhile, the switch will automatically detect what has been connected and intelligently adjust according to compatibility and optimal performance. It is ideal for those who want a powerful network, without the fuss of managing it.


Compatible with a Wide Range of D-Link PoE-Enabled Cameras

Security is imperative for SMBs and large corporations alike. Run a video surveillance camera system in your business with our surveillance switches and connect multiple PoE enabled cameras wherever you wish.

Features


• Supports power delivery to devices up to 250m away
• 8 x 10/100 Mbps PoE Ethernet ports
• 92W power budget, with up to 30W per port
• 1 x Gigabit Ethernet port allows ample bandwidth for uplink connections
• Equipped with 6kV surge protection to prevent damage from lightning and power surges
• With plug & play, your network is ready to go immediately
• Auto detection of long range connected devices

Specifications
Edition Unmanaged Switch
Form Factor Desktop
Total Network Ports
  • 8 x 10/100 (Fast Ethernet) RJ-45
  • 1 x 10/100/1000 (Gigabit) RJ-45
PoE Support Type PoE
No. of Ports Providing PoE 8 x 10/100 (Fast Ethernet) RJ-45
Other Non-Network Ports 1 x 1000Base-T - RJ-45
Switching Capacity 1.8 Gbps
Non-Blocking Throughput
Forwarding Rate 1.49 Mpps
MAC Address Table Size 2k Entries
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.1ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Acoustic Noise Fanless dB
Max. Power Consumption 102 W
Max. PoE Wattage per Port Upto 30W W
Mean Time Between Failures (MTBF) 52,308 hours
Power Supply Internal AC Power Supply
Material
Includes
Dimensions (WxHxD) 177 x 26 x 104 mm
Weight 0.396 kg
Additional Information
Scan Code LN116960
Model Number DSS-100E-9P
GTIN 790069451089
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
1 days
