Scan code: LN109298 Manufacturer code: GP-ASACNE6800TTTDA

Gigabyte AORUS 8TB PCIe 4.0 AIC NVMe SSD/Solid State Drive

8TB Gigabyte AORUS AIC SSD, NVMe PCIe 4.0 (x16), NVMe 1.3, Toshiba BiCS4 3D TLC NAND, 15000MB/s Read, 15000MB/s Write

Thumbnail 1 : Gigabyte AORUS 8TB PCIe 4.0 AIC NVMe SSD/Solid State Drive Thumbnail 2 : Gigabyte AORUS 8TB PCIe 4.0 AIC NVMe SSD/Solid State Drive Thumbnail 3 : Gigabyte AORUS 8TB PCIe 4.0 AIC NVMe SSD/Solid State Drive Thumbnail 4 : Gigabyte AORUS 8TB PCIe 4.0 AIC NVMe SSD/Solid State Drive
Scan code: LN109298 Manufacturer code: GP-ASACNE6800TTTDA
£1,559.99Item due on 14 November 2020
Due 14th Nov
From £42.61 / month (APR 14.9%)
Monthly Payment: £140.05
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,559.99
Total inc. interest: £1,680.53
Monthly Payment: £74.88
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,559.99
Total inc. interest: £1,797.03
Monthly Payment: £53.30
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,559.99
Total inc. interest: £1,918.53
Monthly Payment: £42.61
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,559.99
Total inc. interest: £2,044.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Product Overview

XTREME Storage Performance

With the world's first Gen4 controller and selected memory, AORUS Gen4 AIC 8TB SSD delivers blazing speeds: up to 15,000MB/s* for sequential read, and up to 15,000MB/s * for sequential write. The storage performance of AORUS Gen4 AIC 8TB SSDs is up to 3x faster than regular Gen4 SSDs in RAID. Furthermore, the advanced thermal design keeps the controller and memory at low temperatures, ensuring that Gen4 SSD performance won’t be compromised. Always keep performance at the highest levels. Get ready to enter the next generation of computing and enjoy faster and smoother graphics-intensive rendering and game streaming.

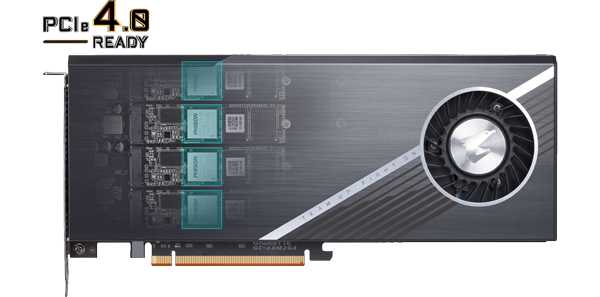

World First PCIe 4.0 x4 Controller

The World's First PCIe 4.0x4 Controller, PHISON PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0x4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, Wear Levelling, and Over-Provision technologies to improve reliability and durability of SSDs.


TOSHIBA BiCS4 96 Layers 3D TLC (800MT/s)

Toshiba BiCS4 NAND Flash optimizes circuitry and architecture by increasing to 96 layers for higher storage space per unit area. 800MT/s throughput on the AORUS NVMe Gen 4 SSD far exceeds that of PCIe 3.0x4 devices for superior storage performance.


Advanced Thermal Solution for Gen4 SSD

The thermal design is exclusively for high end Gen4 SSDs with its smart active and passive cooling. It prevents SSDs from thermal throttling and ensures stable operating. The working temperature is 30%* lower with the armour, copper heatsink and reactive fan.


Conducted Airflow and Pure Copper Heatsink

A large all copper heatsink touches the SSD’s hottest controller and transfers heat to the multi-cut copper heatsink. The blower fan helps to draw heat away more quickly, preventing thermal throttling on the SSD to maintain amazing speeds at all times.


Temperature Sensor and Fan Profile

Built in with 8 temperature sensors to real time monitor AORUS Gen4 AIC 8TB SSD working temperature. In AORUS Storage Manager, it provides 3 fan operating modes for user to choose base on hardware configuration and workload. In the meantime, minimize fan noise and extend the fan's longevity. Silent, the quiet one, Balanced and full speed Performance modes.


AORUS Storage Manager

AORUS Storage Manager is a dedicated software to detect and monitor multiple SSD status such as how many SSD is detected, enable Software RAID 0 with a single click and select different fan mode base on different hardware configurations.


SSD Tool Box

The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.

Features
Form Factor: PCI Express Card.
Interface: PCI-Express 4.0 x16, NVMe 1.3.
Total Capacity: 8,000GB.
Seq. Read Speed: up to 15,000 MB/s.
Seq. Write Speed: up to 15,000 MB/s.
Wear Levelling, Over-Provision Technologies.
TRIM & S.M.A.R.T Supported.
Advanced Thermal Solution with Copper Heatsink.
Specifications
Capacity 8TB
Edition AORUS Gen4 AIC
Form Factor PCIe Add In Card (M2)
Height
Interface PCIe 4.0 (x16)
Host Controller Interface NVMe 1.3
Controller
Flash Memory Type Toshiba BiCS4 3D NAND TLC Flash
Max. Read 15,000 MB/s
Max. Write 15,000 MB/s
DRAM Cache Memory 8GB
DRAM Cache Memory Type
Max. Random Read 4K
Max. Random Write 4K
Latency N/A
Special Features
  • Over-Provision
  • S.M.A.R.T Support
  • Wear Leveling
Power Consumption (active) 33.5W (Read), 35.3W (Write)
Max. Endurance Rating 3600TBW
MTBF 1,770,000 Hours
Max. Operating Vibration
Max. Non-operating Vibration
Max. Operating Shock
Max. Non-operating Shock
Connectivity 1 x PCIe 4.0 (x16)
OS Support
Bracket N/A
Dimensions
Weight
Package Type Retail
Additional Information
Scan Code LN109298
Model Number GP-ASACNE6800TTTDA
GTIN 4719331807603
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Gigabyte Uk
