XFX RADEON RX480 DD GTR XXX LED AMD Graphics Card 8GB with Hard Swap Detachable Fans

8GB XFX RX480 GTR XXX LED, with HardSwap fans, 14nm, PCIe 3.0, 8000MHz GDDR5, 1288MHz GPU, 2304 Streams

XFX
Scan code: LN74130 Manufacturer code: RX-480P8DFA6 Request call
£249.49
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £11.50 By DPD On 5th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together

AMD XFX GTR BLACK EDITION - Radeon RX 480 GPU

XFX GTR BLACK EDITION RX 480 Graphics Card

This graphics card is XFX's more advanced Radeon RX 480, when compared to their single fan RX 480. It's design boasts dual hard swap fans for easy cleaning and upgrading and a unibody heatsink, among other clever technologies. Industry leading innovation and powerful GPU performance enables the Radeon RX 480 to deliever premium experiences on high-end VR games, entertainment and applications. FinFET 14 technology empowers this 480 graphics card to operate at an intelligent level and with true efficiency.

2304
Streams

8GB
GDDR5

1288MHz
Core Clock

HARD SWAP RX 480 FAN DESIGN

XFX Exclusive GPU Design

XFX's Patent Pending Hard Swap Fan Technology is an exclusive technology you'll only find on XFX graphics cards. This special technology allows you to take fans off instantly, making it easy to interchange with new fans of different colours or replace broken fans in an instant.

Dedicated GPU Fan Controller Board

XFX's exclusive fan PCM circuit board is designed to make hard swap technology possible for the first time ever with GPU fans. It's also separated from the primary GPU board as an extra level of surge protection in the case of faults.

*Image for representation of technology only, model may vary

480 UNIBODY HEATSINK

Enhancing the RX 480 Thermal Efficiency

The XFX RX 480 RS series features an all new Unibody VRM Heatsink construction enable direct transfer to the primary heatsink and heatpipes. This unique combination of material and construction, embedded into this RX 480, enhances thermal efficiency by a total of 40%.

*Image for representation of technology only, model may vary

ZERO dB FAN SYSTEM

Smart Silent Card Cooling

Intelligent Adaptive Fan Control is XFX's special fan control technology that automatically stops fans under low loads and then ramps up when needed to match the designated performance needs. So you can enjoy silence when watching movies but get the cooling you need when enjoying high perfromance games.

ENHANCED 480 VRM & MEMORY COOLING

XFX 480 Cooling Goes Further

After countless hours of research, development, and testing the engineers at XFX have developed an all new VRM and Memory cooling technology, reducing temperatures VRM by up to 30' C and GDDR temperatures by 20' C. This is all done while reducing dB noise by an additional 5%, and it’s all embedded into this Radeon RX 480 graphics card.

*Image for representation of technology only, model may vary

XFX RS BACKPLATE

Aluminium Graphics Card Backplate

GPUs are one of the most important, complex and delicate peices of hardware in your computer and as a game, nothing is as important and the slightest bend can drastically affect the performance of your graphics card. But that's a thing of the past because XFX's solid backplate keeps the card strong and secure, eliminating card bend. Graphics cards also emit some heat from the back as well which rises up and affects other components but our cool aluminum backplate can absorb that heat and keep the overall case cooler.

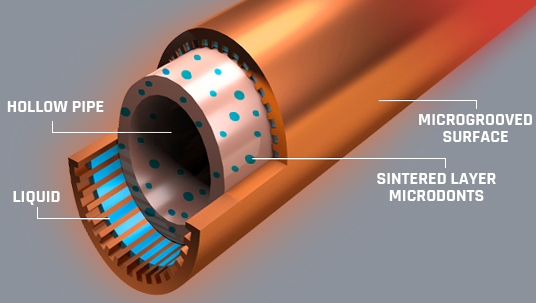

XFX 480 GPU COOLING

Composite Heatpipe Technology

Our competition uses only standard 6mm heatpipes while XFX uses thick 8mm heatpipes. While it seem like only 1.32x bigger it is infact 1.78x bigger in capacity. You would need almost twice as many 6mm heatpipes to transfer as much heat as our XFX 8mm design so don’t be fooled by the competition.

TRUE CLOCK XFX 480 TECH

The Best Radeon RX 480 Speeds

The competition might claim overclocking but it's simply software boosting, we don;'t do that, we give you 100% factory overclocking at the hardware level. This means our cards are designed and tested to maximize it's overclocking professional so our advertised overclocking is true and capable of constantly achieving the highest clock rate possible.

AMD EYEFINITY GPU TECH

Multidisplay | Productivity, Gaming, Entertainment

Expand your territory and customize your field of vision. Connect up to six displays on a single GPU for dynamic, panoramic multi-screen gaming. You’ll get an expansive experience that’s truly out of sight. (additional displays may require the use of MST hub).

SMOOTH GPU GAMING GRAPHICS

RADEON 460 FREESYNC TECHNOLOGY

Gaming shouldn’t be a choice between choppy gameplay and high performance. With XFX Radeon RX 460 Series graphics and FreeSync technology, it doesn’t have to be. Transform the most demanding games into a liquid-smooth, artifact-free, 4K cinematic experience with the highest performance at virtually any frame rate. FreeSync works at the speed of your game for incredible responsiveness and uncompromising smoothness. Every gamer deserves perfectly smooth gameplay and peak performance.

VULKAN CROSS PLATFORM

Next-Gen Graphics API

Vulkan is the new generation, open standard API for high-efficiency access to graphics and compute on modern GPUs. This ground-up design, previously referred to as the Next Generation OpenGL Initiative, provides applications direct control over GPU acceleration for maximized performance and predictability.

WINDOWS 10 + DIRECTX 12

Optimized for Gaming Performance

New features and functions bring new computing experiences to life with AMD Radeon graphics on the Windows 10 platform. Take your gaming further with XBOX ONE on Windows. Play and connect with your games and friends. Everywhere.

Microsoft’s new technology enables great performance and dramatically improved GPU and CPU multiprocessing and multithreading performance thanks to Async Shaders and Multi-threaded Command Buffer Recording for more efficient rendering of richer and more complex scenes.

AMD EXCLUSIVE GCN + CROSSFIRE

Architecture with Multipule GPU Scalinge

Discover the direct-to-theGPU performance advantage of Graphics Core Next (GCN) architecture, enabling stunning detail and dynamic gaming, a richer and more immersive VR experience, with exceptional graphics performance and low power consumption. 4th generation Graphics Core Next (GCN) architecture features asynchronous shaders and an enhanced geometry engine, so you can enjoy exceptionally smooth gameplay on the latest DirectX 12 and Vulkan titles.

AMD CrossFire technology lets you connect multiple graphics cards to amplify your system’s graphics processing capability including enhancements that set a new standard of consistent and smooth gameplay.

FINFET 14NM TECHNOLOGY

Unprecedented Efficiency on Nextgen GPUs

Enjoy whisper quiet gaming with the revolutionary Polaris architecture. Combining the latest FinFET 14 process technology and AMD’s advanced power, gating and clocking technologies, you’ll enjoy dramatically cool and quiet gaming. The FinFet 14 process technology puts more transistors in less space, enabling dramatic increases in processing power and power efficiency helping to provide better processor performance while using less power and enabling better transistor efficiency than previous generation tech.

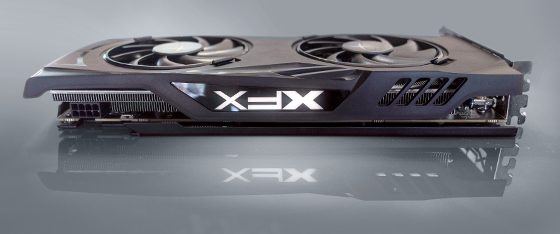

XFX GPU LED LOGO

Graphics Card with Style

Our bright XFX LED not only looks great and shows off your awesome rig, it also lets others know that this isn't some average off the shelf scrub computer, this is a hard core gaming computer powered by the best graphics card on the market. You play like a pro and your system looks just as professional.

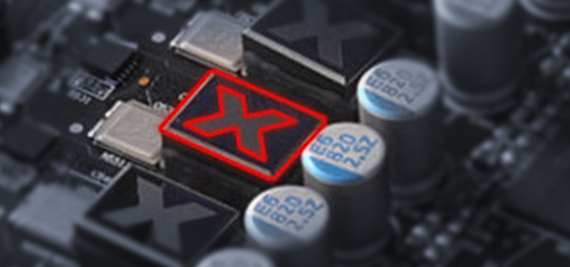

ULTRA LOW GPU XL INDUCTORS

Exclusive Graphicss Card Inductor Tech

GPU inductors are notoriously noisy with that tiny buzzing noise caused by traditional low quality inductors but XFX's exclusive premium quality XL Inductors utilize multiple layers to seal the Inductors completely and securely nearly eliminating inductor noise.

AMD RADEON CONNECTIONS

3 x DisplayPort 1.4 | 1 x DVI-D DL | 1 x HDMI 2.0b

AMD Radeon VR READY - PREMIUM

Escape into lifelike realms of ultra-immersive virtual reality experiences with Radeon™ VR Ready Premium solutions powered by powerful AMD Radeon™ graphics.​

Delivering immense visual power and unmatched technological innovation, AMD's VR Ready Premium solutions set the bar for enabling premium experie​nces on high-end VR games, entertainment, and applications.

Specifications
Specifications
Chipset Radeon RX 480
Edition GTR Triple XXX Edition with Hard swap fans
Manufacturing Process 14 nm
Microarchitecture Polaris - Ellesmere XT
Streams 2304
Core Clock 1288 MHz
Boost Clock
Memory Size 8GB
Memory Type GDDR5
Memory Clock 2000 MHz
Memory Speed (Effective with DDR) 8000 MHz
Memory Data Rate
Memory Bus 256 Bit
Memory Bandwidth 256 GB/s
Cooling Solution Dual Fan (2)
Cooler Design
Fitted/Included Backplate Yes
Interface PCIe 3.0 (x16)
Connectivity
  • 3 x DisplayPort 1.4
  • 1 x DVI-D DL
  • 1 x HDMI 2.0b
Maximum Digital Resolution 3840x2160 (Ultra HD)
Maximum Analog (VGA) Resolution
Max. Concurrent Displays 4 Displays
AMD CrossFire Support 2 Way CrossFireX
AMD Freesync Support Yes
Microsoft DirectX Support 12 API
Width Dual Slot
Low Profile Support
Graphics Card TDP/Power 150 W
Graphics Card Power Connectors 1 x 8-pin PCIe
Minimum Recommended PSU 500 W
Maximum GPU Temperature
Dimensions 280 x 124 x 40 mm
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
