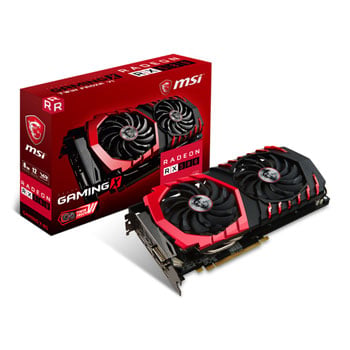

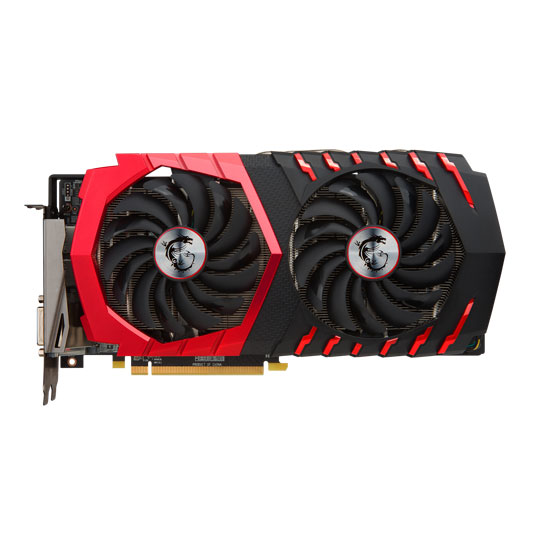

MSI AMD Radeon RX 580 8GB GAMING X Graphics Card
Gaming Graphics Card from MSI. 8GB GAMING X
MSI GAMING X GPU, Guiding the future of gaming
The GAMING X graphics card built on AMD technology and enhanced by MSI produces game dominating performance. This VR ready GPU utilises FreeSync for smooth gaming and is HDR compatible, pushing your gaming experience to immaculate levels. Boasting TWIN FROZR VI cooling and RGB LED’ s for personalising or monitoring your GPU statistics the GAMING X graphics card is an RX 580 worthy of your gaming PC. Plus, there are various types of protection installed such as an attractive backplate and high quality Military Class 4 components.
TWIN FROZR VI Cooling
Advanced GPU Cooling Technologies
The GAMING X from MSI has various aspects to help keep this gaming GPU as cool as possible. Every detail of this intricate heat-sink plays an essential part in providing a cool and quiet gaming experience.
This RX 580 utilizes advanced aerodynamics, Airflow Control Technology directs more air directly onto the TWIN FROZR VI heat pipes. The special deflectors on the heat sink enlarge the surface area, creating lower temperatures and better gaming.
Smooth Heat Pipes
Embedded within the GAMING X 580 GPU are copper heat-pipes running through the cards fins. These 8mm thick pipes have been made with a smooth square shape, this will maximize heat transfer from the surface of the copper base plate.
To temper the heat generated by a powerful GPU, MSI GAMING series graphics cards use a solid nickel-plated copper base plate. The base plate catches the heat from the GPU and transfers it to the heat pipes for dissipation - further increasing the cooling.
GPU Fan Design
Dispersion Fan Blade
Steeper curved blade, accelerates airflow, increasing effectiveness
Traditional Fan Blade
Pushes down a steady airflow to the massive heatsink below.
Dual TORX Fan Power
Just like in games, the exclusive MSI TORX 2.0 Fan technology uses the power of teamwork to allow the TWIN FROZR VI to achieve new levels of cool. TORX 2.0 Fan design generates 22% more air pressure for supremely silent performance in the heat of battle.
ZERO FROZR RX 580
During intense gaming or benchmarking
Completely silent during idle, multimedia or light gaming
Intelligent Fan Power Cooling
First introduced in 2008 by MSI, ZeroFrozr technology has made its mark and is now the industry standard among graphics cards. It eliminates fan noise by stopping the fans in low-load situations. This means you can focus on gaming without the noise of spinning fans.
*Image for display purpose only
MSI Military Class 4 Components
Below the heatsink you find the close quarters cooling which enables you to push the MSI GAMING card to the max. A tailored PCB design higher performance and extra cooling comes with an extra 8-pin connector to allow for overclocking beyond the limits. A 8-Phase PWM design with High Quality Military Class components ensures extreme reliability and superb overclockablity and enhanced efficiency.
MSI Gaming App
The best environment for minimal fan noise
Balance between in-game performance and silence
Max performance from higher clock speeds and fan performance
Control your GAMING X 580
The MSI Gaming App allows for one-click performance profiles that unlock extra performance for gaming or keep your card silent during light use. It also features the EyeRest tab, giving you easy access to image quality improving technology. The LED control tab gives you full control over your MSI GAMING LED lights to set the mood.
GAMING X Mobile Control
Customize RX 580 card From Your Mobile
The exclusive MSI Gaming App is now also available for Android so you can control your graphics card from your phone without having to switch to Windows.
Complete Control over your GAMING X
MSI Afterburner is the world’s most recognized and widely used graphics card overclocking utility which gives you full control of your graphics cards. It also provides an incredibly detailed overview of your hardware and comes with some additional features such as customizing fan profiles, benchmarking and video recording.
|Chipset||Radeon RX 580|
|Manufacturing Process||14 nm|
|Boost Clock||1380 (1393 in OC Mode) MHz|
|Memory Speed (Effective with DDR)||8000 MHz|
|Memory Data Rate||8.0 Gb/s|
|Memory Bus||256 Bit|
|Cooling Solution||Dual Fan (2)|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|AMD CrossFire Support||2-Way CrossFire|
|AMD Freesync Support||Yes|
|AMD FreeSync Version||FreeSync™ 2|
|Microsoft DirectX Support||12 API|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||1 x 8-pin PCIe|
|Minimum Recommended PSU||500 W|
|Maximum GPU Temperature|
