MSI GAMING X Radeon RX470 8GB AMD Graphics Card

8GB MSI Radeon RX 470 GAMING X 8G, 14nm Polaris, PCIe 3.0, 6600MHz GDDR5, 1242MHz Boost, 2048 Streams, DP/HDMI/DVI-D DL

MSI
Scan code: LN74209 Manufacturer code: RX 470 GAMING X 8G Request call
£217.99
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
Mid Range
Delivery options £11.50 By DPD On 8th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More

AMD MSI GAMING-X - Radeon RX 470 GPU

MSI GAMING X Radeon RX 470

As one of MSI’s top-end Radeon RX 470 graphics card, this GAMING X series comes equipped with a customized design and powerful RX 470 specifications. This card specifically targets itself toward gamers who play the latest MOBA’s to the most popular AAA games. It runs off Polaris architecture and comes ready to create the next levels of immersion within the world of VR, plus it boasts higher speeds and 8GB of memory, doubling that of lesser RX 470 versions.

2048
Streams

8GB
GDDR5

1242MHz
Boost Clock

1254MHz
Boost OC Mode

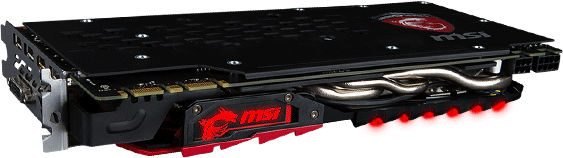

STYLISH MSI RX 470 LED

LED Embedded MSI 470 GPU

Through the MSI Gaming App each LED on the RX 470 GAMING can be controlled individually and customized using the various animation effects. These animations range from responding to game or music sounds to a breathing effect - of course they can always be turned off.

*Display image is for LED reference only.

GAMING-X 470 COOLING SYSTEM

Advanced GPU Cooling Technologies

The GAMING X 470 from MSI has various aspects to help keep this gaming GPU as cool as possible. Every detail of this intricate heat-sink plays an essential part in providing a cool and quiet gaming experience.

Airflow Control

This RX 470 utilizes advanced aerodynamics, Airflow Control Technology directs more air directly onto the TWIN FROZR VI heat pipes. The special deflectors on the heat sink enlarge the surface area, creating lower temperatures and better gaming.

Smooth Heat Pipes

Embedded within the GAMING X RX 470 GPU are copper heat-pipes running through the cards fins. These pipes have been made with a smooth square shape to maximize heat transfer from the surface of the copper base plate.

Solid Base-Plate

To temper the heat generated by a powerful GPU, MSI's GAMING X series graphics cards use a solid nickel-plated copper base plate. The base plate catches the heat from the GPU and transfers it to the heat pipes for dissipation - further increasing the cooling.

*Image for display example only.

TORX FAN RX480 DESIGN

Dispersion Fan Blade Steeper curved blade, accelerates airflow, increasing effectiveness

Traditional Fan Blade Steeper curved blade, accelerates airflow, increasing effectiveness

Dual TORX Fan GPU Power

TORX fan technology built into the GAMING X RX 470 works in teamwork with TWIN FROZR VI to achieve new levels of cooling. The fans design generates 22% more air pressure for supremely silent performance when gaming. The fans also feature double ball-bearings for a strong and lasting core for years of smooth gaming - also helps with noise elimination.

ZERO FROZR GAMING-X 470 TECH

Fans Spinning
During intense gaming or benchmarking

Fans Stop
Completely silent during idle, multimedia or light gaming

Clever Cooling with MSI RX 470

MSI released this technology in 2008 and it has since become an industry standard among graphics cards, including this Radeon RX 470. FROZR will eliminate fan noise by stopping the fans in low-load situations, meaning you can stay focused on your gaming, streaming or other media without the noise of spinning fans.

MSI GRAPHICS CARD GAMING APP

SILENT MODE
The best environment for minimal fan noise

GAMING MODE
Balance between in-game performance and silence

OC MODE
Max performance from higher clock speeds and fan performance

Control your GAMING-X 470

This app from MSI allows you to access single click performance profiles that can unlock extra potential for gaming, or keep your RX 470 card silent during light sessions. It also features the EyeRest tab, giving you easy access to image quality improving technology. The LED control tab gives you full control over your MSI 470 GAMING X LED's to set the mood.

MSI GAMING-X AFTERBURNER

Control your RX480 GAMING-X

This technology belongs to MSI but is recognized throughout the world of graphics cards overclocking. It displays hardware performance and grants you complete control over your Radeon RX 470 GPU. Plus it grants the ability to customize fan profiles, record videos / games and is great for benchmarking.

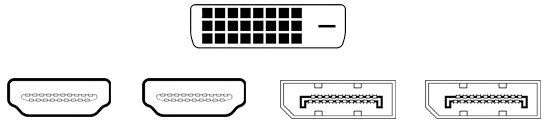

MSI RADEON RX470 CONNECTIONS

2 x DisplayPort 1.4 | 1 x DVI-D D | 2 x HDMI 2.0b

Specifications
Specifications
Chipset Radeon RX 470
Edition GAMING X 8G
Manufacturing Process 14 nm
Microarchitecture Polaris
Streams 2048
Core Clock
Boost Clock 1242 (1254MHz in OC Mode) MHz
Memory Size 8GB
Memory Type GDDR5
Memory Clock
Memory Speed (Effective with DDR) 6600 (6700MHz in OC Mode) MHz
Memory Data Rate
Memory Bus 256 Bit
Memory Bandwidth
Cooling Solution Dual Fan (2)
Cooler Design Twin Frozr VI
Fitted/Included Backplate No
Interface PCIe 3.0 (x16)
Connectivity
  • 2 x DisplayPort 1.4
  • 1 x DVI-D DL
  • 2 x HDMI 2.0b
Maximum Digital Resolution 3840x2160 (Ultra HD)
Maximum Analog (VGA) Resolution N/A
Max. Concurrent Displays 4 Displays
AMD CrossFire Support 2 Way CrossFireX
AMD Freesync Support Yes
Microsoft DirectX Support 12 API
Width Dual Slot
Low Profile Support N/A
Graphics Card TDP/Power 110 W
Graphics Card Power Connectors 1 x 8-pin PCIe
Minimum Recommended PSU 450 W
Maximum GPU Temperature
Dimensions 140 x 37 x 276 mm
Package Type Retail
