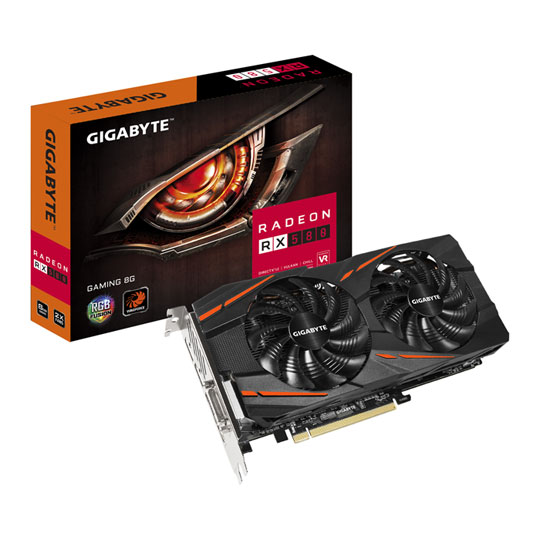

Gigabyte AMD Radeon RX 580 8GB GAMING Graphics Card
Radeon Graphics Card. GIGABYTE RX 580 GAMING
AMD and GIGABYTE powered gpu built for gaming
This GIGABYTE Radeon 580 boasts an 8GB memory, doubling that of the earlier model. This RX 580 graphics card is cooled by GIGABYTE’s WindForce cooling system which is filled with the latest cooling technologies, keeping your Radeon GPU cool during intense sessions. You can also personalise your gaming RX 580 card with RGB Fusion. Experience next-gen high performance gaming and total hardware control through elegant Radeon or GIGABYTE software interface with the RX 580 GAMING.
LED Lighting with Fusion
16.8M Customizable Color Lighting
With 16.8M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through AORUS graphics Engine.
WINDFORCE 2X GPU Cooling
Complete Advanced Cooling System
The WINDFORCE 2X cooling system features 3 pure copper composite heat-pipes, heat-pipe direct touch GPU, 90mm unique blade fan design, 3D active fan with LED indicators, stylish metal back plate, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
GIGABYTE Thermal Conductivity
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
Smart GPU Fans
90mm Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.

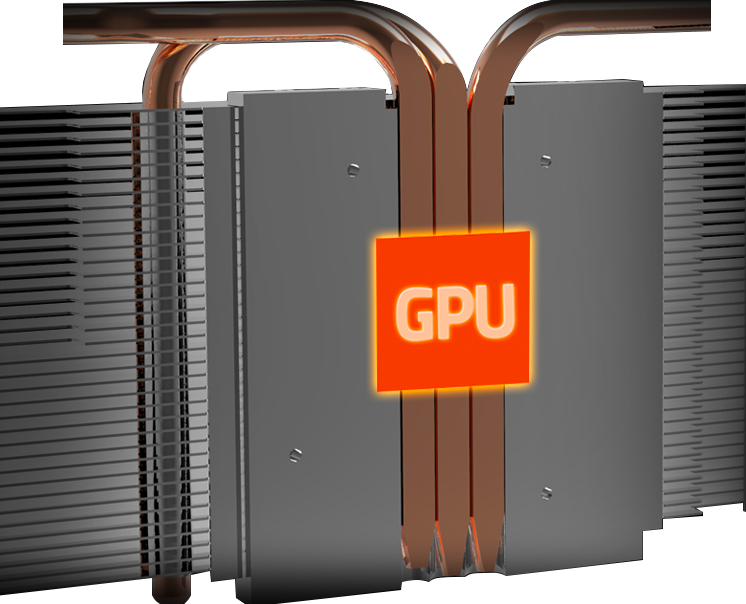

GAMING GPU Heat Transfer
3 Heat-Pipes Direct Touch
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.
VGA - Built for OverClocking
High-Grade Ultra-Durable Materials
Compared to reference design(6+1), the 6+2 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output.
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
GIGABYTE RX 580 Protection
STYLISH METAL BACK PLATE
The metal back plate offers rigidity and protection to the structure, while adding a sleek, clean look to the product.

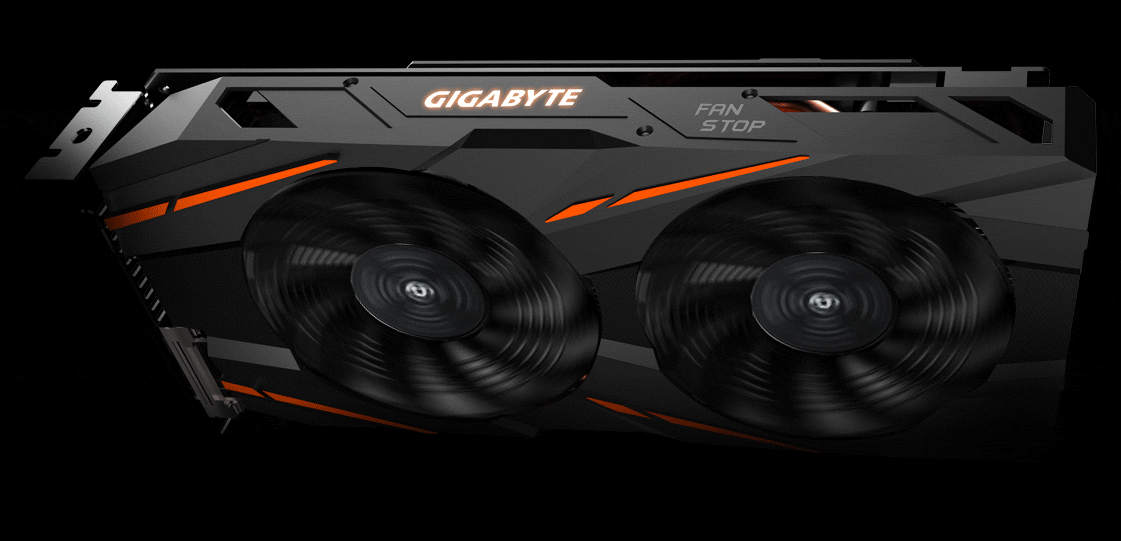

Intelligent Fan Activity
GIGABYTE 3D Active Fan with LED Indicators
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. The LED fan indicator on the top of the graphics card provides an instant display of the fan status.
Complete Control over your GAMING X
Be alert when PCI-E voltage is unstable with the smart power LED indicator.
- LED ON: power cable disconnected
- LED OFF : stable power supply
- Blinking LED: abnormal power supple
AORUS Graphics Engine
One-click Overclocking and much more!
The cutting edge intuitive interface allows you to tune the clock speeds, voltage, fan performance, and power target in real-time according to your own gaming requirement.
With a simple click on AORUS Graphics engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.
|Chipset||Radeon RX 580|
|Manufacturing Process||14 nm|
|Core Clock||1340 (1355 in OC Mode) MHz|
|Memory Speed (Effective with DDR)||8000 MHz|
|Memory Data Rate|
|Memory Bus||256 Bit|
|Peak Half Precision Compute Performance|
|Peak Single Precision Compute Performance|
|Cooling Solution||Dual Fan (2)|
|Cooler Design||WINDFORCE 2X|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||3840x2160 (Ultra HD)|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|AMD CrossFire Support||2-Way CrossFire|
|AMD Freesync Support||Yes|
|AMD FreeSync Version||FreeSync™ 2|
|Microsoft DirectX Support||12 API|
|Low Profile Support||N/A|
|Graphics Card TDP/Power||135 W|
|Graphics Card Power Connectors||1 x 8-pin PCIe|
|Minimum Recommended PSU||500 W|
|Maximum GPU Temperature|
|Dimensions||116 x 40 x 232 mm|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 36 months
- Return to base
- DOA Period:
- 28 days
- RTB Period:
- 36 months
- 0871 472 4747
Date Issued: 19th Apr 2017
It has been a busy start to 2017 for chip giant AMD. Having shaken-up the CPU landscape with the launch of its Ryzen 7 and Ryzen 5 processors, the company is now turning its attention to graphics by refreshing its range of Radeon GPUs.
