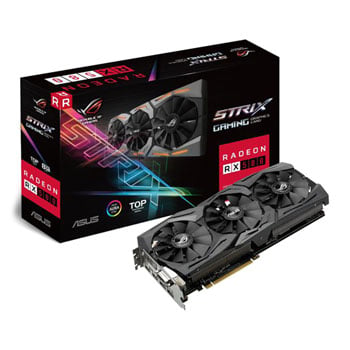

ASUS AMD Radeon RX 580 8GB ROG STRIX TOP Graphics Card
8GB ASUS Radeon RX 580 ROG STRIX GAMING TOP Edition, 14nm Polaris, 2304 Streams, 1411MHz Boost, 8000MHz GDDR5, DP/HDMI
Top Gaming GPU from ASUS. Radeon RX 580 STRIX
ASUS STRIX 580 could bring a huge improvement to your gaming experience. As well as being capable of dominating next-generation AAA games the Radeon graphics card boasts a thorough cooling system through Patented Wing-Blade IP5X-Certified Fans and MaxContact technology – keeping your GPU cool even during intense sessions. This VR ready Radeon RX 580 features Aura Sync for RGB LED personalising and Tweak II for intuitive performance tweaking. These are just a few of the multitude of features the RX 580 STRIX boasts, all of which help enhance your gaming experience.
STRIX Graphics Card Breakdown
RX 580 Heat Dissipation
Up to 30% Cooler and 3X Quieter Gaming Performance
New ROG Strix graphics are constructed with a 2.5-slot width, providing 40% more heat sink surface area for heat dissipation compared to previous 2-slot designs for dramatically cooler and quieter performance.
*Images for reference only.
ASUS MaxContact Tech
2X More Contact with GPU for Improved Thermal Transfer
MaxContact is an industry-first GPU cooling technology, featuring an enhanced copper heat spreader that directly contacts the GPU. MaxContact utilizes precision machining to provide a surface that makes up to 2X more contact with the GPU than traditional heat spreaders, resulting in improved thermal transfer.
STRIX 580 Patented Wing-Blade
Max Air Flow with 105% More Air Pressure
Patented wing-blade fans delivers maximum air flow and 105% greater static pressure over the heat sink, while operating at an up to 3X quieter volume than reference cards.
Silent RX 580 0dB Tech
Game in Complete Silence
Innovative 0dB technology stops the fan completely when the GPU temperature remains below a set level*, letting you enjoy light gaming in complete silence.
*55°C for ROG Strix RX 580
Dust Protected Radeon GPU
Longer Fan Lifespan
The fans in ROG Strix graphics cards are certified under the International Protection Marking (IP code) as IP5X dust resistant for improved reliability and a longer lifespan. This stringent certification process ensures ROG Strix graphics cards provide optimal fan performance, even under severe conditions.
Optimal System Cooling
ASUS FanConnect II features two 4-pin, hybrid-controlled headers that can be connected to both PWM and DC system fans for optimal system cooling. The connected fans reference both the GPU and CPU, operating automatically based on the one with the higher temperature. A comprehensive set of tuning options allow you to tune fan speeds for efficient cooling.
*Image for reference only. Actual PC layout may vary.
ASU Tweak II Tech
GPU Tweak II lets you easily set these ASUS FanConnect II modes
Auto mode: Chassis fan speeds reference GPU temperatures and operate based on the default factory setting.
Manual mode: Allows you to set a fixed speed for connected fans.
User-defined mode: Allows you to set chassis fans to reference either the CPU or GPU temperature to determine rotational speed. Additionally, a smart, automatic calibration routine senses the controllable range of connected fans and allows you to fine-tune speeds for efficient cooling and low noise.
Super Alloy Power II
7+1 Phase - Enhanced Durability and Efficiency
ASUS engineers have integrated premium alloy components into their graphics card designs to reinforce overall reliability. Super Alloy Power II components greatly enhance efficiency, reduce power loss and achieve thermal levels that are approximately 50% cooler than previous designs.
Customisable ASUS 580
ASUS Aura Sync - Outshine The Competition
Featuring Aura RGB Lighting on both the shroud and backplate, ROG Strix graphics cards are capable of displaying millions of colors and six different effects for a personalized gaming system. ROG Strix graphics cards also feature ASUS Aura Sync, RGB LED synchronization technology that enables complete gaming system personalization when the graphics card is paired with an Aura-enabled gaming motherboard.
*Images for reference only.
Top-End Radeon RX Quality
Industry-only 100% Automated Production Process
All ASUS graphics cards are now produced using Auto-Extreme Technology, an industry-exclusive, 100% automated production process that incorporates premium materials to set a new standard of quality. Auto-Extreme Technology ensures consistent graphics card quality as well as improved performance and longevity. Since the introduction of Auto-Extreme technology, reliability has improved by 30%. This new manufacturing process is also environmentally friendly, eliminating harsh chemicals and reducing power consumption by 50%.
|Chipset||Radeon RX 580|
|Edition||ROG STRIX GAMING TOP Edition|
|Manufacturing Process||14 nm|
|Boost Clock||1411 (1431 in OC Mode) MHz|
|Memory Speed (Effective with DDR)||8000 MHz|
|Memory Data Rate||8.0 Gb/s|
|Memory Bus||256 Bit|
|Peak Half Precision Compute Performance|
|Peak Single Precision Compute Performance|
|Cooling Solution||Tri Fan (3)|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 (8K UHD)|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|AMD CrossFire Support||2-Way CrossFire|
|AMD Freesync Support||Yes|
|AMD FreeSync Version||FreeSync™ 2|
|Microsoft DirectX Support||12 API|
|Low Profile Support||N/A|
|Graphics Card TDP/Power||185 W|
|Graphics Card Power Connectors||
|Minimum Recommended PSU||500 W|
|Maximum GPU Temperature|
